Wiring Diagrams

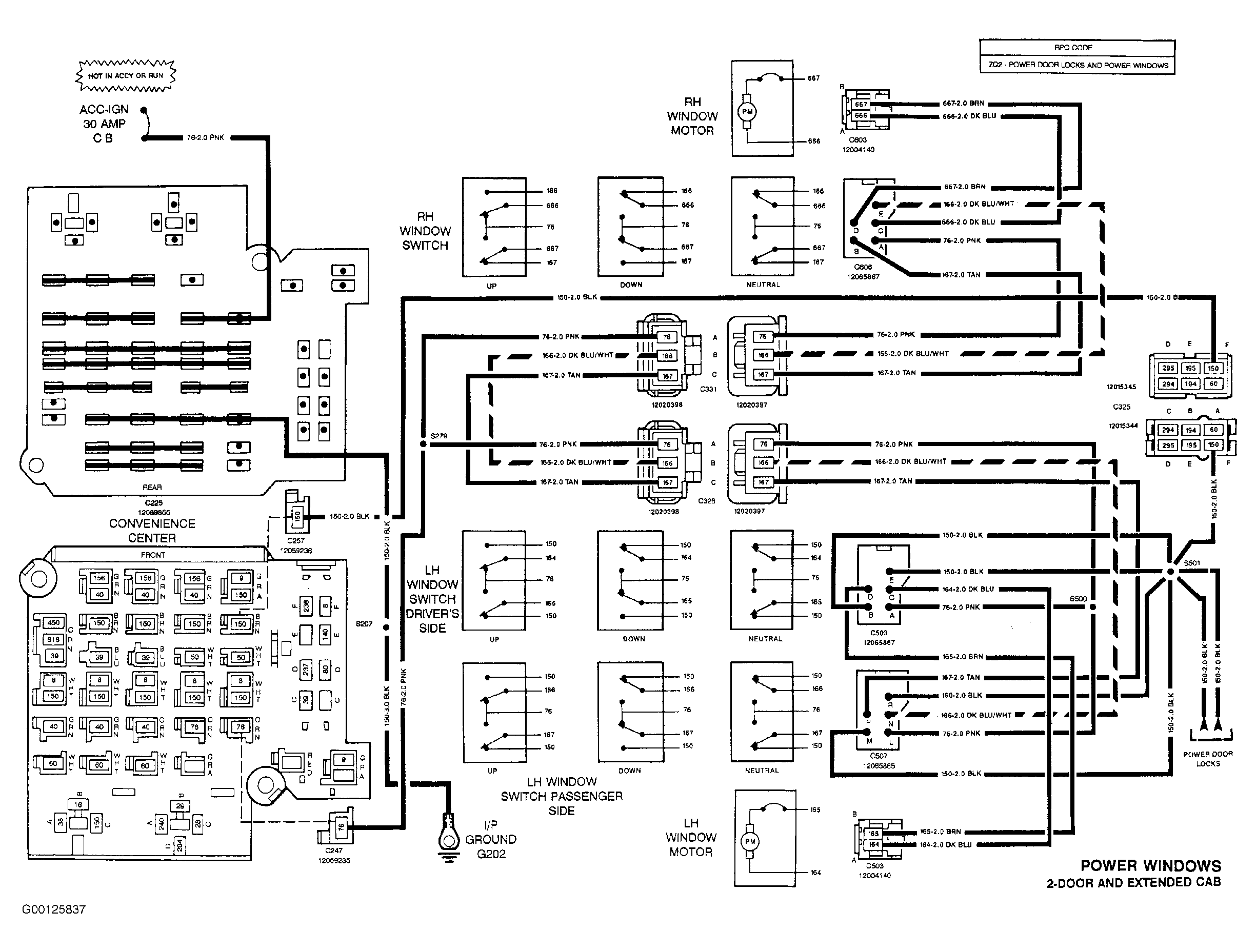

Fig 1: Extended Cab & 2-Door Pickup Power Window Wiring Diagram (1993)
G00125837Courtesy of GENERAL MOTORS CORP.

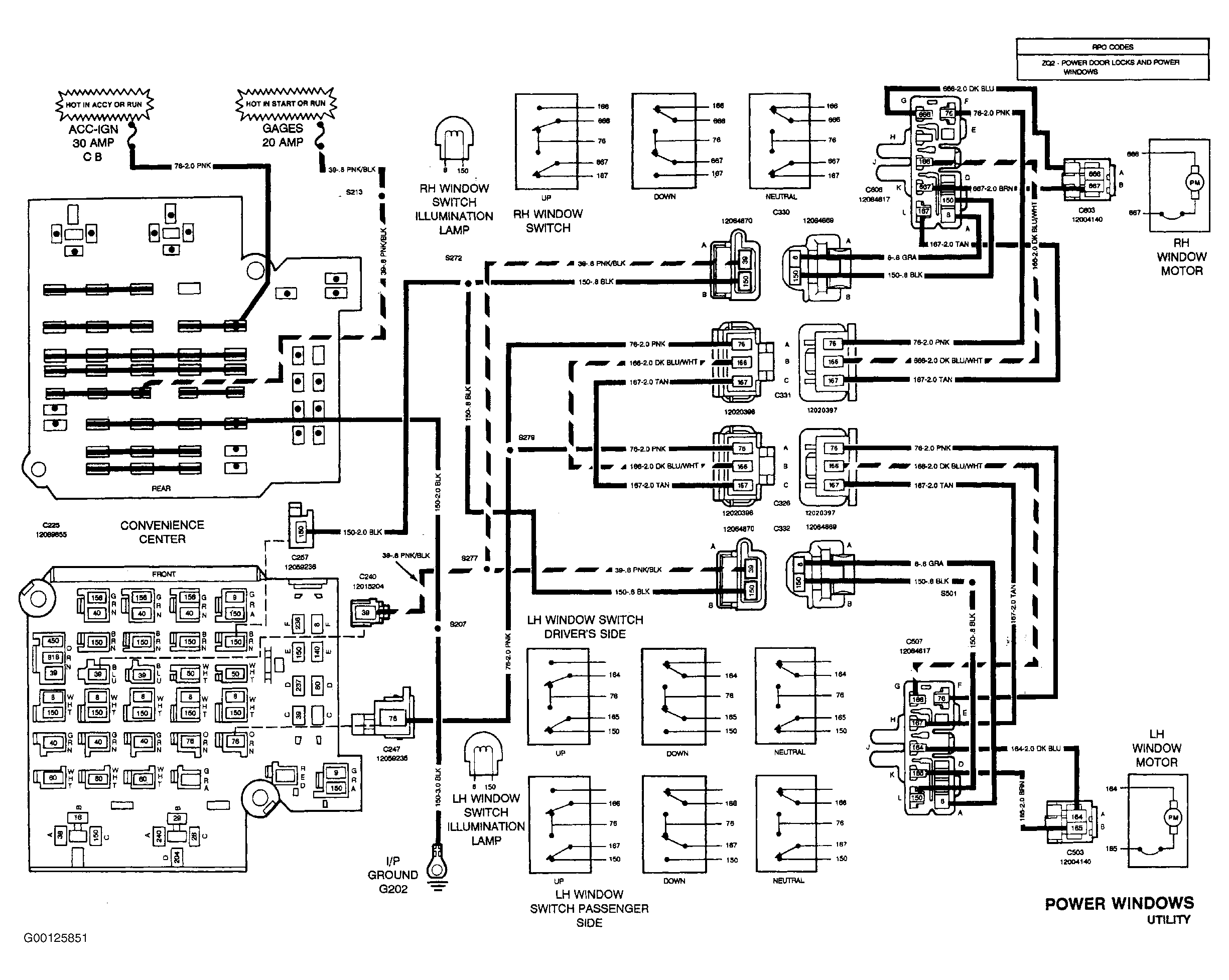

Fig 2: Utility Power Window Wiring Diagram (1993)
G00125851Courtesy of GENERAL MOTORS CORP.

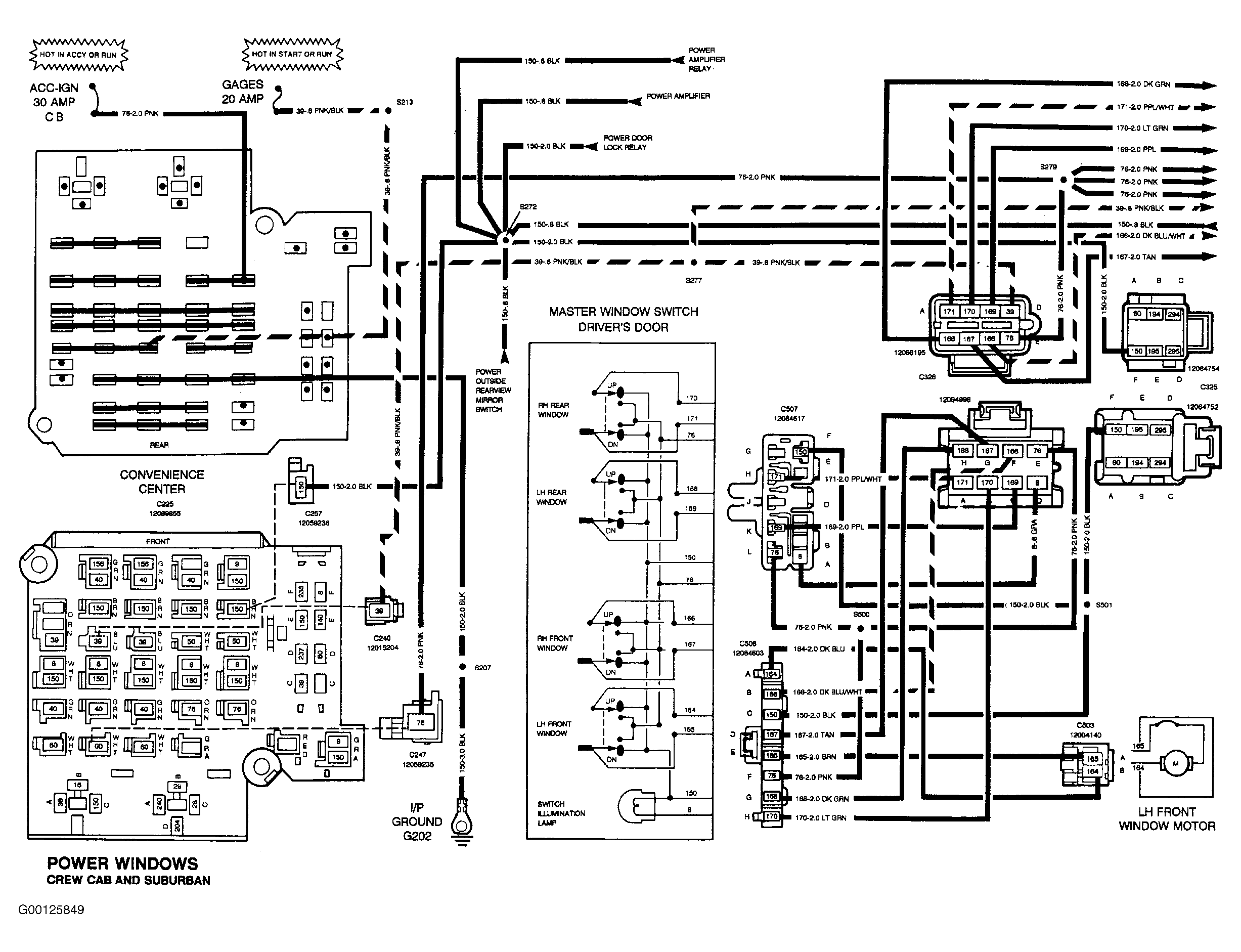

Fig 3: Crew Cab & Suburban Power Window Wiring Diagram (1993, 1 Of 2)
G00125849Courtesy of GENERAL MOTORS CORP.

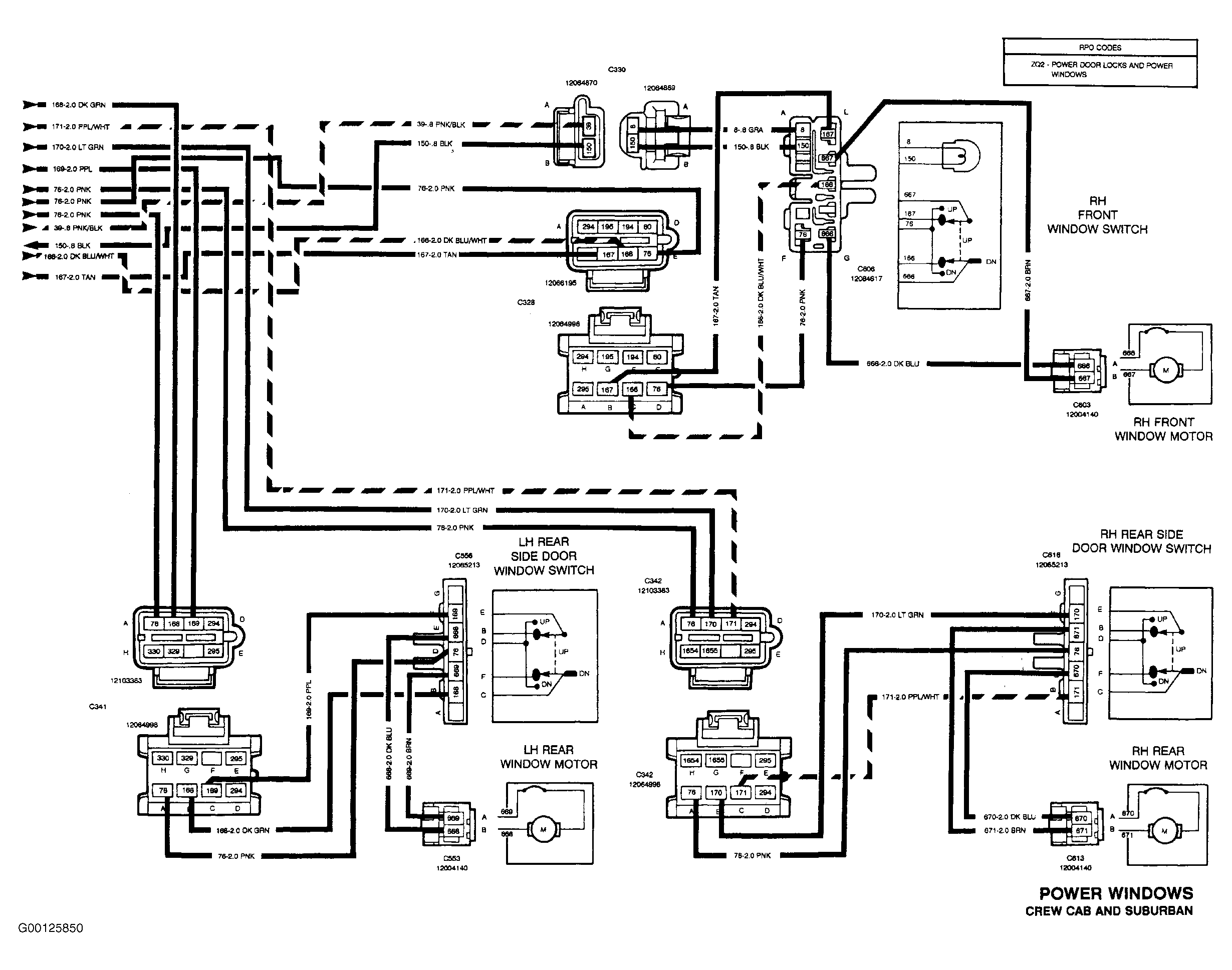

Fig 4: Crew Cab & Suburban Power Window Wiring Diagram (1993, 2 Of 2)
G00125850Courtesy of GENERAL MOTORS CORP.

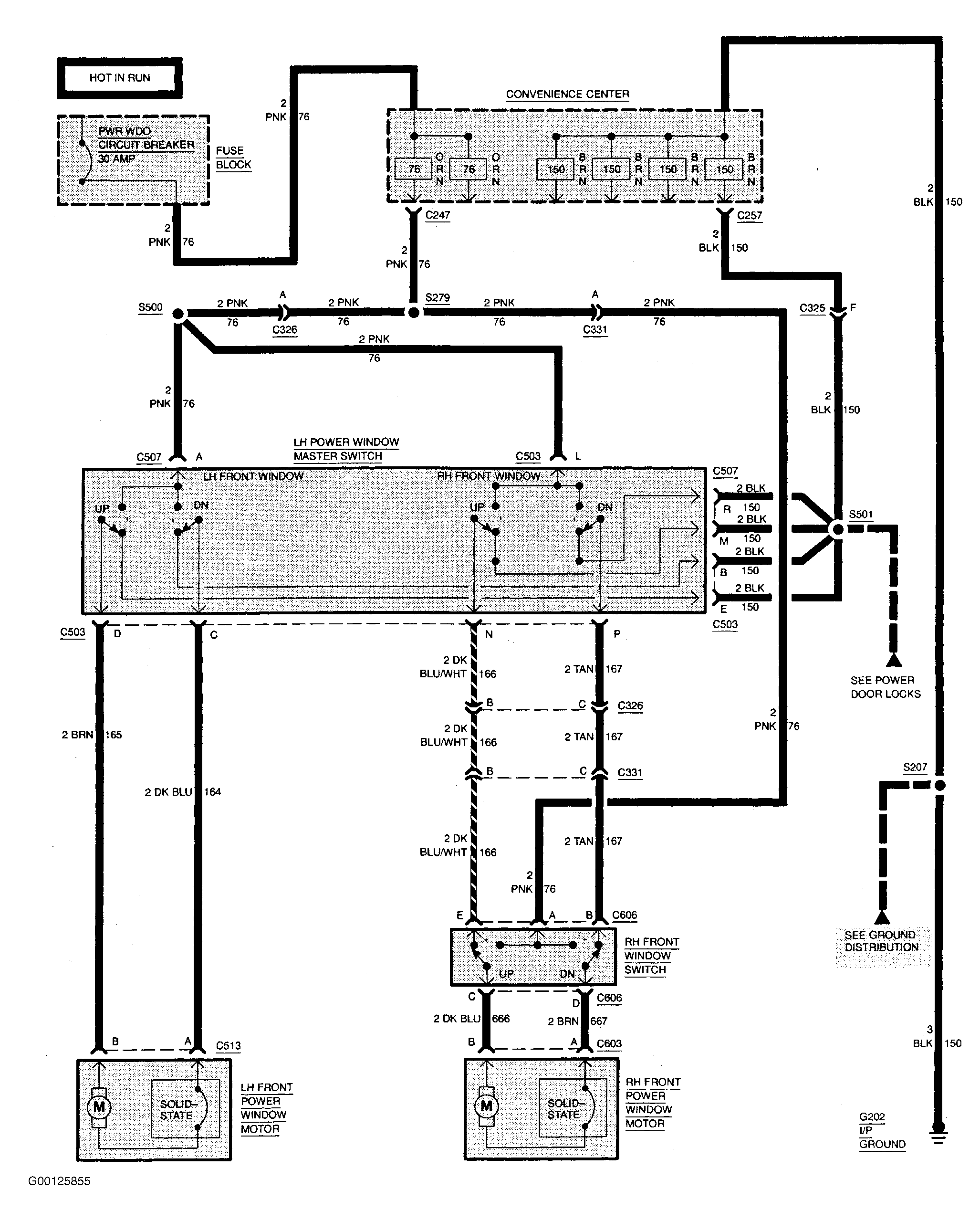

Fig 5: 2-Door Pickup Power Window Wiring Diagram (1994)
G00125855Courtesy of GENERAL MOTORS CORP.

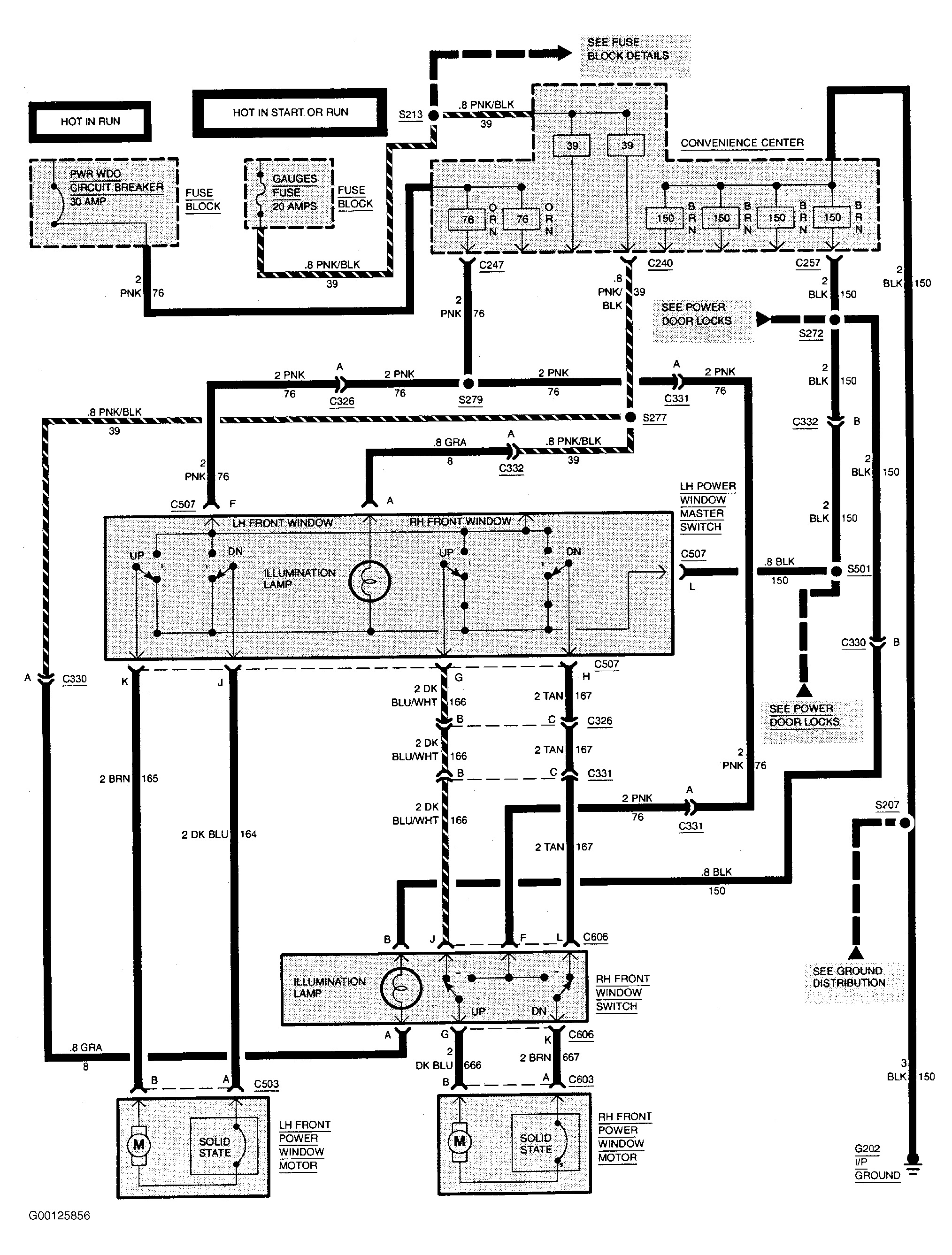

Fig 6: Utility Power Window Wiring Diagram (1994)
G00125856Courtesy of GENERAL MOTORS CORP.

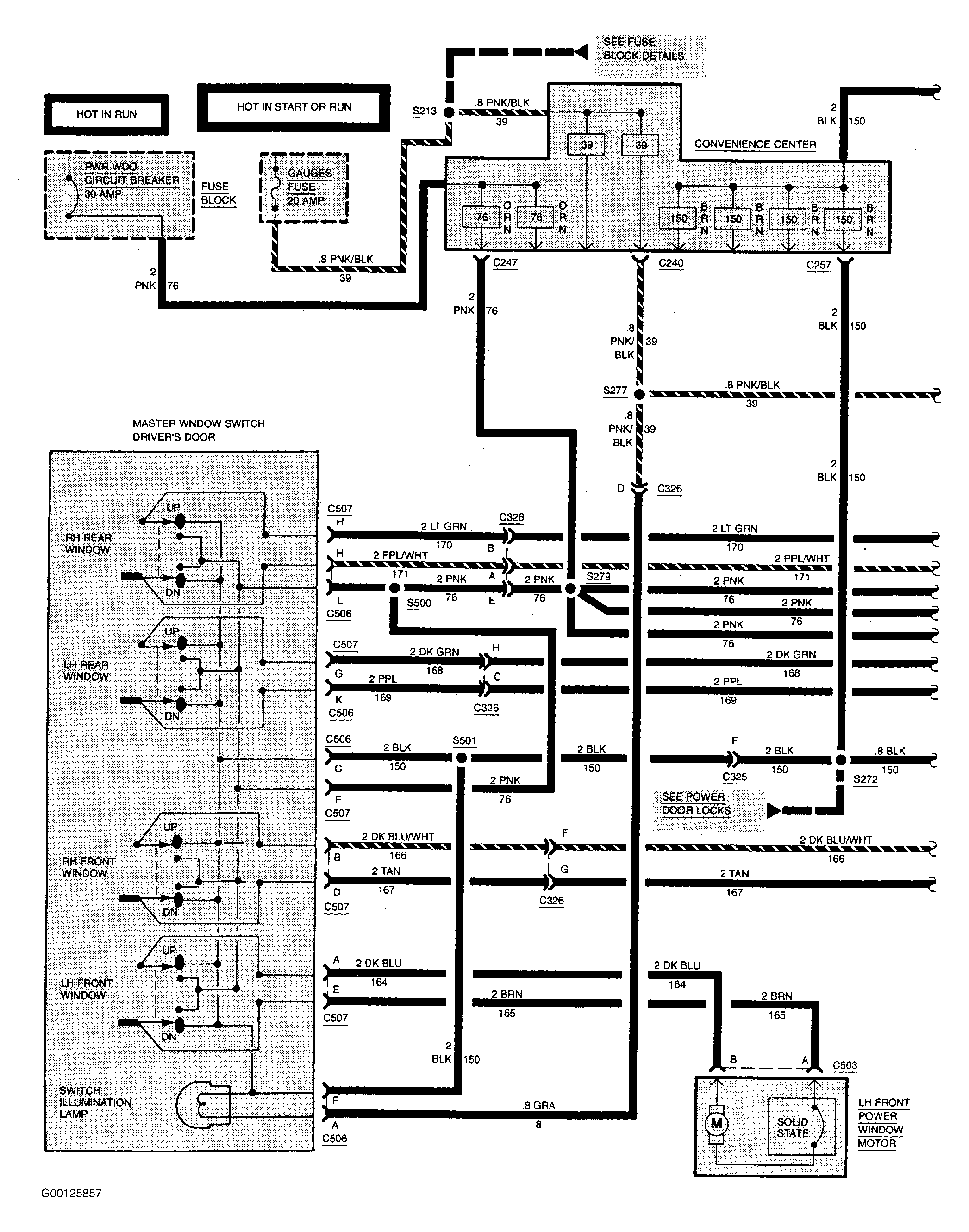

Fig 7: Crew Cab & Suburban Power Window Wiring Diagram (1994, 1 Of 2)
G00125857Courtesy of GENERAL MOTORS CORP.

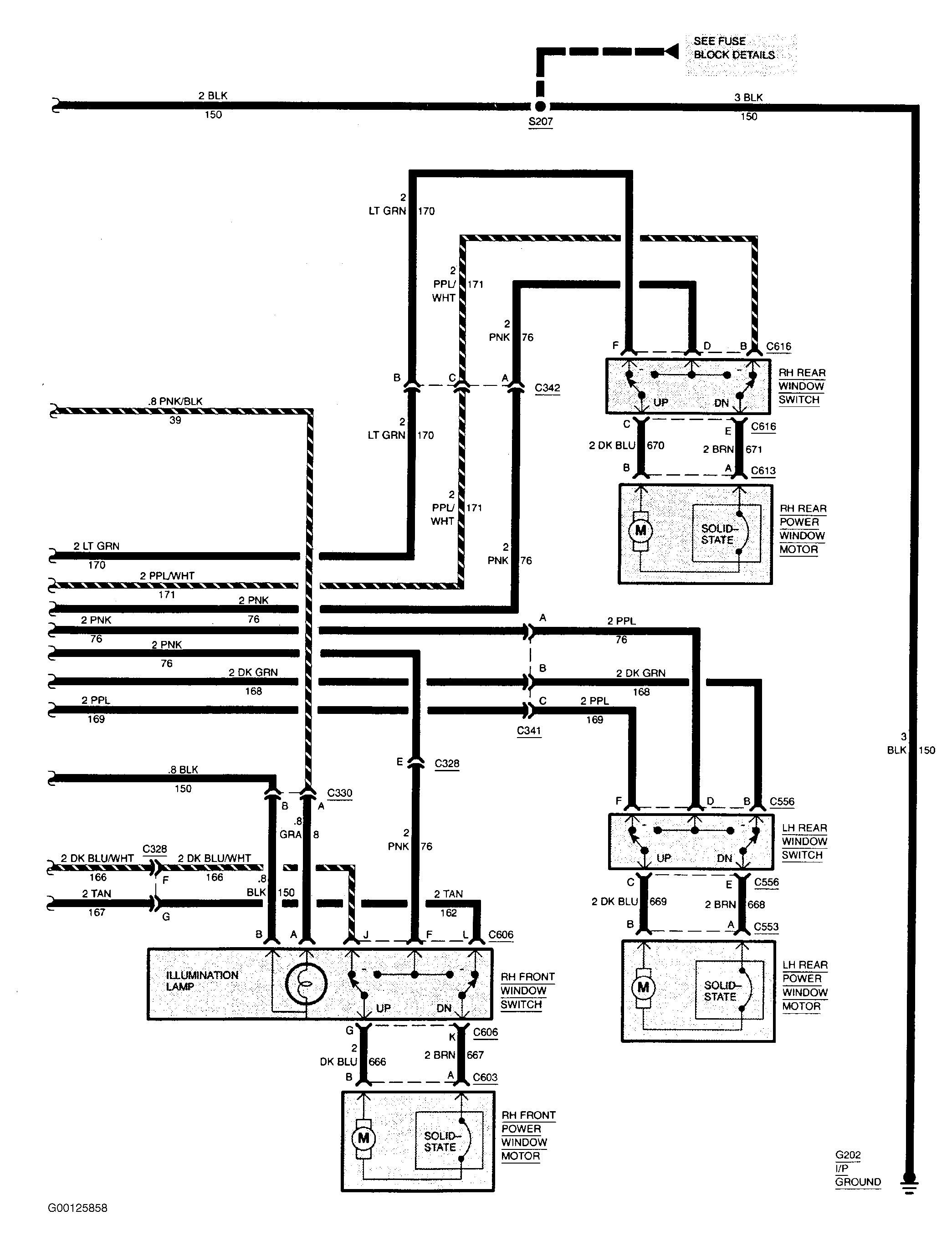

Fig 8: Crew Cab & Suburban Power Window Wiring Diagram (1994, 2 Of 2)
G00125858Courtesy of GENERAL MOTORS CORP.
