Power Mirror System
>>
Connector Identification
Connector Identification

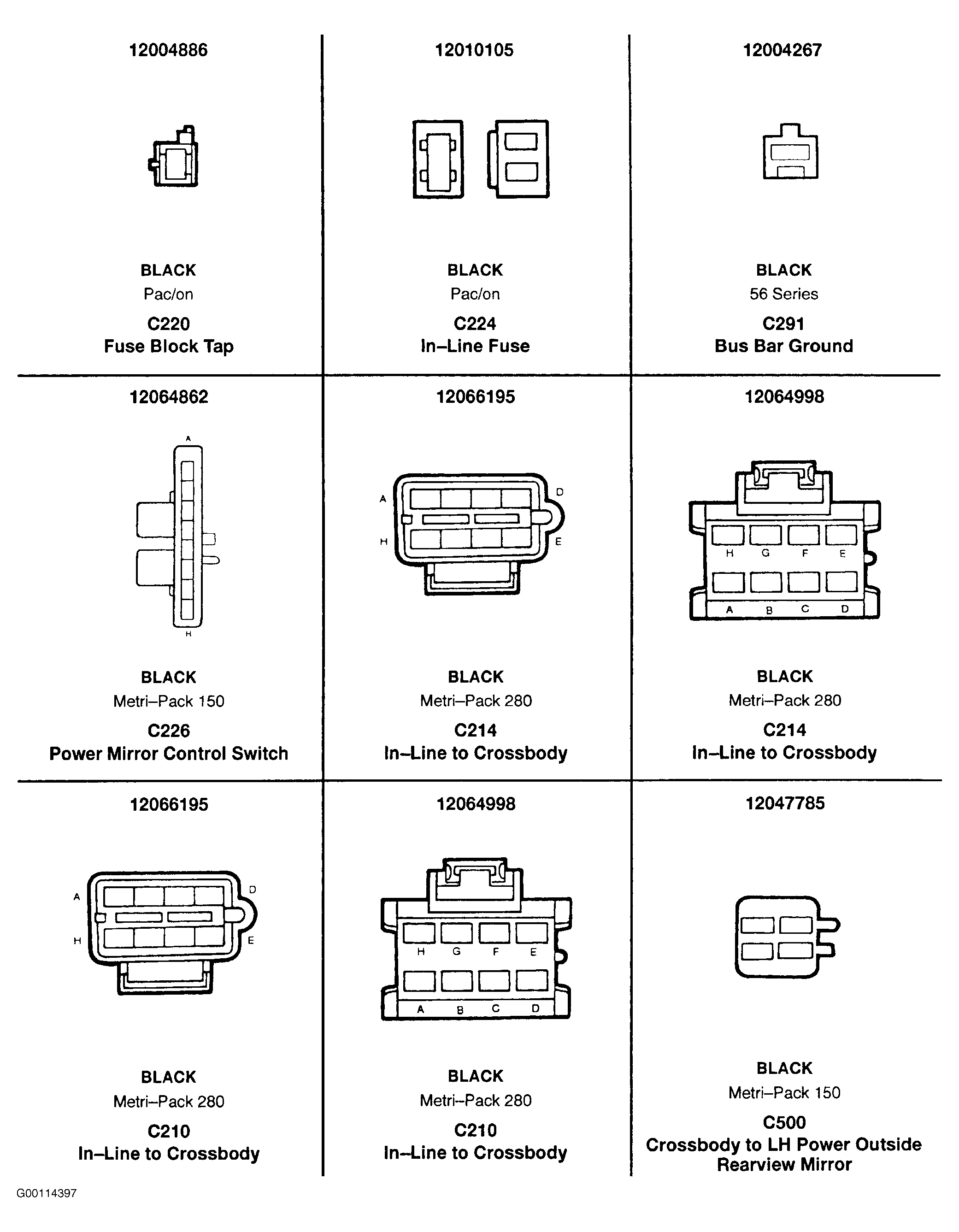

Fig 1: Power Mirror Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Power Mirror Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
