EXPERTEC TSB (51-65-19)

Publication date: 1995-03-31
Reference number: 51-65-19

EXPERTEC TSB

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 51-65-19, Date of Issue:  03/31/95

SMU - SECTION 3A CONTROL - MODULE SYSTEM (PCM)

Model(s): 1994 CHEVROLET AND GMC TRUCK S/T, M/L, C/K MODELS WITH 4.3L ENGINE (VINS W, Z - RPOS L35, LB4)

Bulletin No.: GMC 51-65-19

Date: 03/31/1995

SERVICE INFORMATION

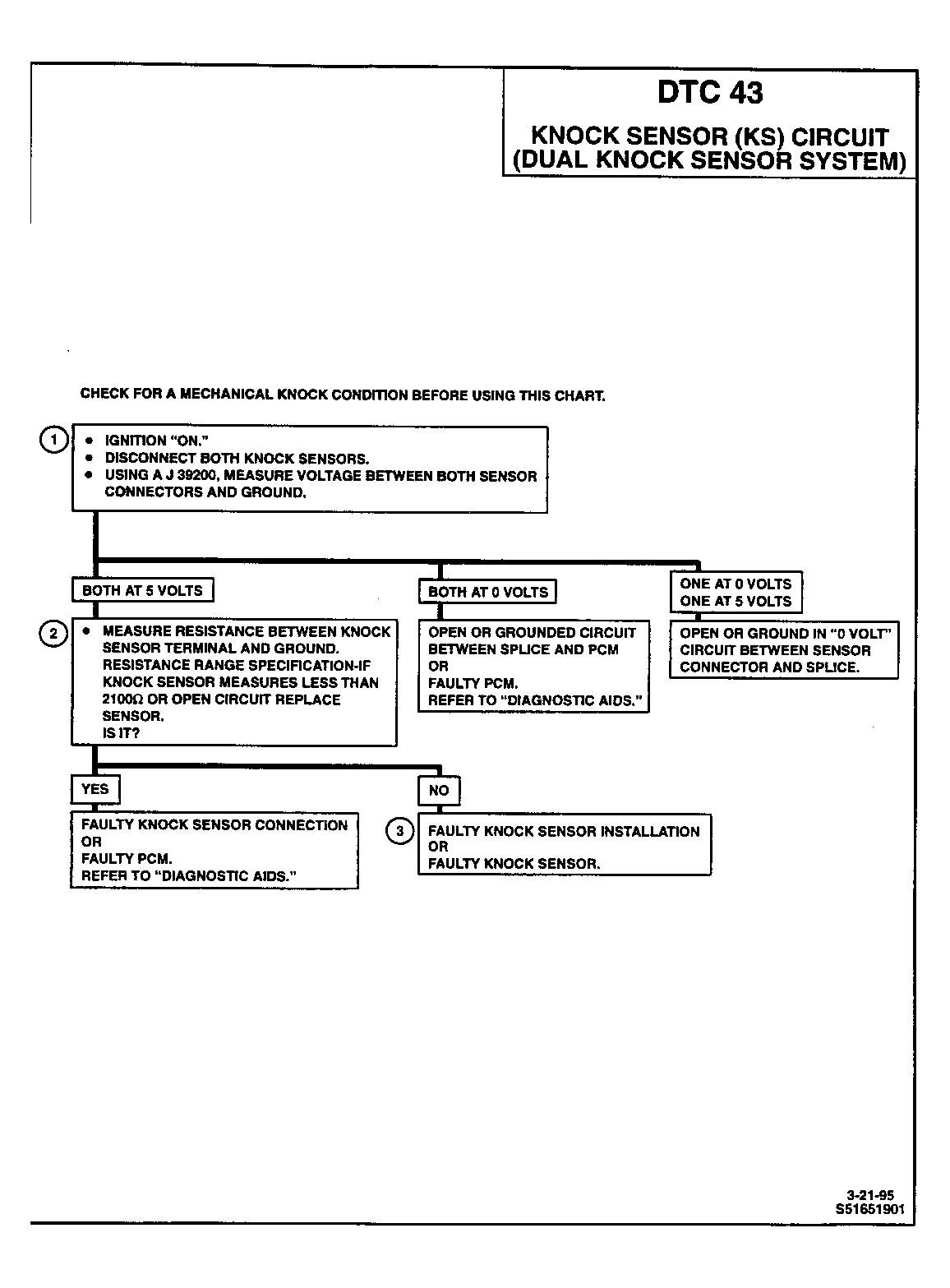

This bulletin advises of a revision to the DTC 43 Knock Sensor (KS) Circuit (Dual Knock Sensor System) chart in the following service manuals:

BULLETIN ILLUSTRATION LIST

Fig 1: Graphic
GE00W012004
