Test A: Power Mirrors Do Not Operate
Test A: Power Mirrors Do Not Operate
To perform test, see
Fig 1
.

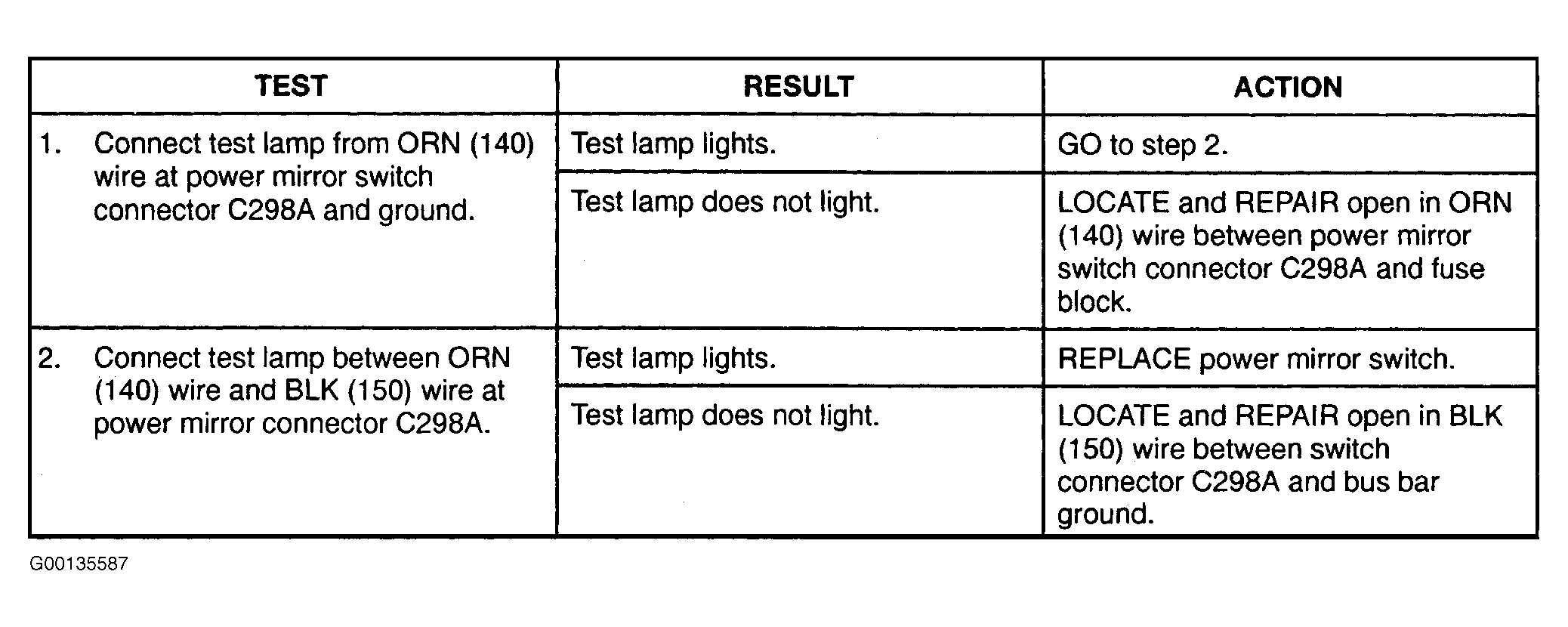

Fig 1: Power Mirrors Do Not Operate
Courtesy of GENERAL MOTORS CORP.
