EXPERTEC TSB (477107)

WARNING: This page is about the Forward Control 4.3 Z, Automatic, which is a different variant/trim than selected.

Publication date: 1994-05-12
Reference number: 477107

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 477107, Date of Issue: 05/12/94

Chevrolet 477107

GMC 477107

05/12/1994

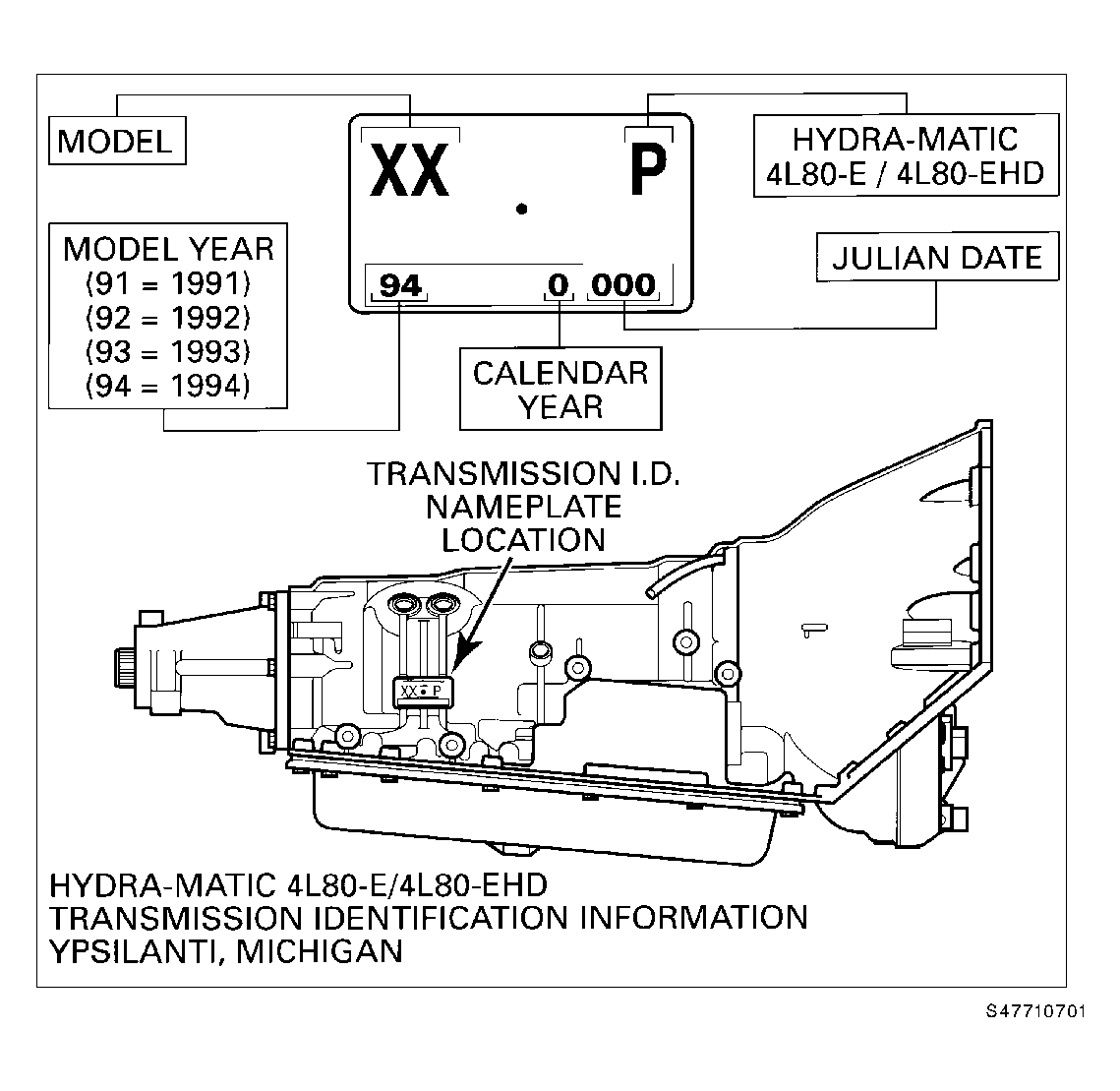

Fig 1: Graphic

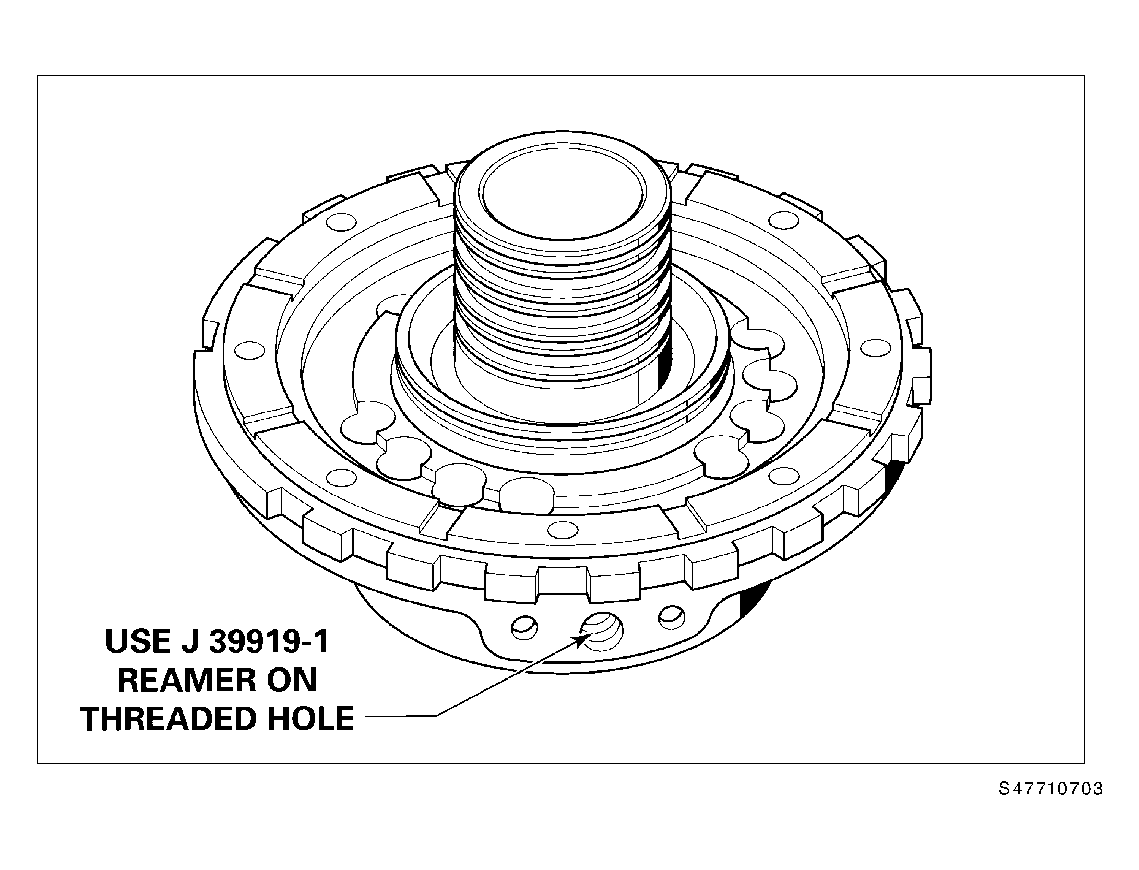

Fig 2: Graphic

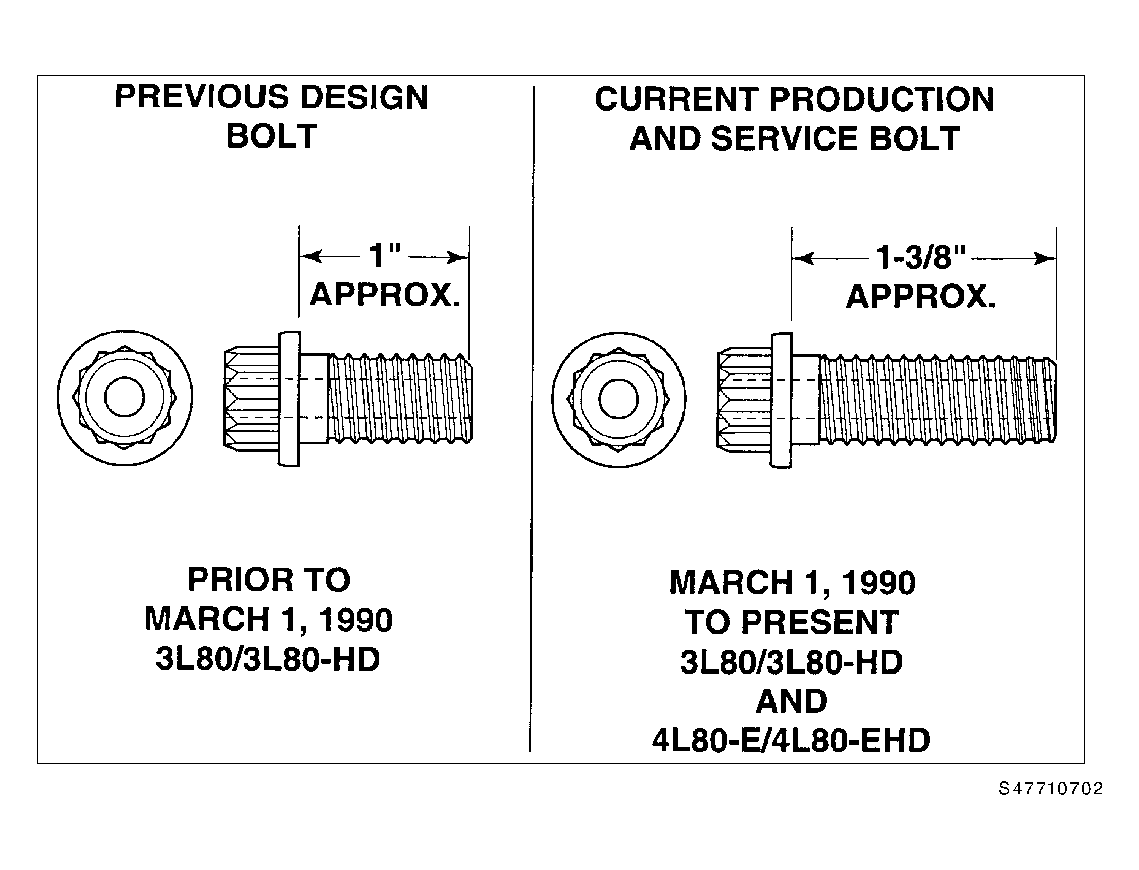

Fig 3: Graphic

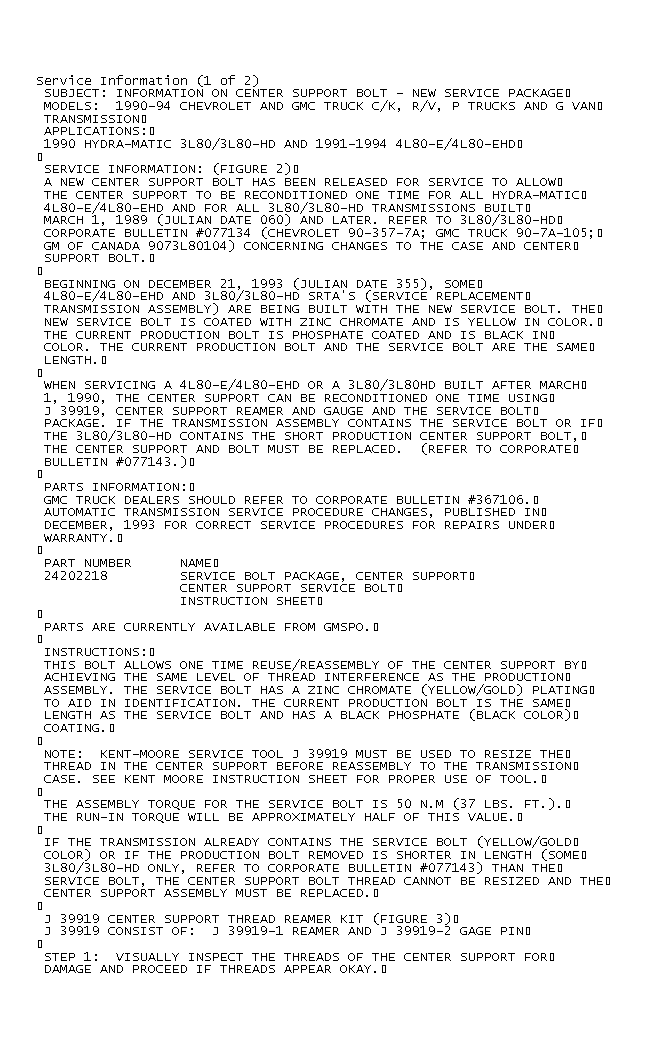

Fig 4: Service Information (1 of 2)

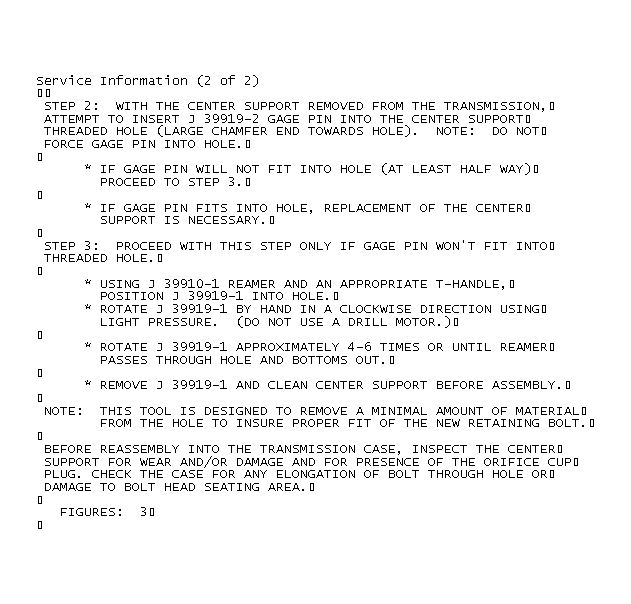

Fig 5: Service Information (2 of 2)
