Diagnostic Aids

Check for the SET/COAST switch stuck in the engage position or for a short to voltage in the set/coast request signal circuit.

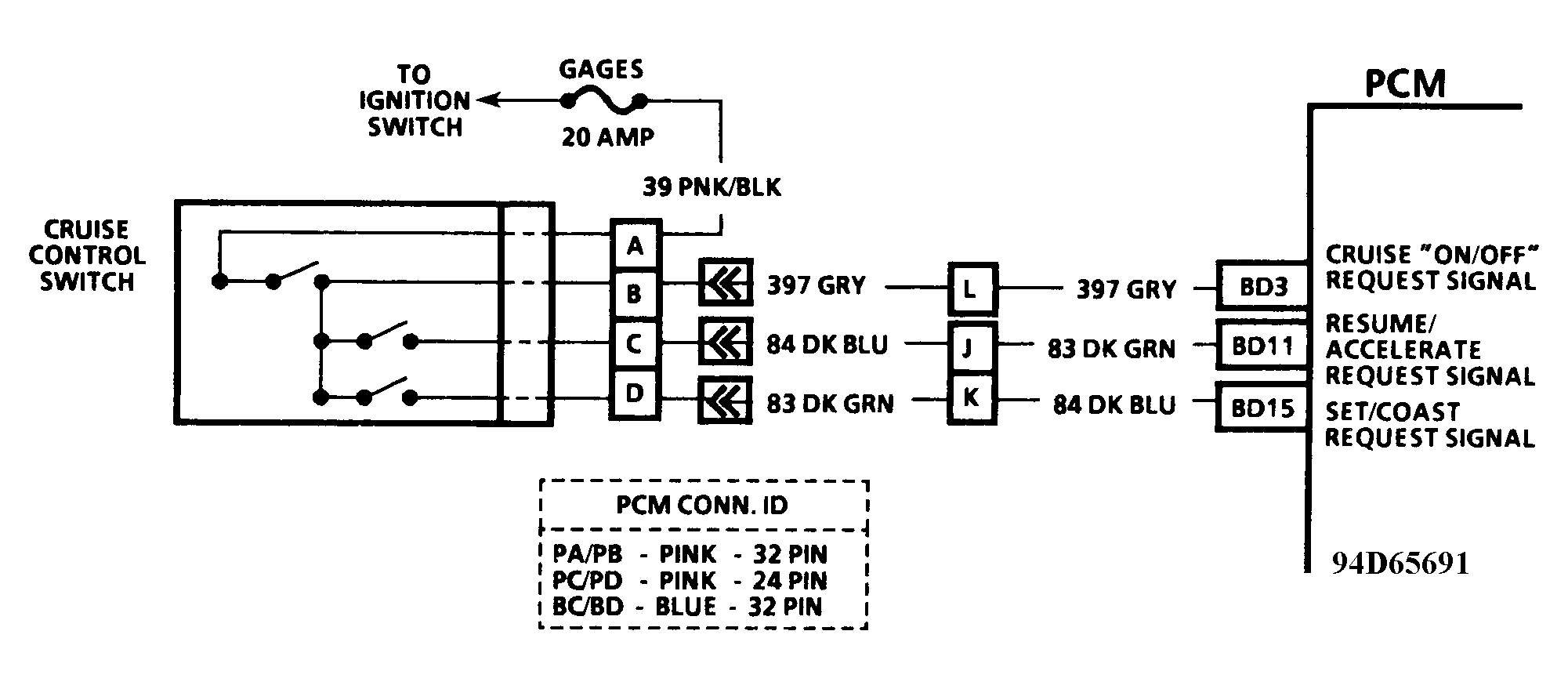

Fig 1: DTC 71 Schematic ("G" Series) Set/Coast Switch Fault

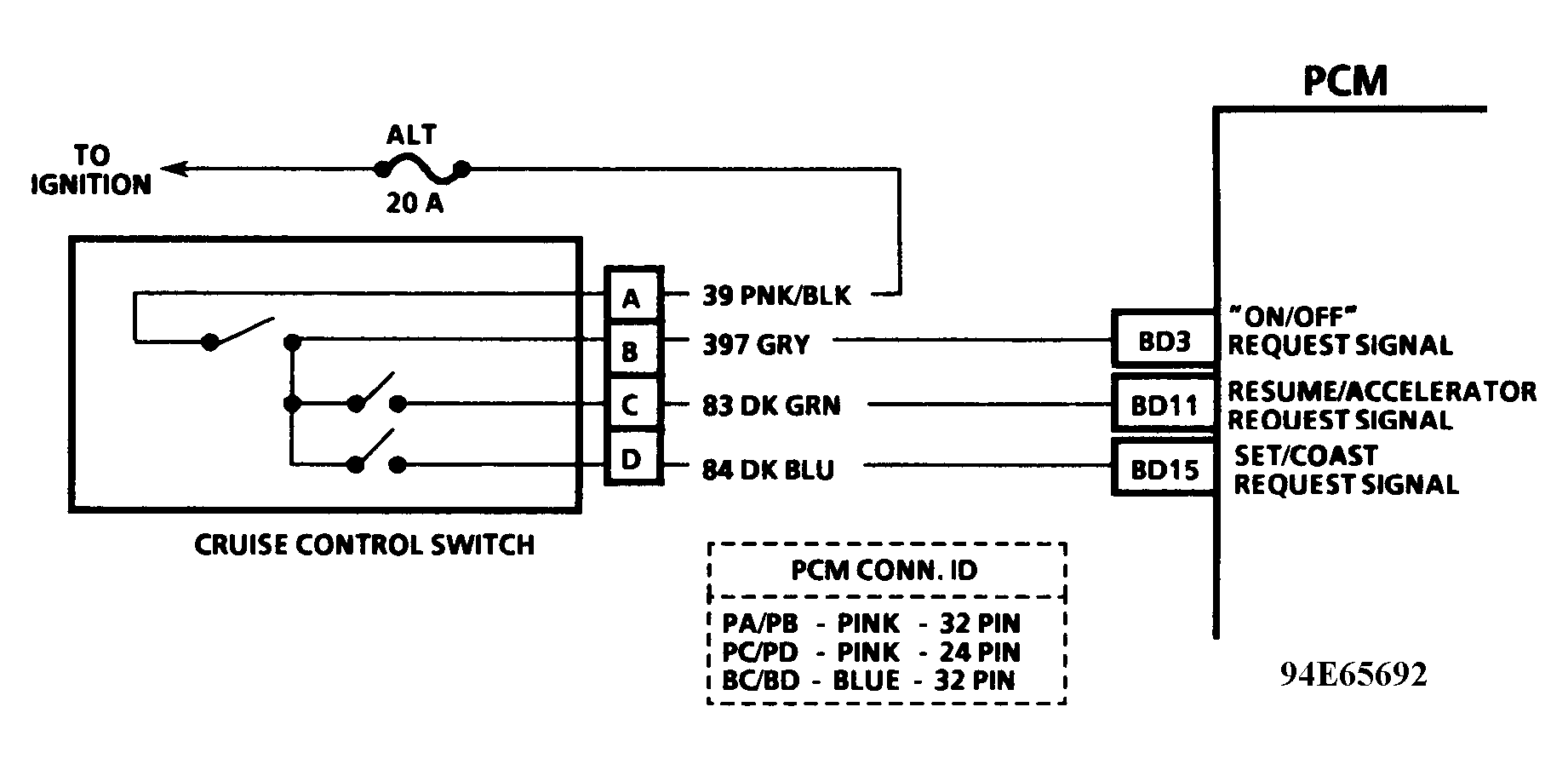

Fig 2: DTC 71 Schematic ("P" Series) Set/Coast Switch Fault

Fig 3: DTC 71 Flow Chart ("G" & "P" Series) Set/Coast Switch Fault
