Diagnostic Aids

The injection pulse width will fluctuate slightly when throttle is depressed. A weak (mechanical failure) fuel solenoid will cause DTC 36 to set.

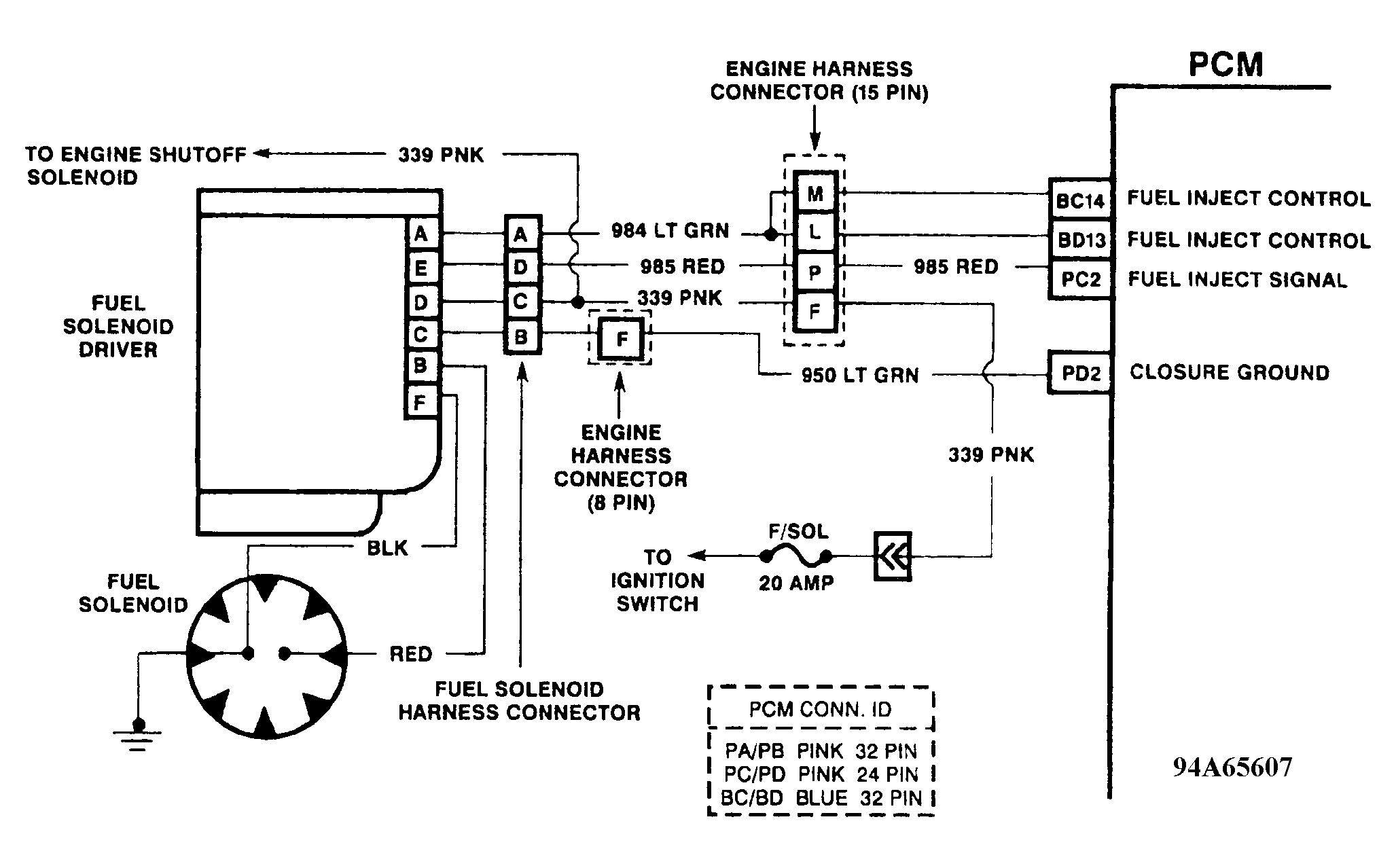

Fig 1: DTC 36 Schematic ("G" Series) Injection Pulse Width Error (Response Time Long)

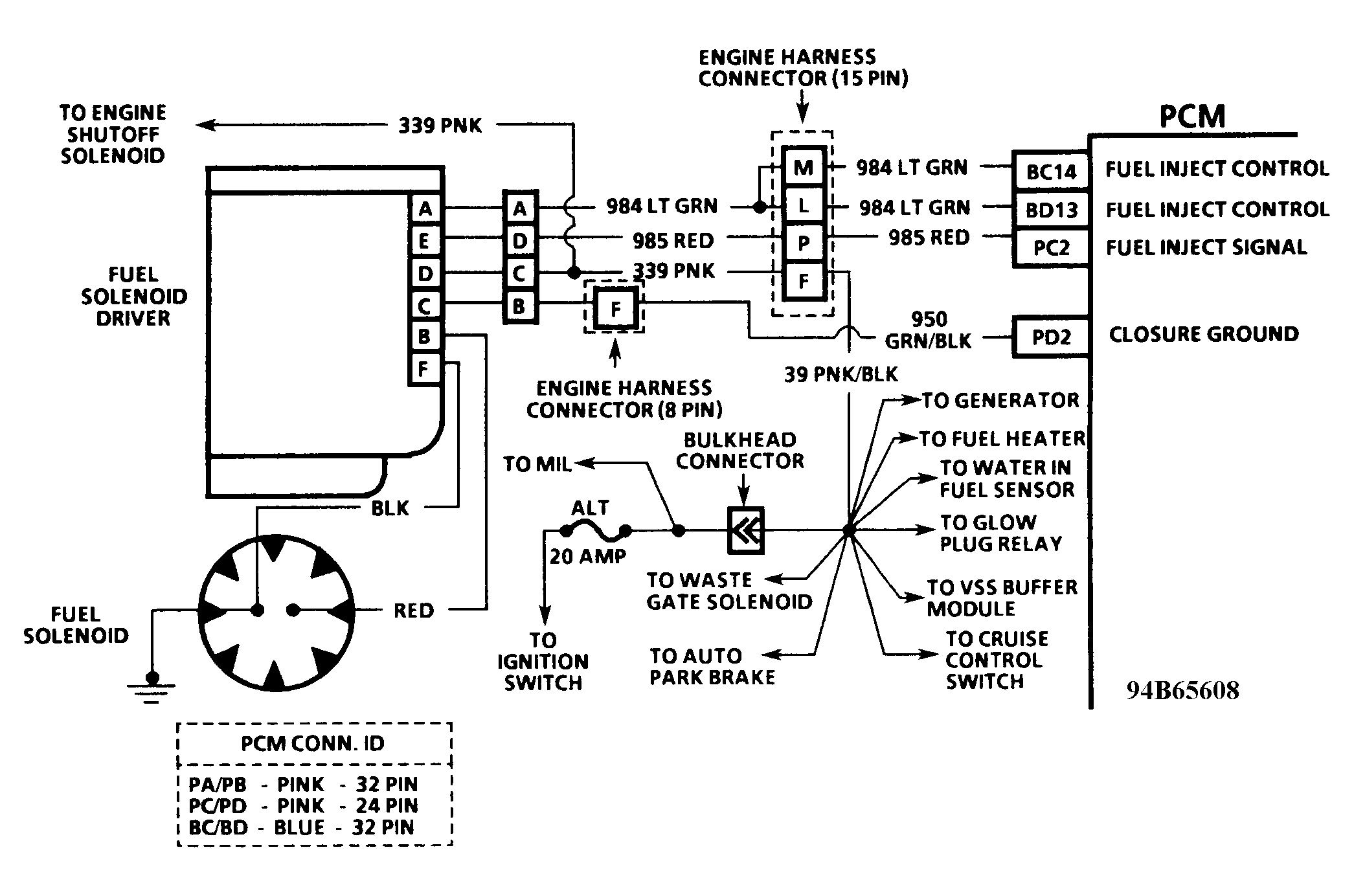

Fig 2: DTC 36 Schematic ("P" Series) Injection Pulse Width Error (Response Time Long)

Fig 3: DTC 36 Flow Chart ("G" & "P" Series) Injection Pulse Width Error (Response Time Long)
