Connector Identification

For harness connector end views, see Fig 1 and Fig 2.

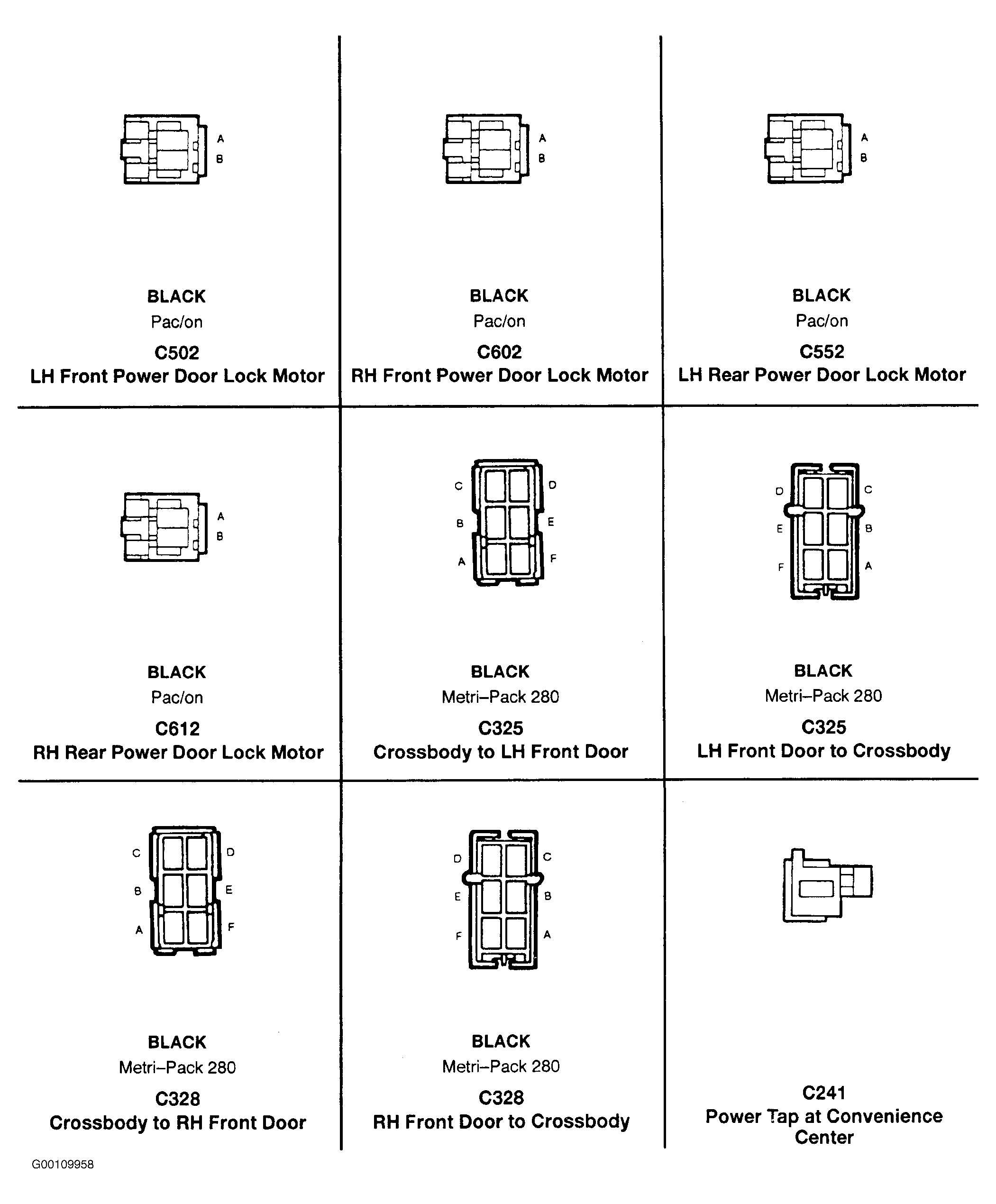

Fig 1: Power Door Lock Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

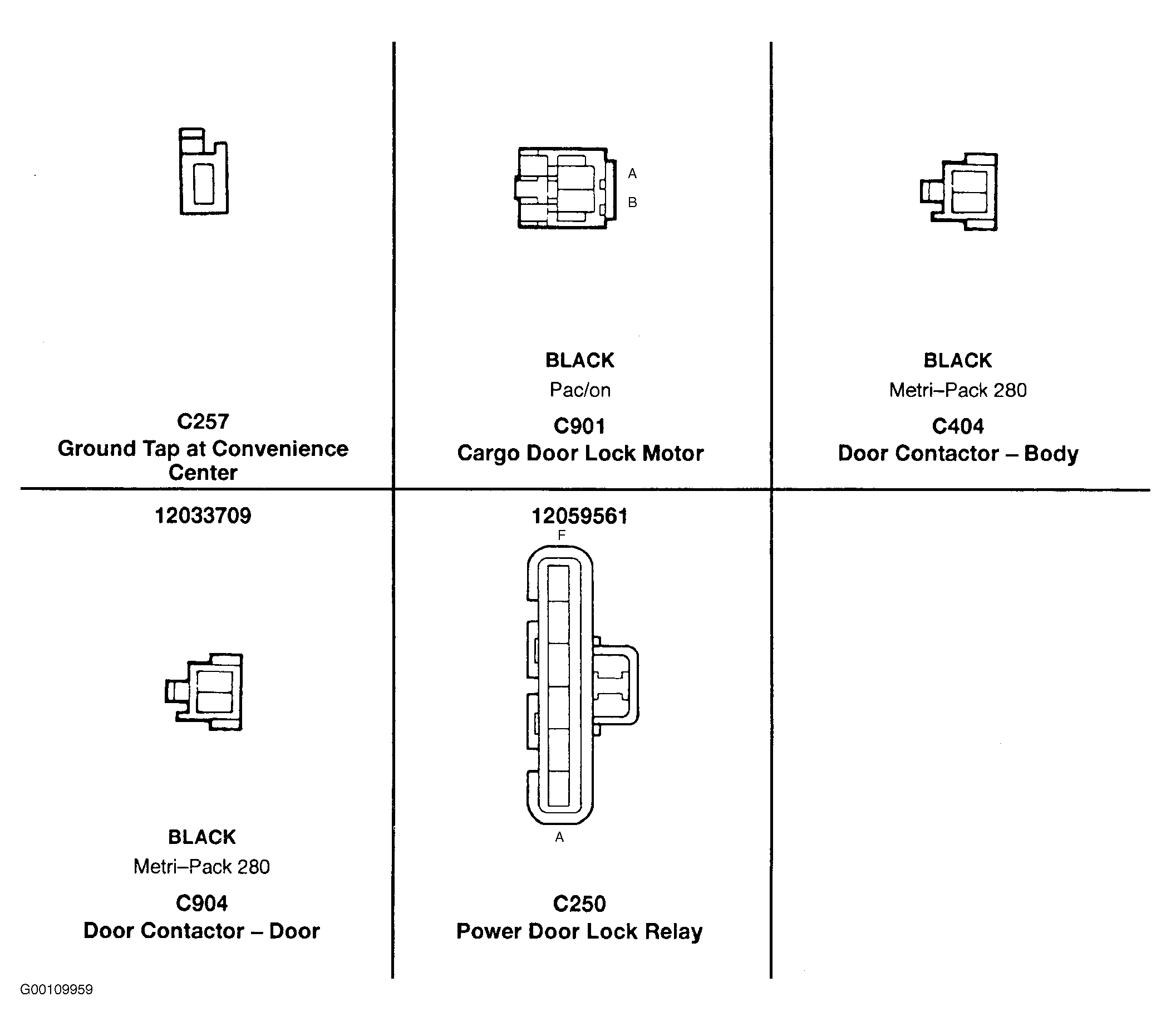

Fig 2: Power Door Lock Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
