Component Locations

COMPONENT LOCATIONS

Component Location
Convenience Center Under Left Side Of Instrument Panel. See Fig 2.
Door Lock Relay Under Instrument Panel, Right Side Of Brake Pedal Bracket. See Fig 2.
Door Lock Motor, Cargo Door Inside Rear Cargo Door. See Fig 1.
Door Lock Motor, Left Front Inside Door.
Door Lock Motor, Right Front Inside Door.
Door Lock Motor, Right Rear Inside Door. See Fig 4.
Door Lock Motor, Left Rear Inside Door. See Fig 4.
Door Lock Switch, Left Front On Door Trim Panel.
Door Lock Switch, Right Front On Door Trim Panel.
Fuse Block Behind Cover In Dash, To Left Of Steering Column.
C237 Left Body Hinge Pillar. See Fig 5.
C241 Convenience Center. See Fig 2.
C257 Convenience Center. See Fig 2.
C325 Left Body Hinge Pillar. See Fig 2.
C328 Right Body Hinge Pillar. See Fig 2.
C341 Left Center Pillar. See Fig 4.
C342 Right Center Pillar. See Fig 4.
C404 Right Rear Body Pillar. See Fig 6.
C904 Rear Cargo Door Contact. See Fig 1.
G202 At DLC Connector. See Fig 7.
S207 Under Left Side Of Instrument Panel. See Fig 8.
S272 Power Window & Door Locks Harness, Near Convenience Center Leads. See Fig 2.
S278 Power Window & Door Locks Harness, Near Convenience Center Leads. See Fig 2.
S280 Power Window & Door Locks Harness, Near Convenience Center Leads. See Fig 2.
S281 Power Window & Door Locks Harness, Near Door Lock Relay. See Fig 2.
S282 Power Window & Door Locks Harness, Near Door Lock Relay. See Fig 2.
S283 Power Window & Door Locks Harness, Near Door Lock Relay. See Fig 2.
S501 Power Window & Door Locks Harness Left Front Door, Near Power Window Motor Lead. See Fig 3.
S600 Power Window & Door Locks Harness Right Front Door, Near Power Window Motor Lead. See Fig 3.
S601 Power Window & Door Locks Harness Right Front Door, Near Power Window Motor Lead. See Fig 3.

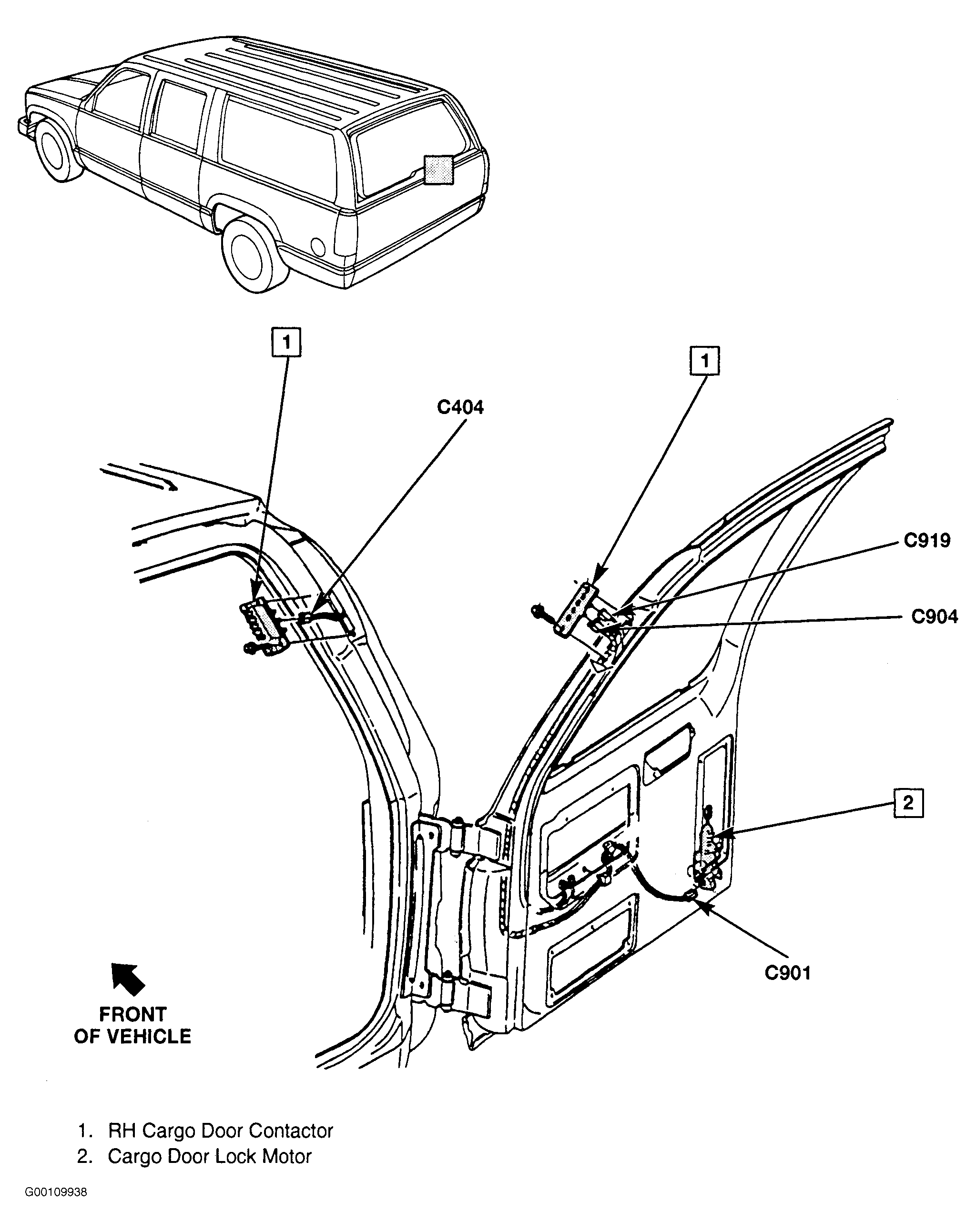

Fig 1: Locating Cargo Door Lock Motor (Suburban)
G00109938Courtesy of HYUNDAI MOTOR CO.

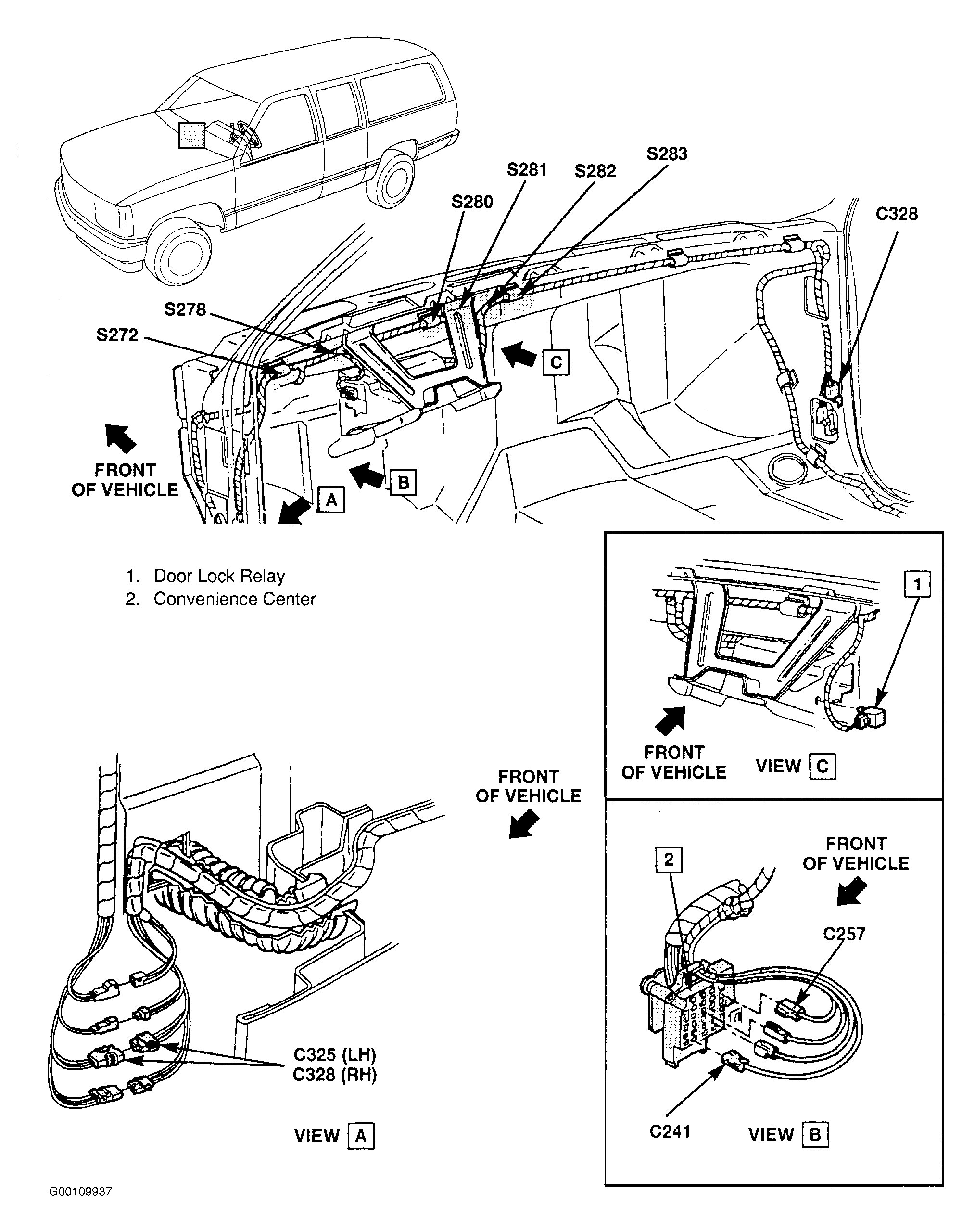

Fig 2: Locating Convenience Center & Door Lock Relay (Suburban Shown; Pickup & Utility Are Similar)
G00109937Courtesy of HYUNDAI MOTOR CO.
Fig 3: Locating Driver's Door Wiring Components
G00108577Courtesy of GENERAL MOTORS CORP.
Fig 4: Locating Rear Side Door Components
G00108579Courtesy of GENERAL MOTORS CORP.

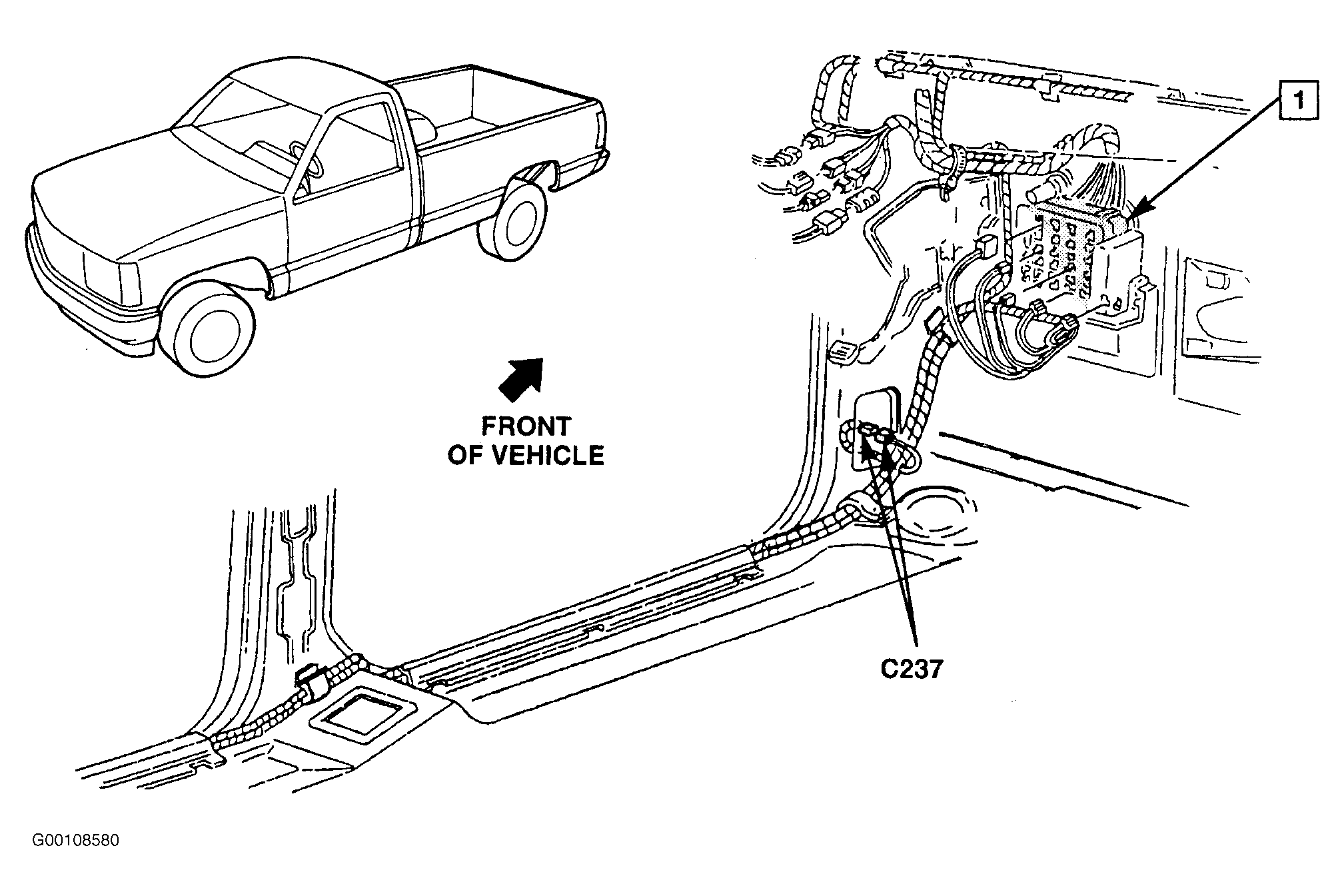

Fig 5: Locating Connector C237 In Front Body Wiring
G00108580Courtesy of GENERAL MOTORS CORP.

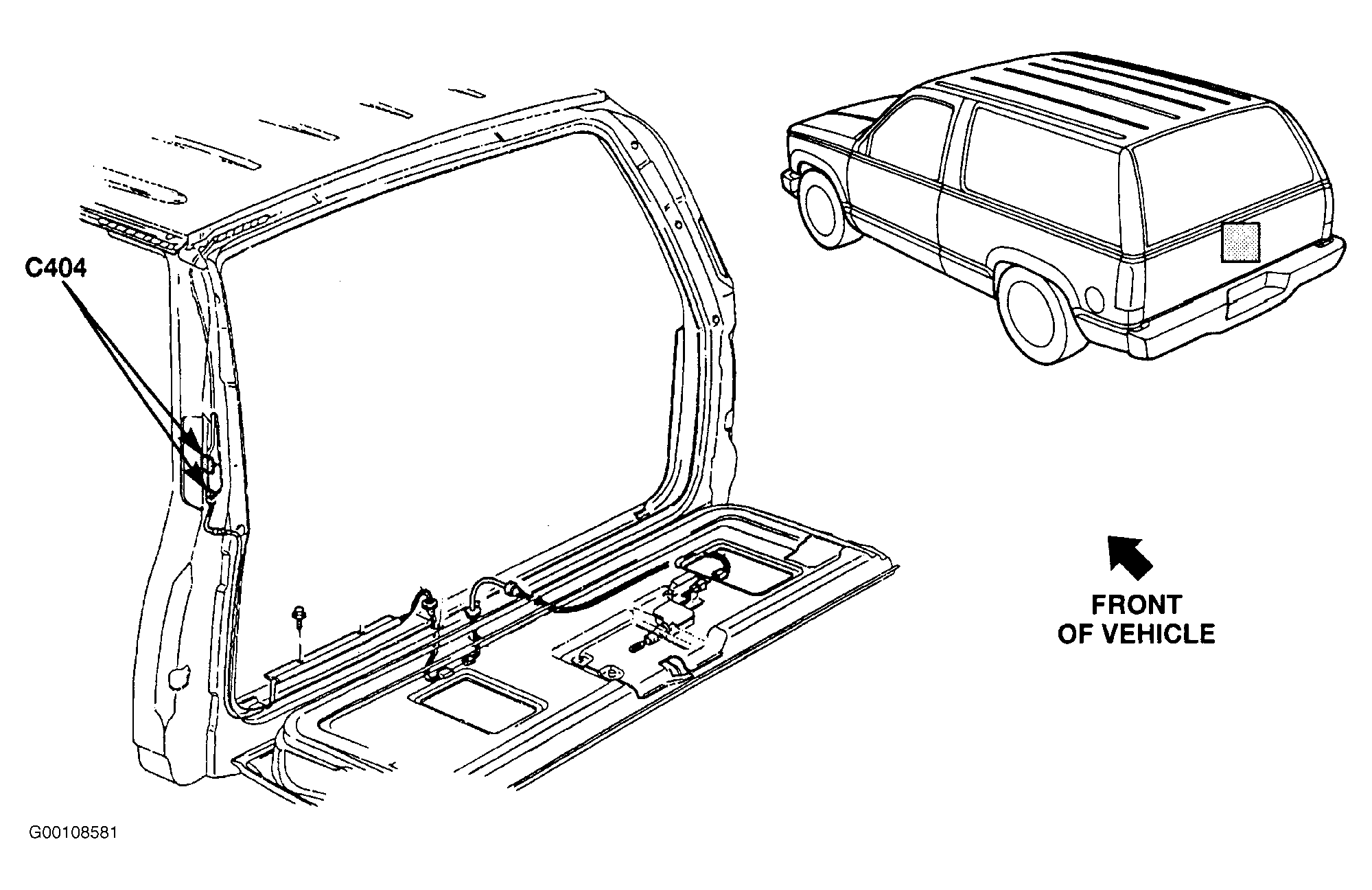

Fig 6: Locating Connector C404 In Rear Window Release Wiring
G00108581Courtesy of GENERAL MOTORS CORP.

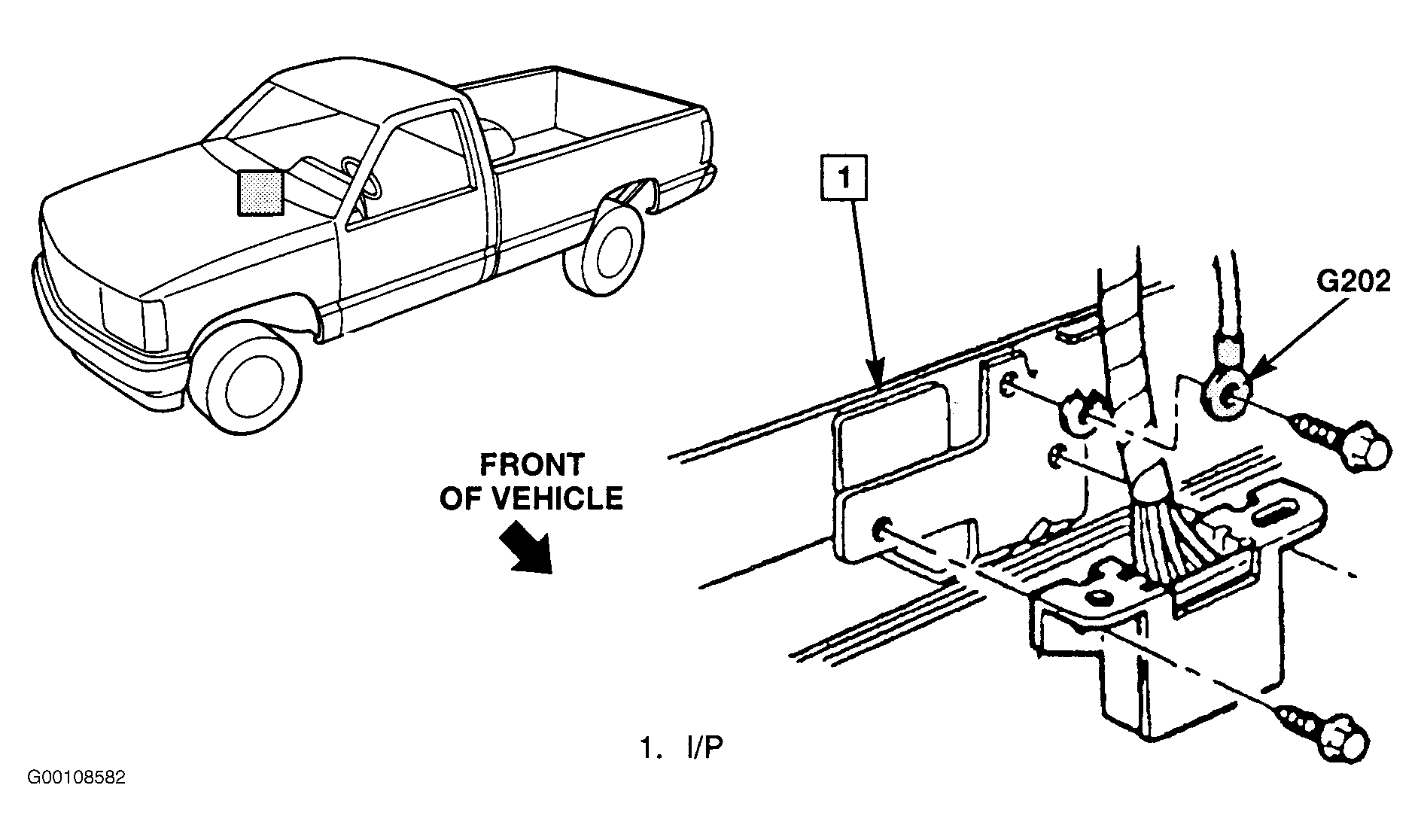

Fig 7: Locating Ground G202 In Instrument Panel Wiring
G00108582Courtesy of GENERAL MOTORS CORP.
Fig 8: Locating Splice S207 In Left Side Of Instrument Panel
G00108583Courtesy of GENERAL MOTORS CORP.
