Door Module: Removal
- Remove door trim panel. See DOOR TRIM PANEL . Lower window all the way

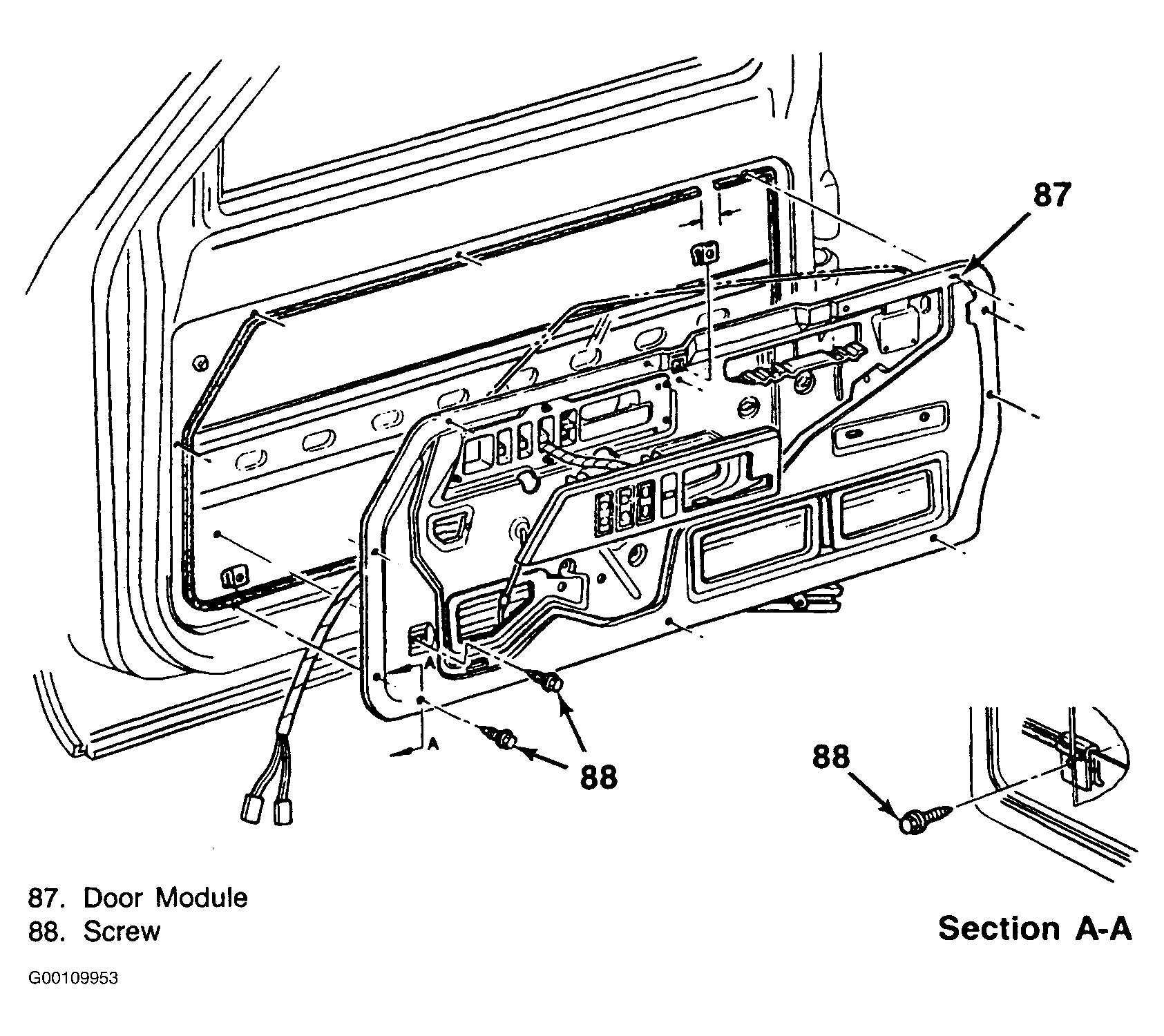

- Remove screws holding the door module to the door. See Fig 1. Pull back the water deflector
- Remove lock and handle rods from the back of the door module. Tape them to the door.
- Pull the wiring from the door hinge pillar to reach the connector. Remove the boot over the wiring. Push the wiring harness into the door. Remove wiring connector from module.
- Move channel away from the glass. Tilt the module and window glass assembly, then lift it out of the bottom of the door. Pull upper belt through window run channel.
Courtesy of GENERAL MOTORS CORP.
