Test B: Left Power Mirror Does Not Operate
Test B: Left Power Mirror Does Not Operate
NOTE:
If the left power mirror does not operate, see
Fig 1
.

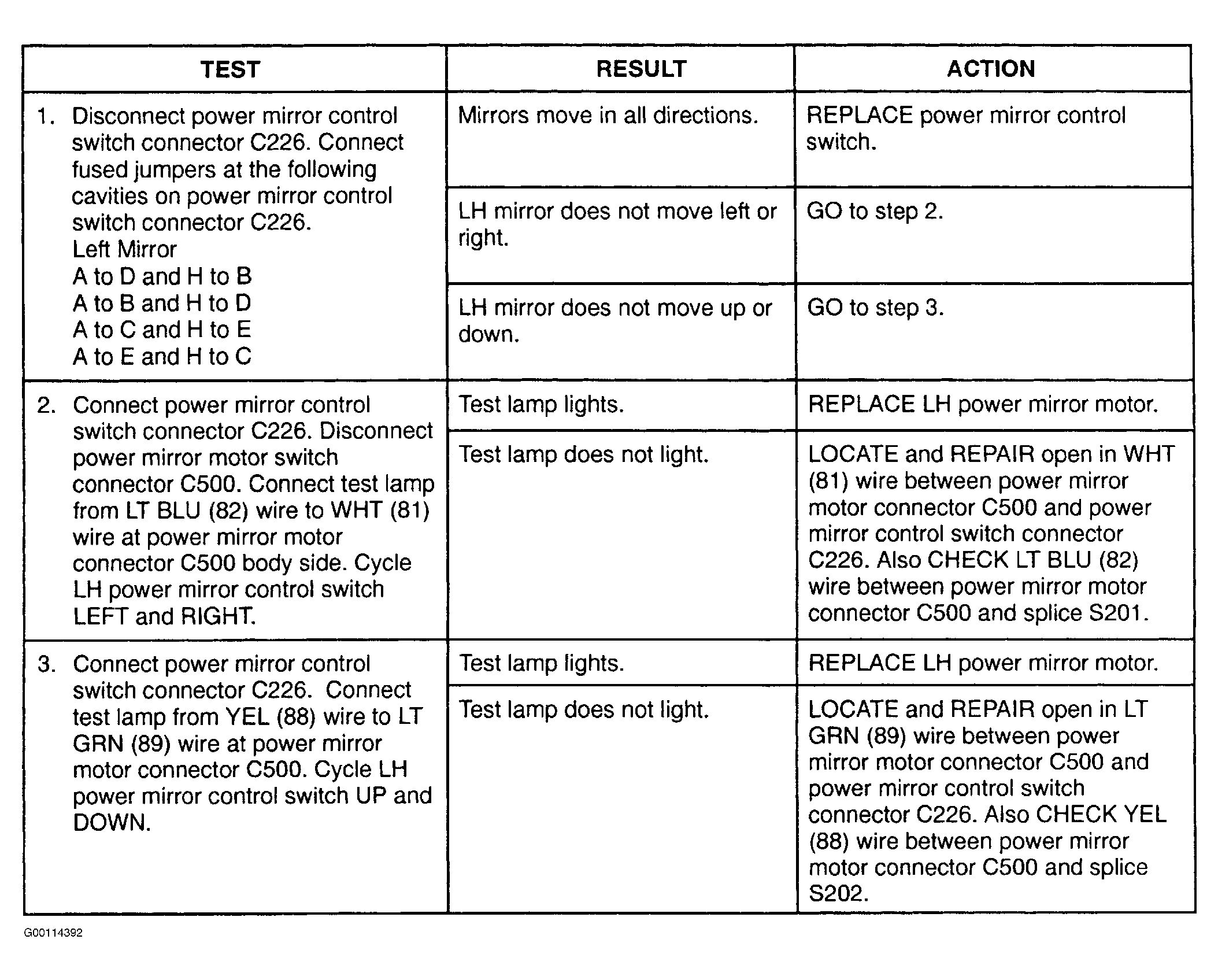

Fig 1: Test B: Left Power Mirror Does Not Operate
Courtesy of GENERAL MOTORS CORP.
