Test A: Right Power Mirror Does Not Operate
Test A: Right Power Mirror Does Not Operate
NOTE:
If the right power mirror does not operate, see
Fig 1
.

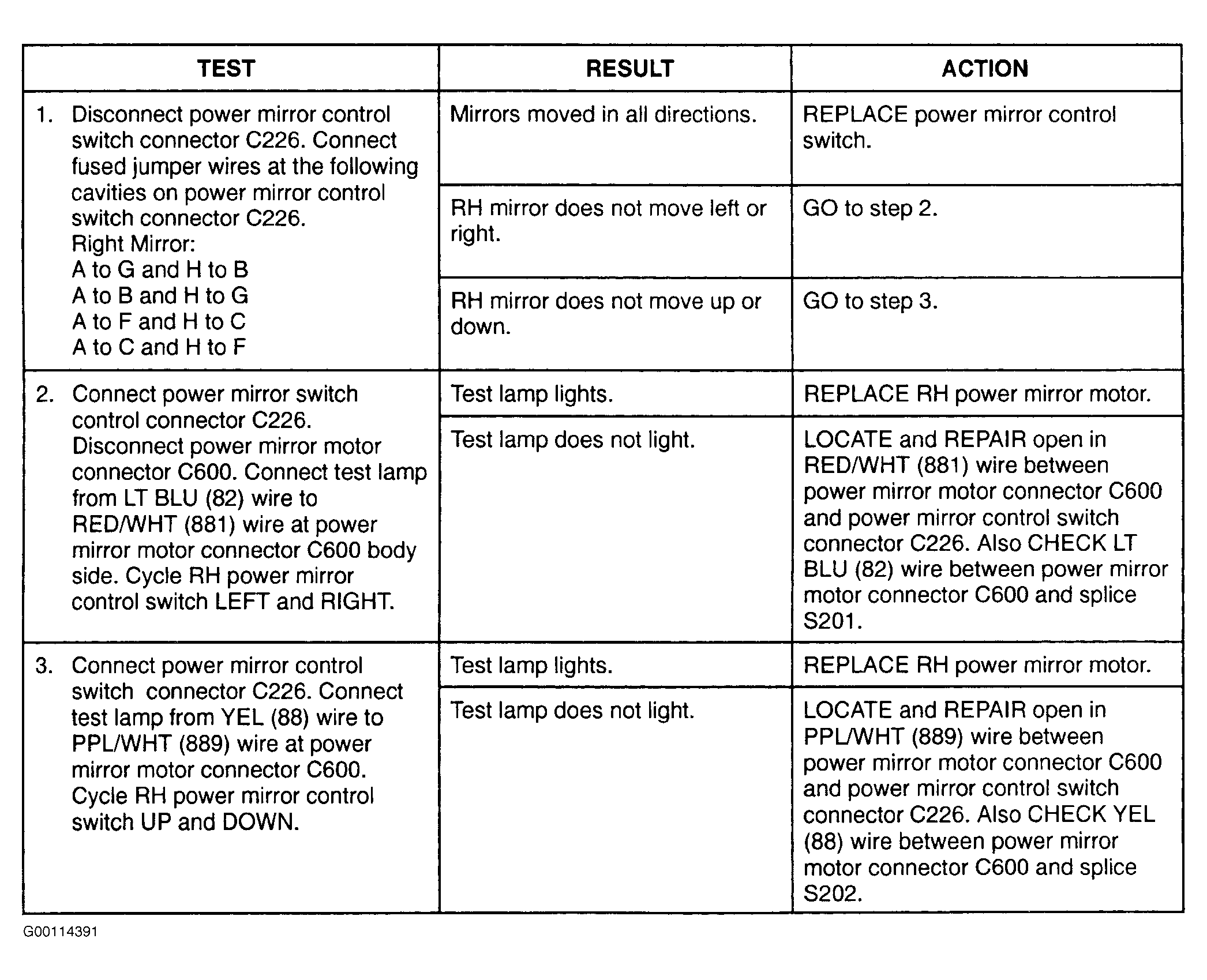

Fig 1: Test A: Right Power Mirror Does Not Operate
Courtesy of GENERAL MOTORS CORP.
