Sliding Door

NOTE: For wire colors, circuit numbers and terminal identification, see WIRING DIAGRAMS .

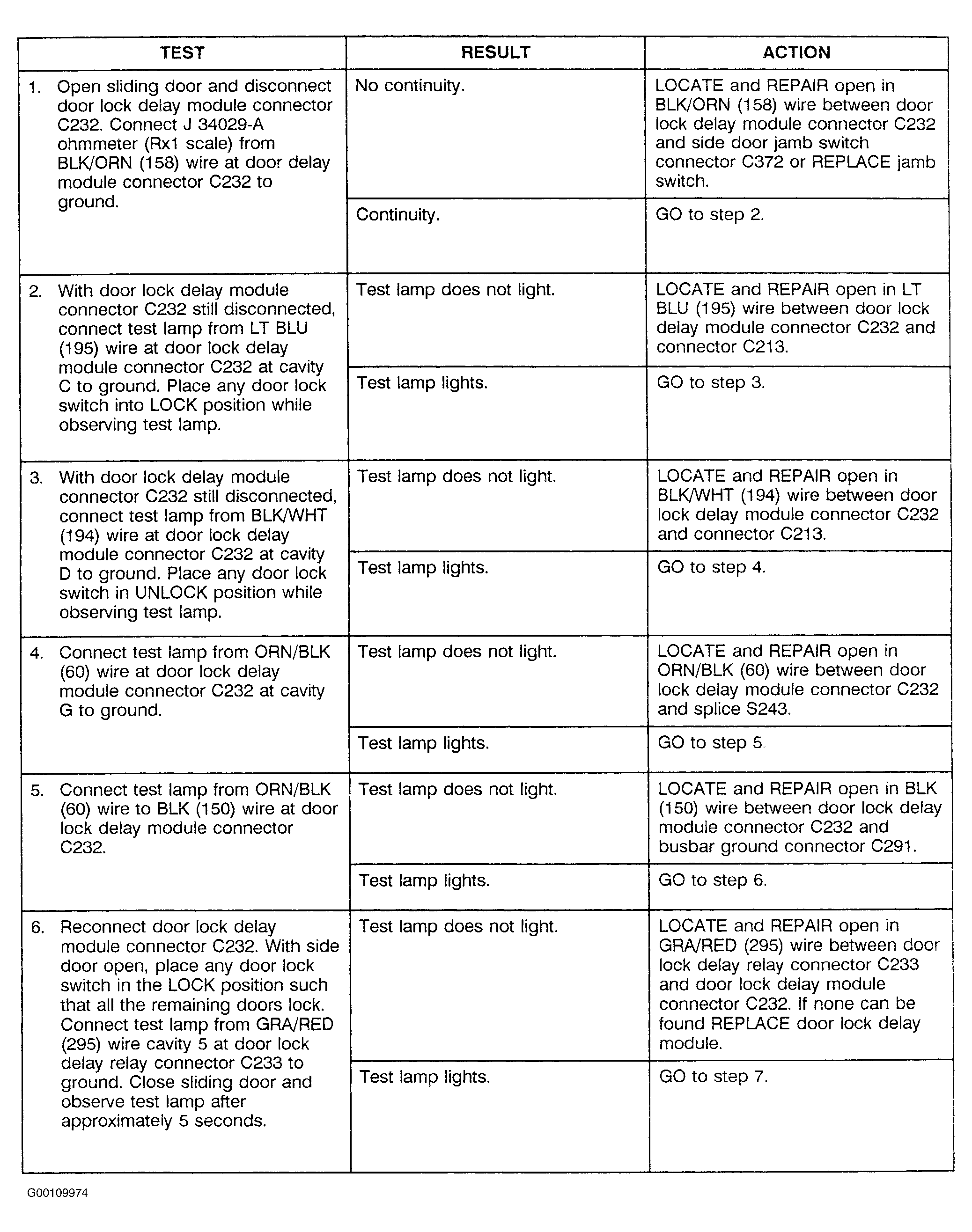

Fig 1: Side Door Lock Delay Does Not Operate (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

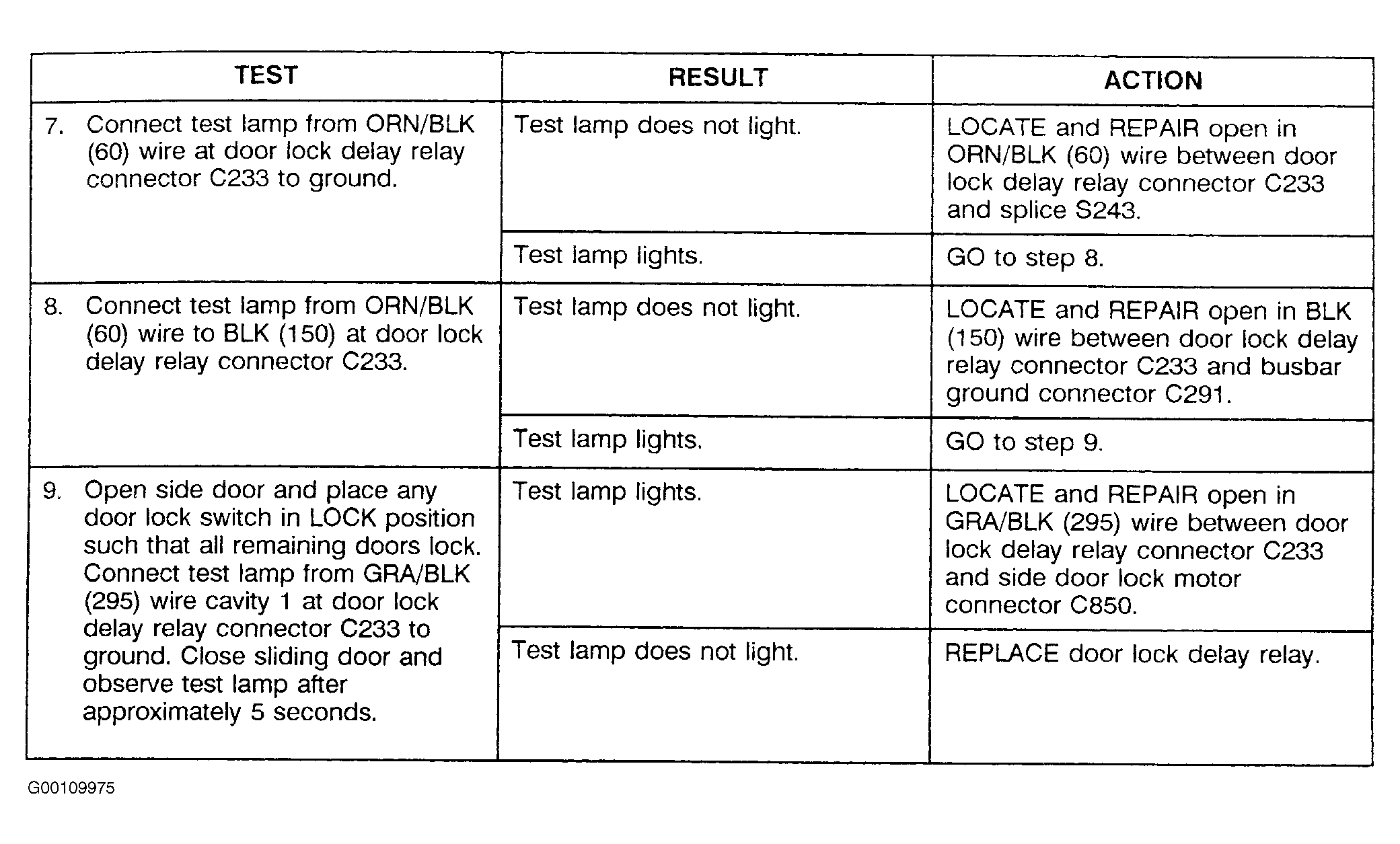

Fig 2: Side Door Lock Delay Does Not Operate (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

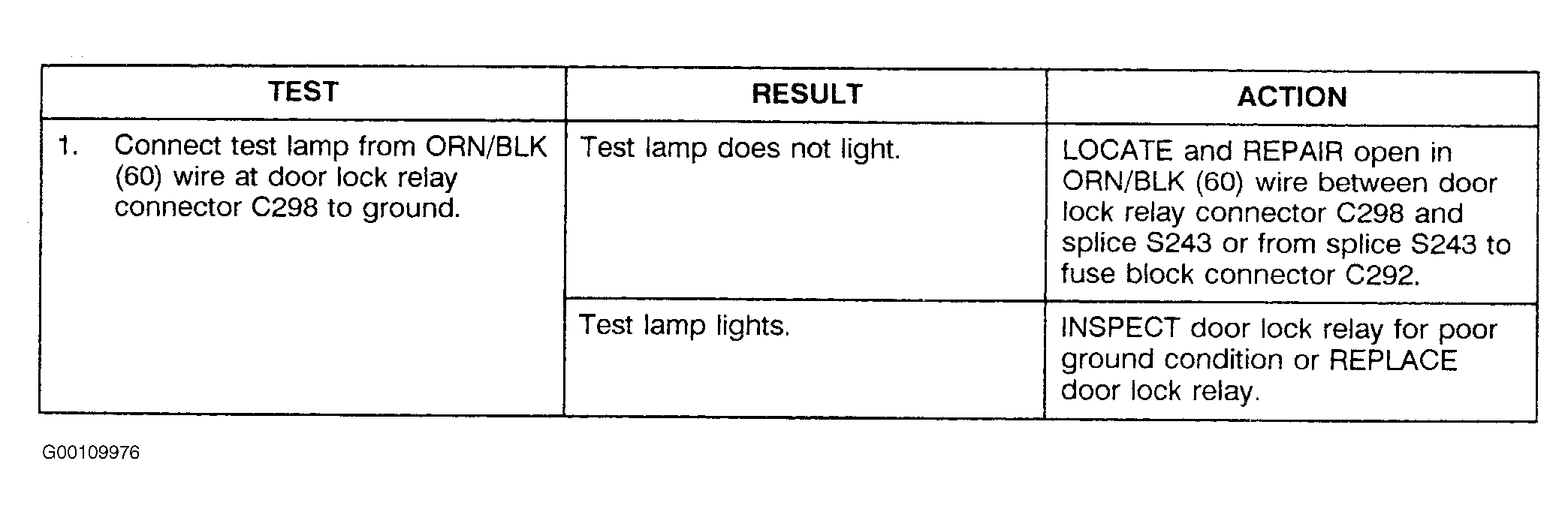

Fig 3: None Of The Door Lock Motors Lock Or Unlock

Courtesy of GENERAL MOTORS CORP.

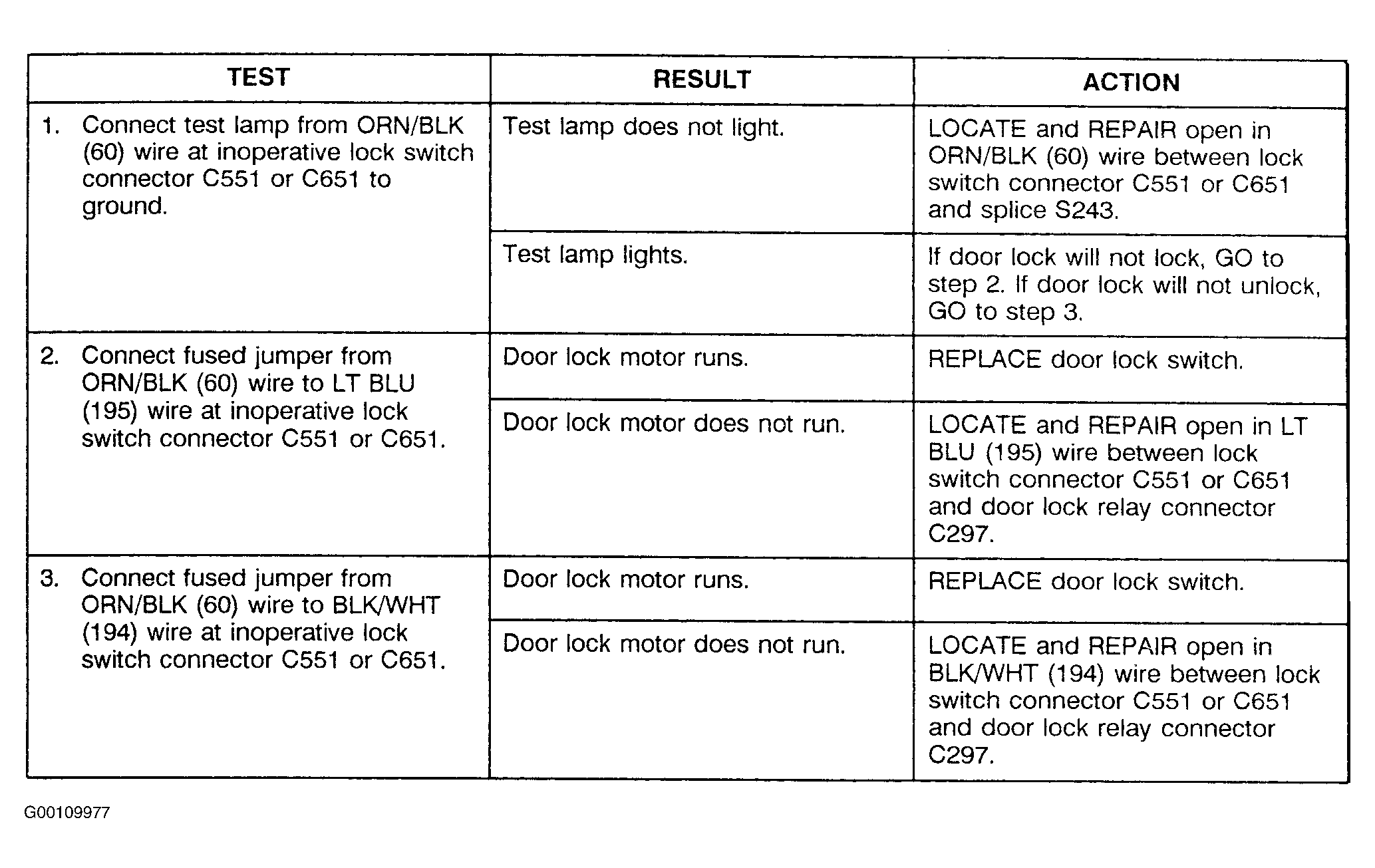

Fig 4: Door Lock Does Not Lock Or Unlock From A Particular Switch

Courtesy of GENERAL MOTORS CORP.

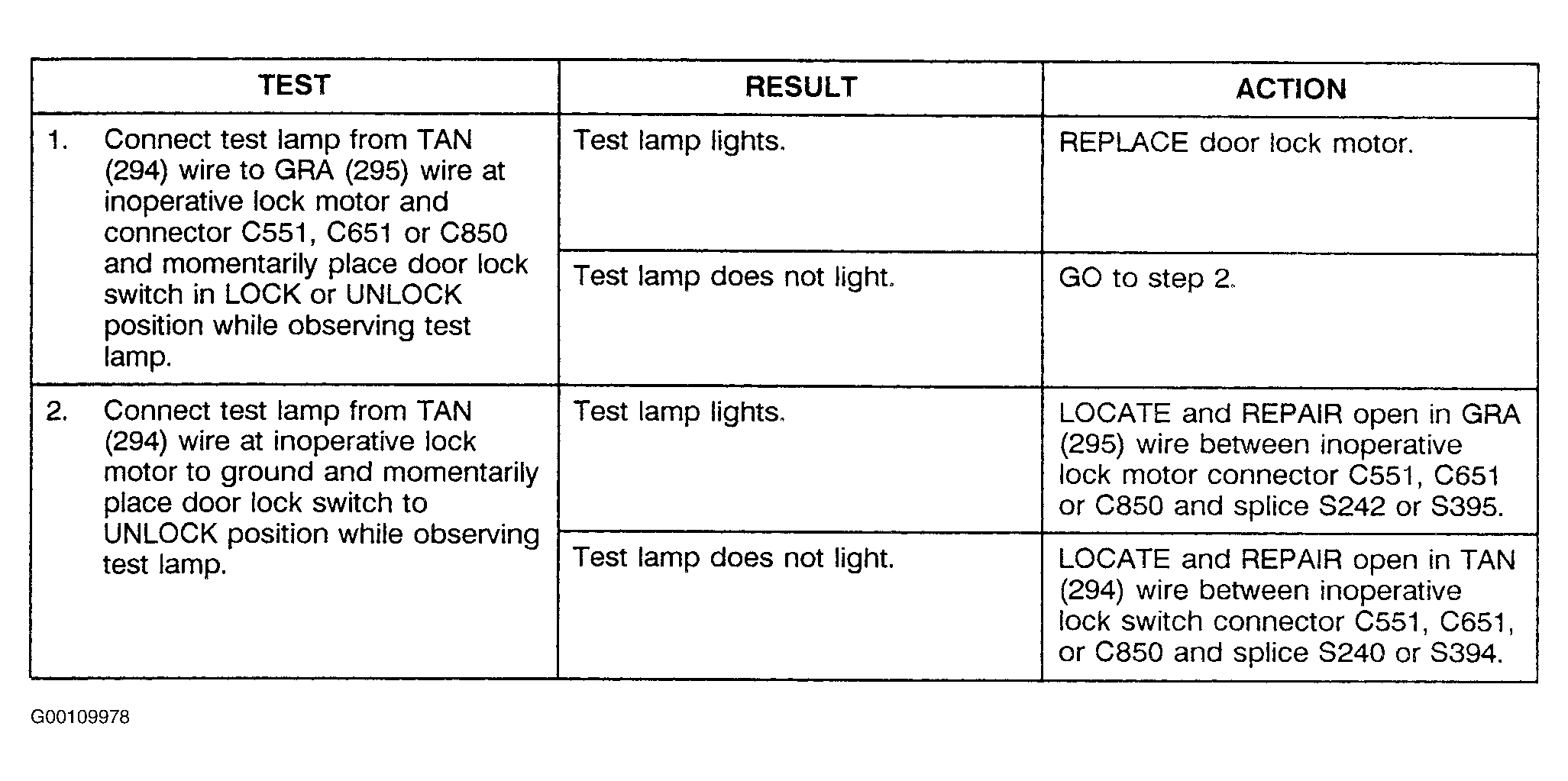

Fig 5: One Door Lock Motor Does Not Operate From Any Switch

Courtesy of GENERAL MOTORS CORP.
