Power Mirror System
>>
Wiring Diagrams
Wiring Diagrams

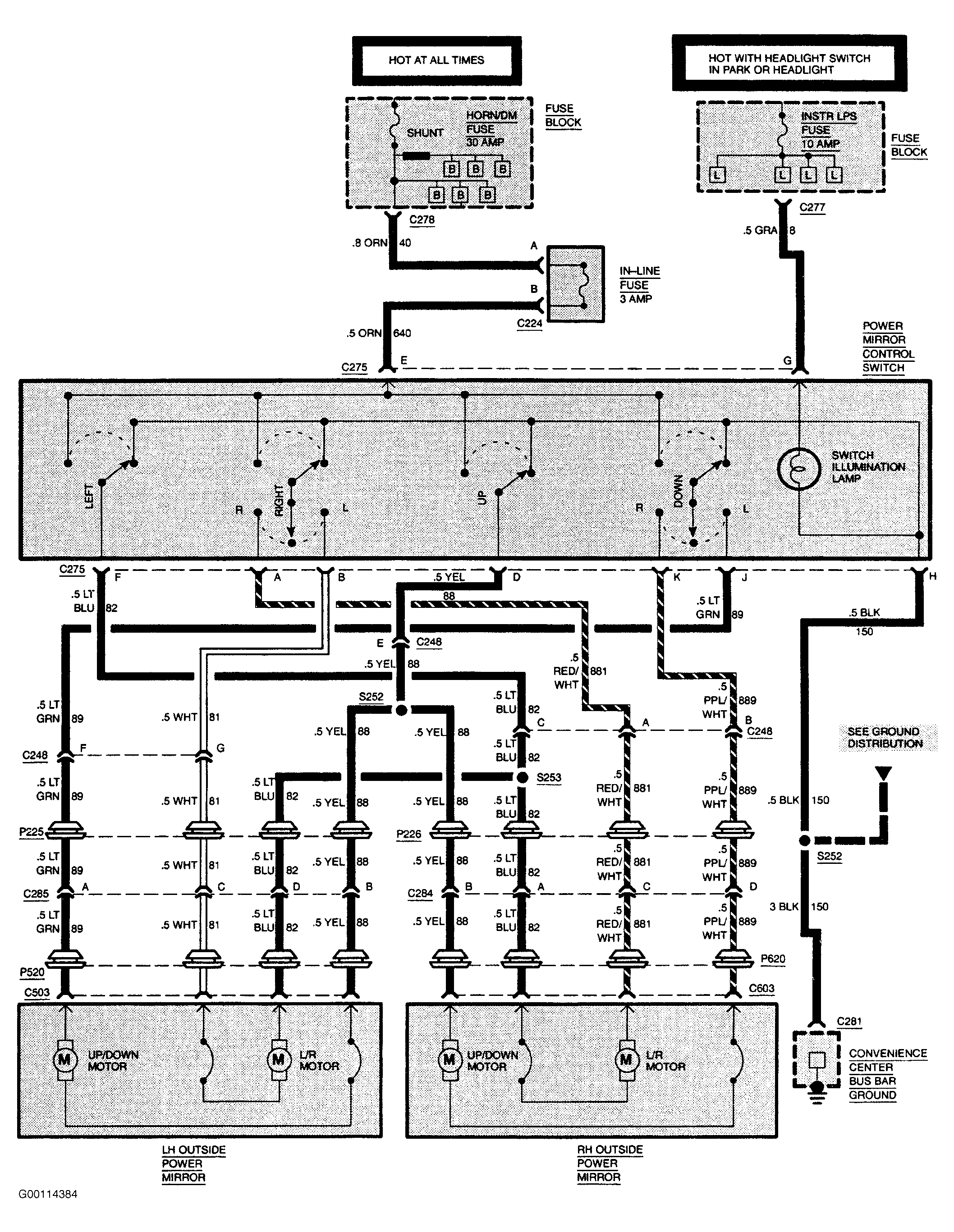

Fig 1: Power Mirror Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
