Diagnostic Aids

Check all connections at transmission pass-through connector.

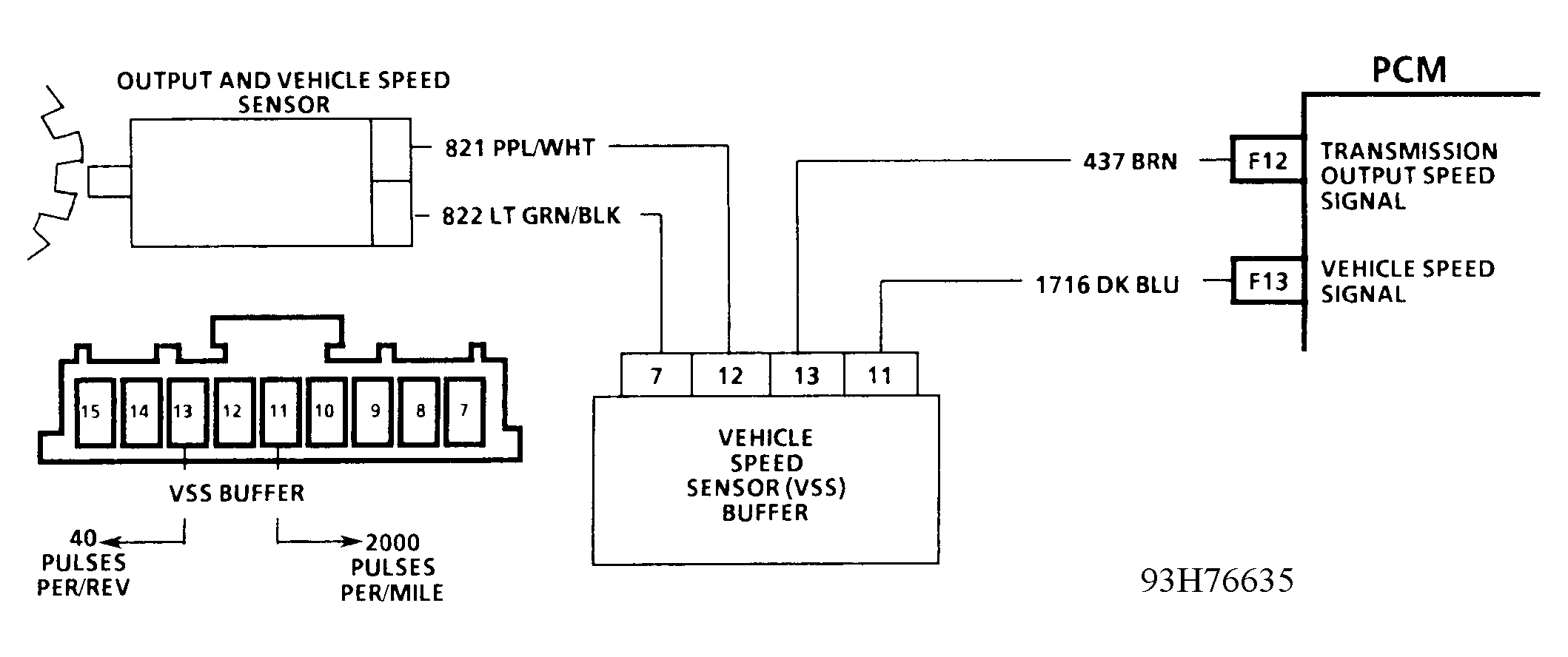

Fig 1: DTC 72, Schematic, Vehicle Speed Sensor Signal Loss

Courtesy of GENERAL MOTORS CORP.

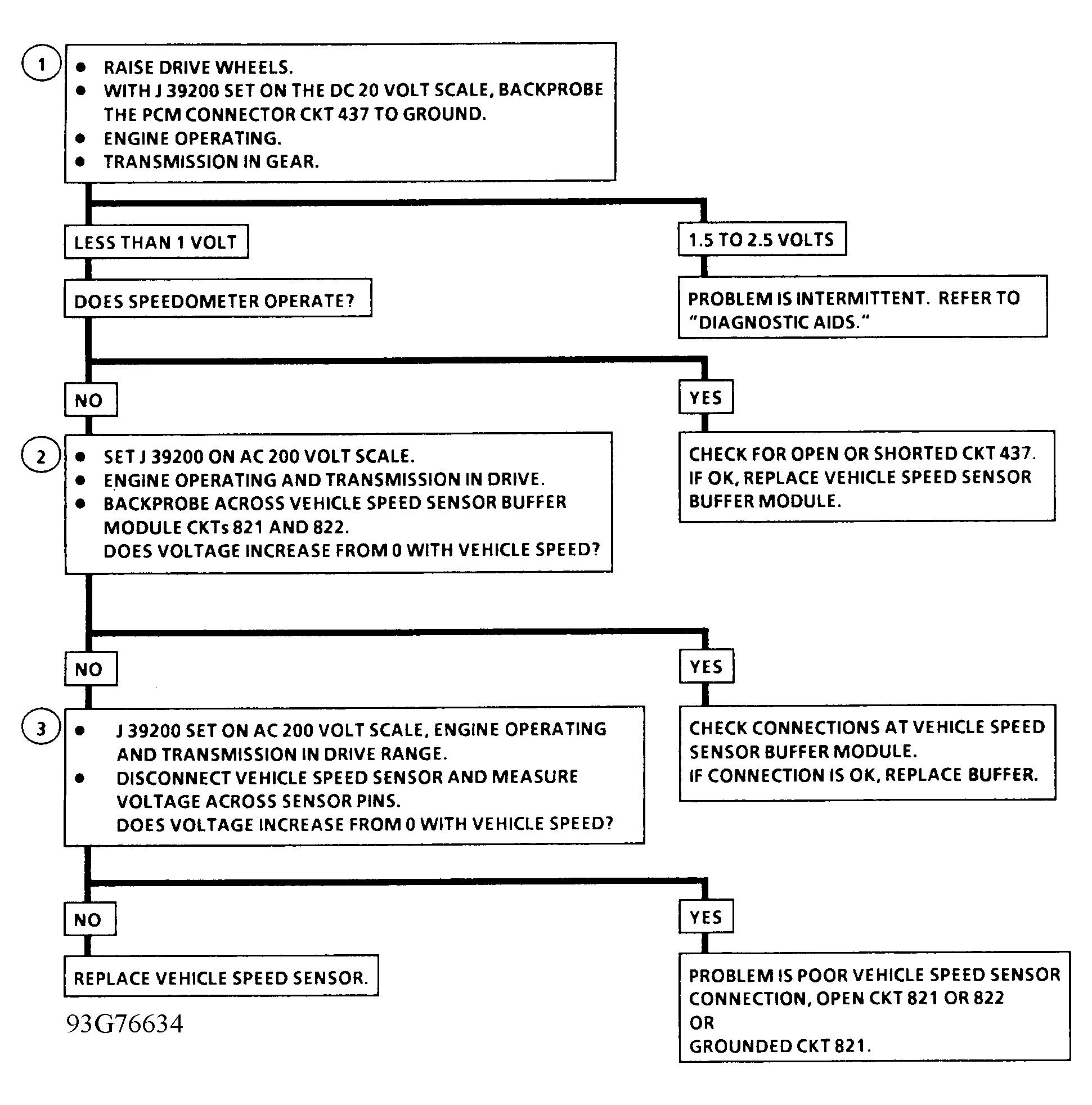

Fig 2: DTC 72, Flowchart, Vehicle Speed Sensor Signal Loss

Courtesy of GENERAL MOTORS CORP.
