Wiring Diagrams

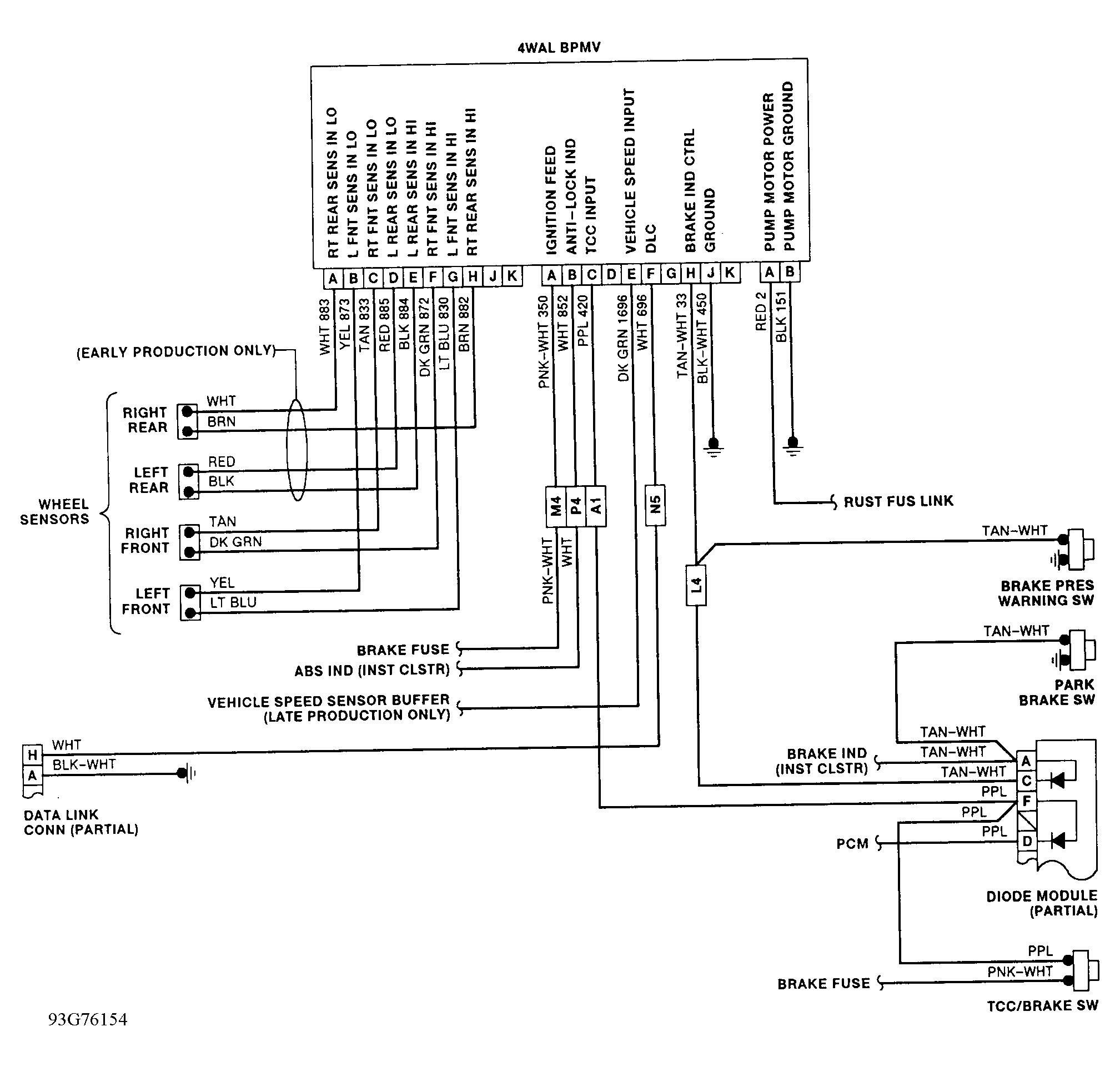

Fig 1: 4WAL Brake System Wiring Diagram (Bravada)
G93G76154

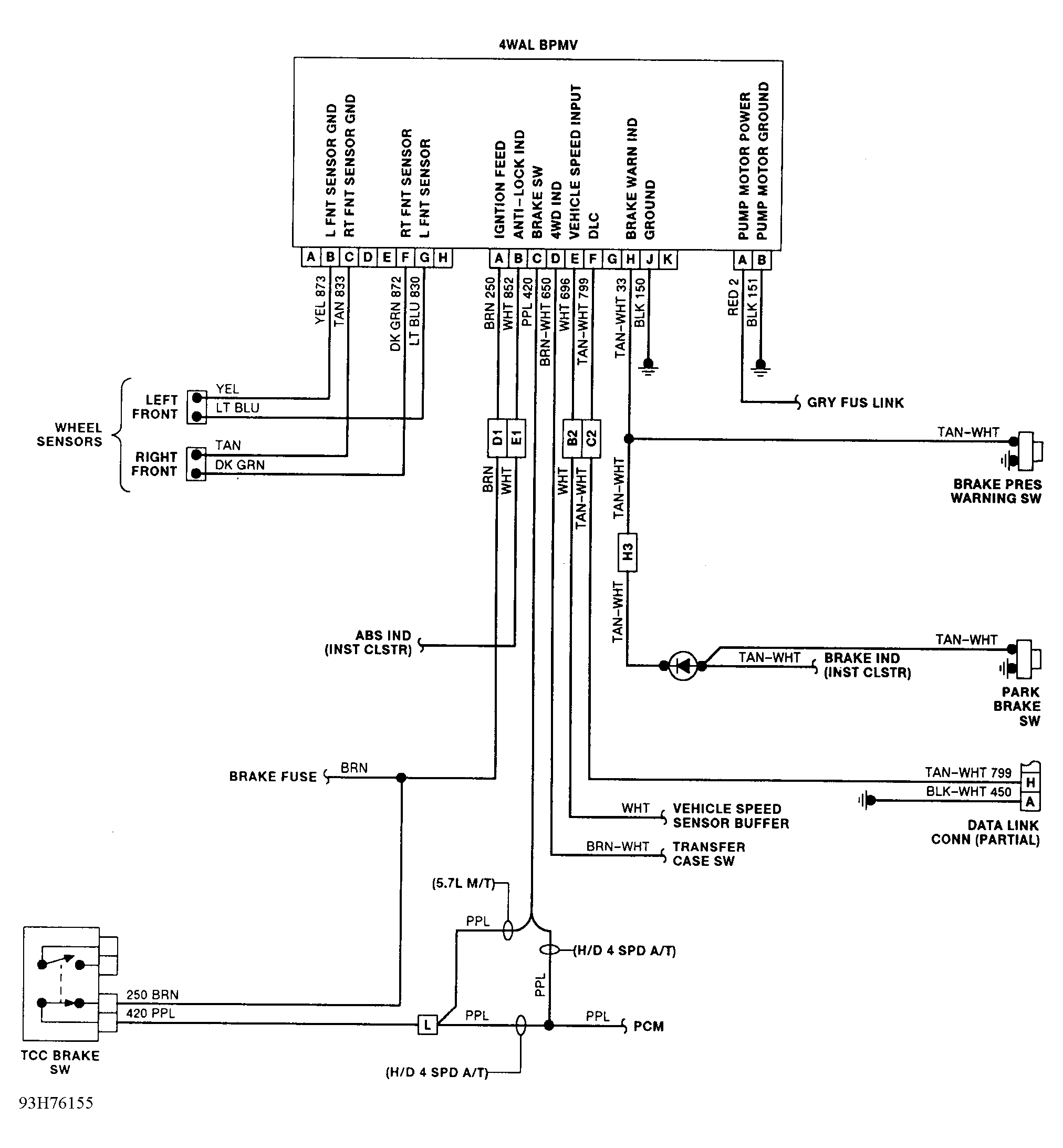

Fig 2: 4WAL Brake System Wiring Diagram ("C" & "K" Series)
G93H76155

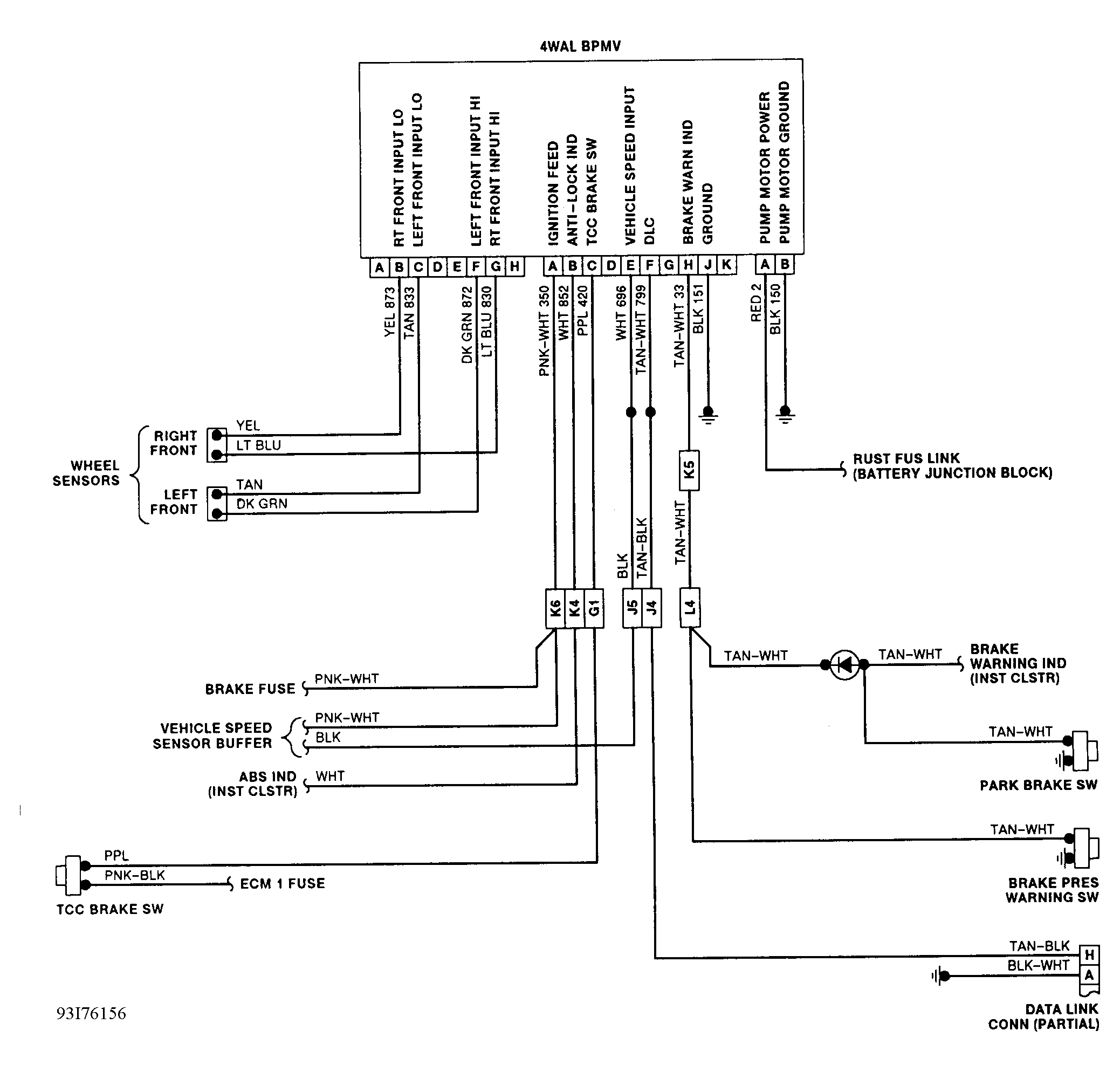

Fig 3: 4WAL Brake System Wiring Diagram ("G" Series)
G93I76156

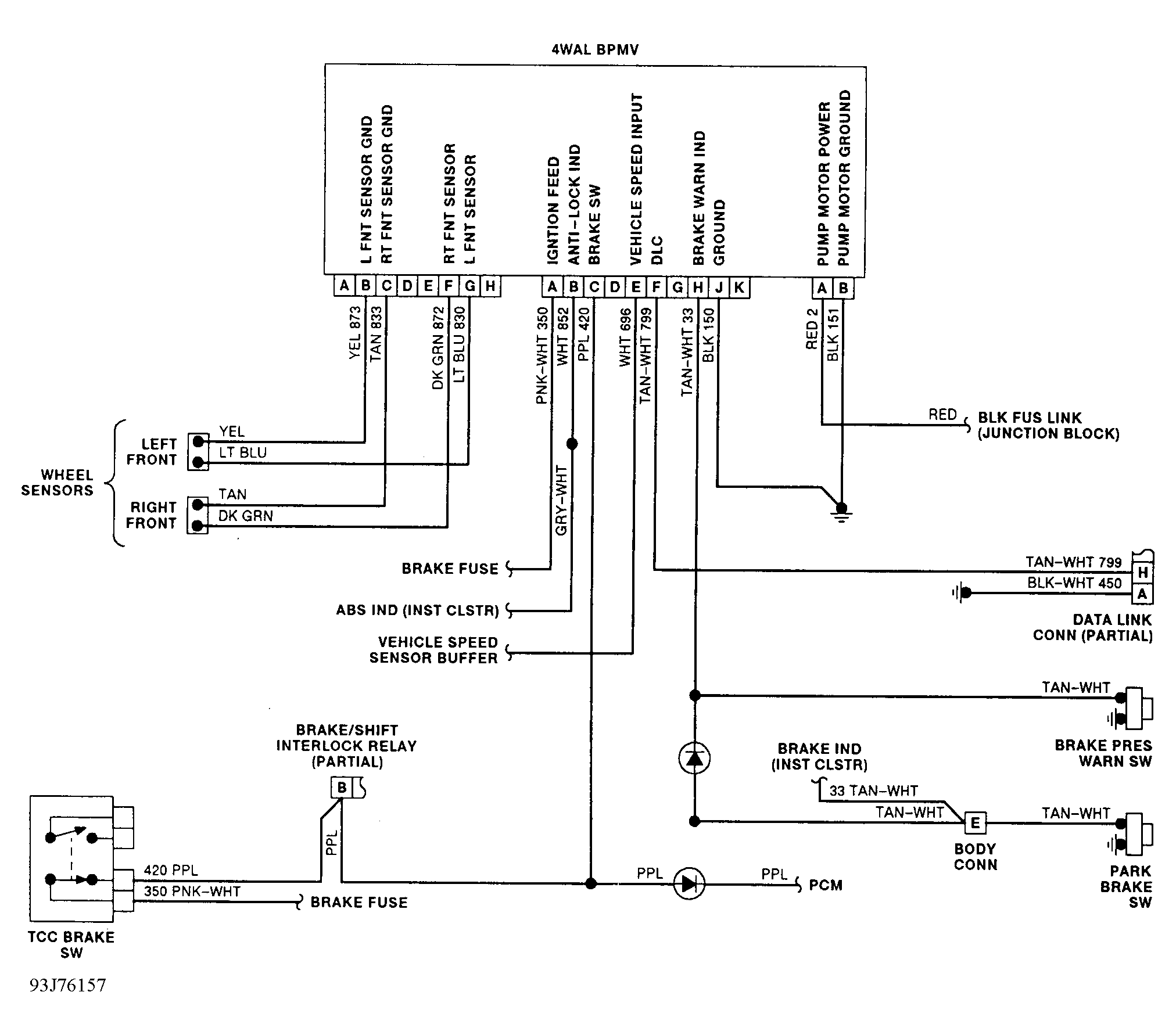

Fig 4: 4WAL Brake System Wiring Diagram ("L" & "M" Series)
G93J76157

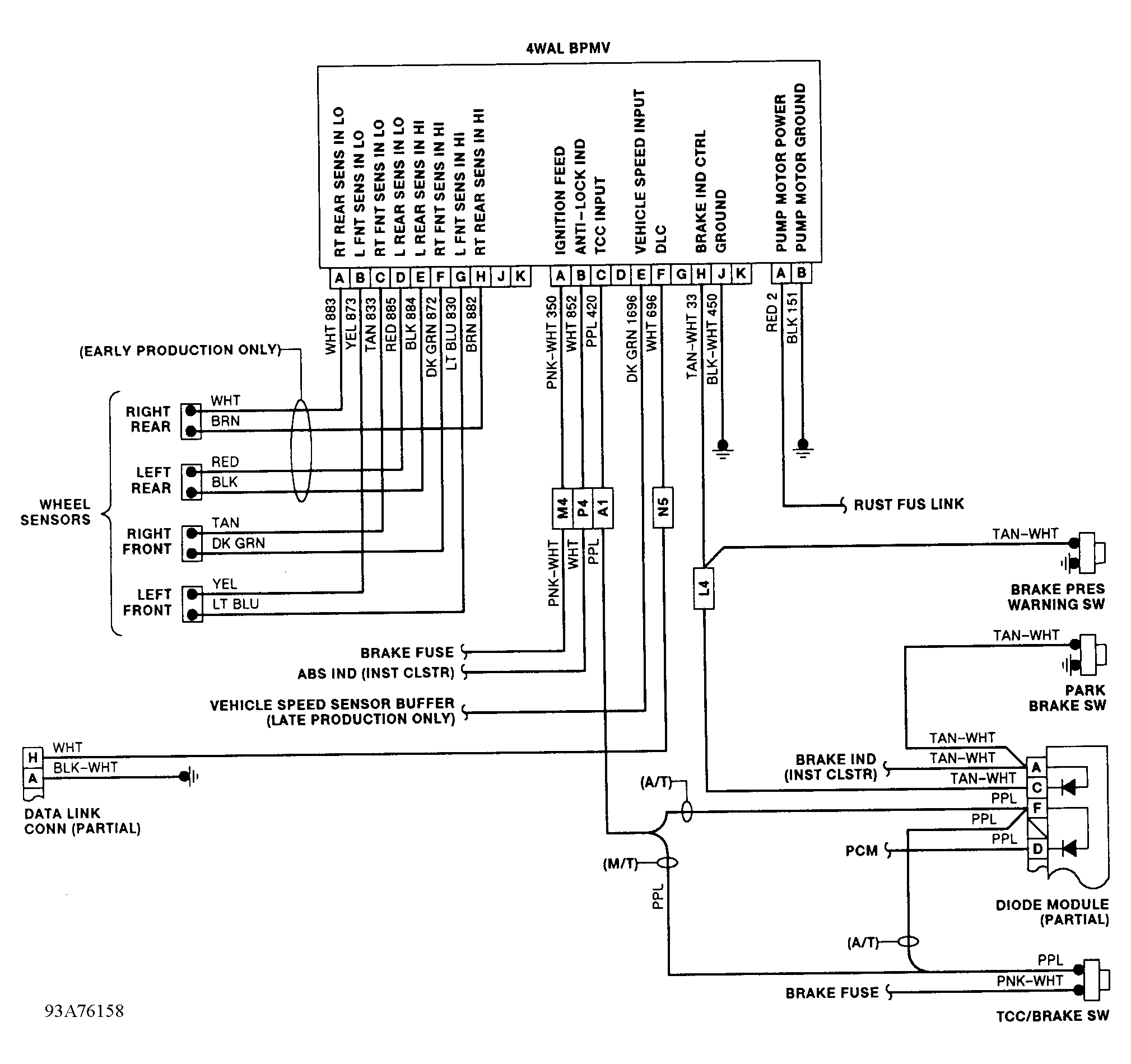

Fig 5: 4WAL Brake System Wiring Diagram ("S" & "T" Series)
G93A76158

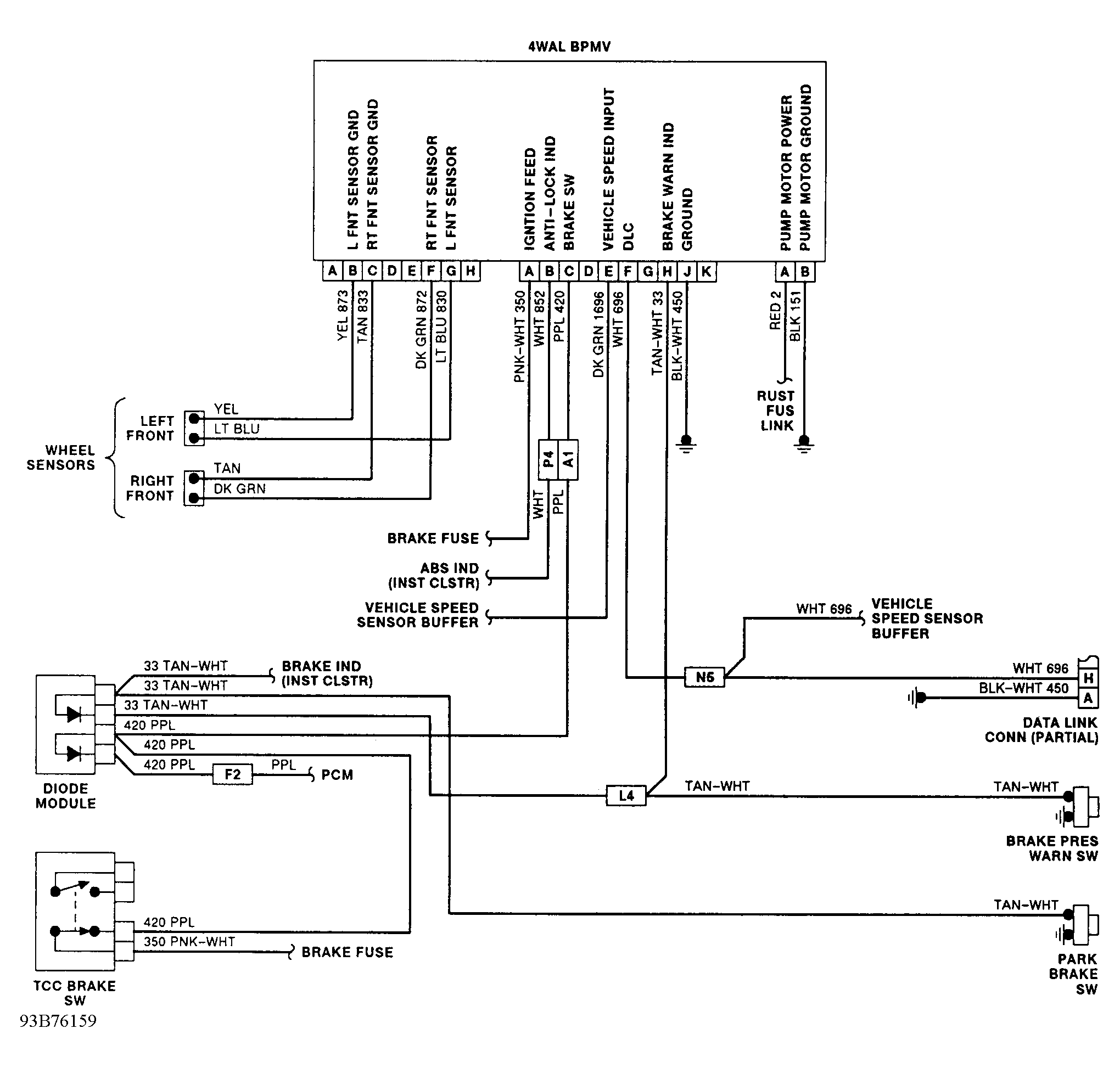

Fig 6: 4WAL Brake System Wiring Diagram (Typhoon)
G93B76159
