Home >> GMC >> 1993 >> Jimmy Typhoon >> Repair and Diagnosis >> Body & Frame >> Mirrors - Power >> System Tests >> Test A: Power Mirrors Do Not Operate

Test A: Power Mirrors Do Not Operate

To perform the following test, refer to illustration. See Fig 1 .

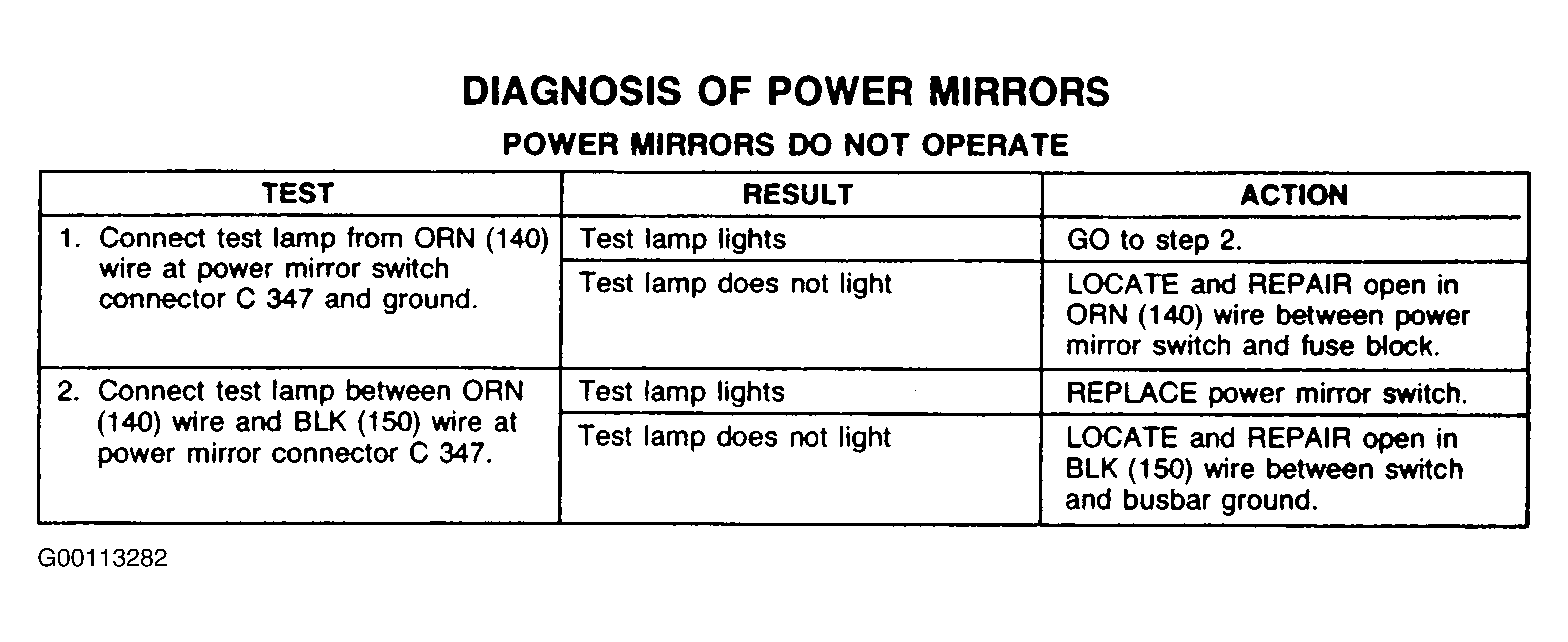

Fig 1: Test A: Power Mirrors Do Not Operate
G00113282Courtesy of GENERAL MOTORS CORP.
