Wiring Diagrams

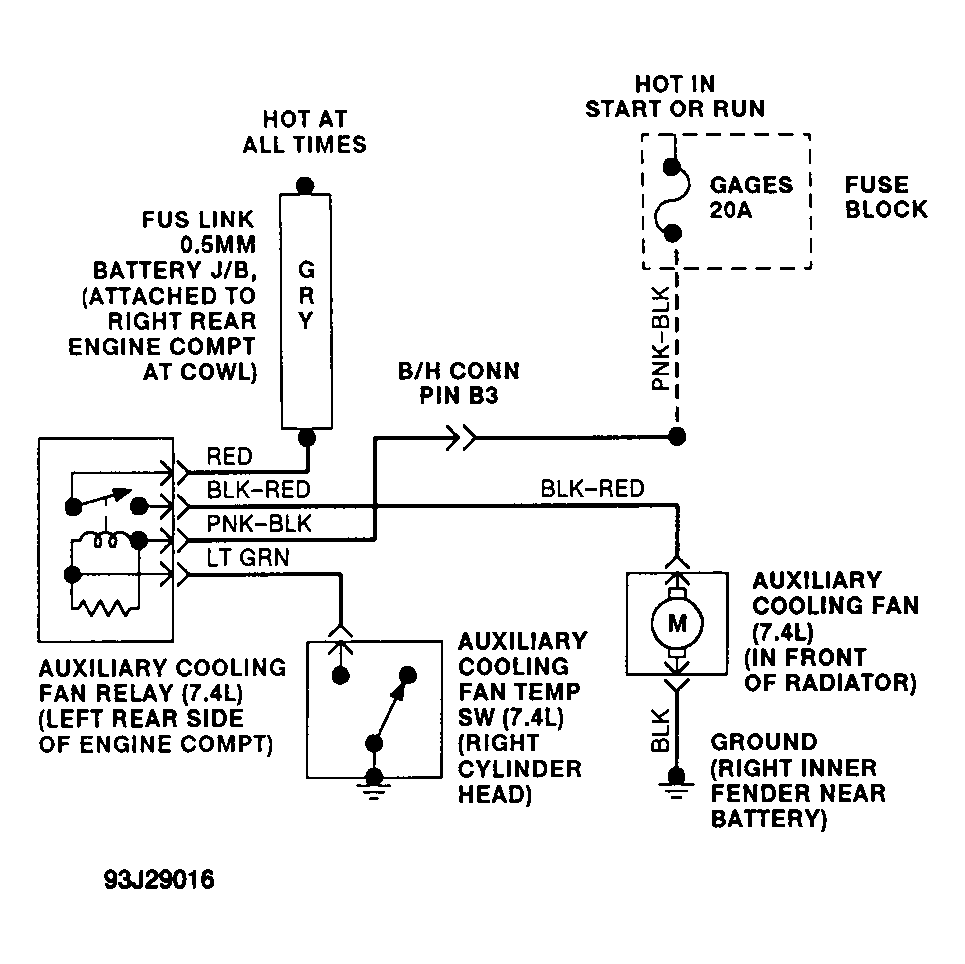

Fig 1: Cooling Fan Circuit Wiring Diagram("C" & "K" Series - 7.4L)
G93J29016

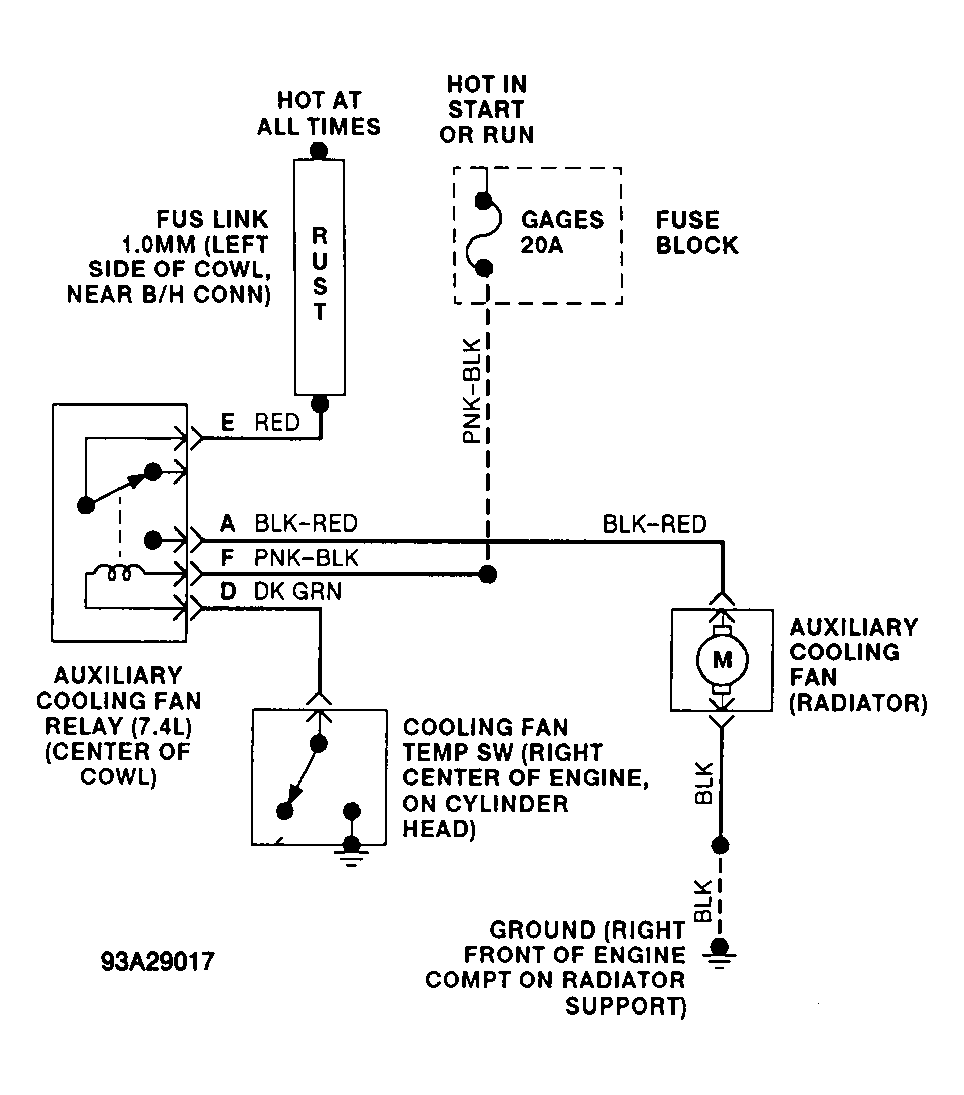

Fig 2: Cooling Fan Circuit Wiring Diagram ("G" Series - 7.4L)
G93A29017
NOTE: Cooling fan circuit diagram is not available for "P" Series vehicles.
