Wiring Diagrams

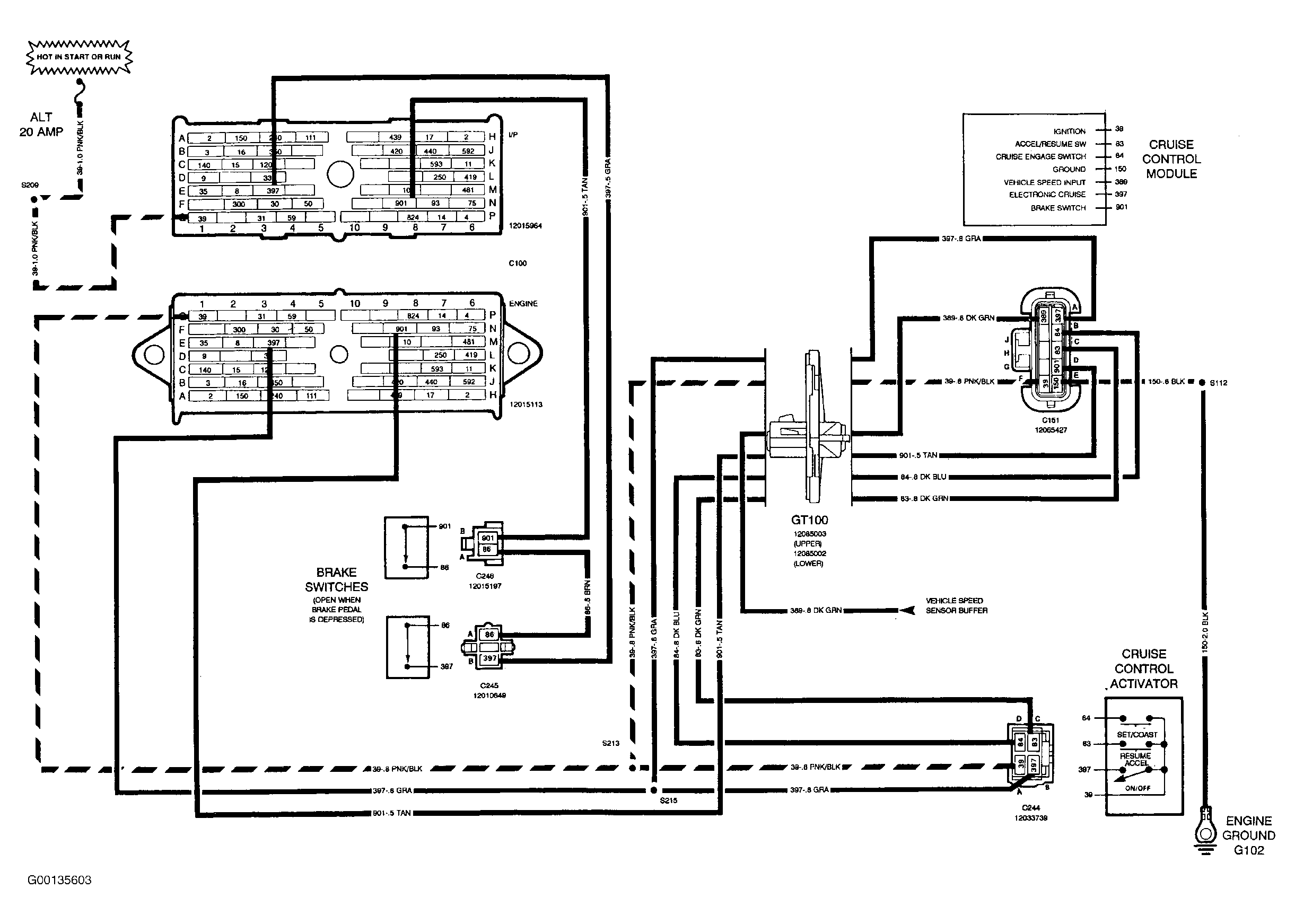

Fig 1: Identifying Wiring Diagram (P Models)

G00135603

Courtesy of GENERAL MOTORS CORP.
