Diagnostic Aids

Check all connections, especially those at the transmission pass-thru connector and PCM.

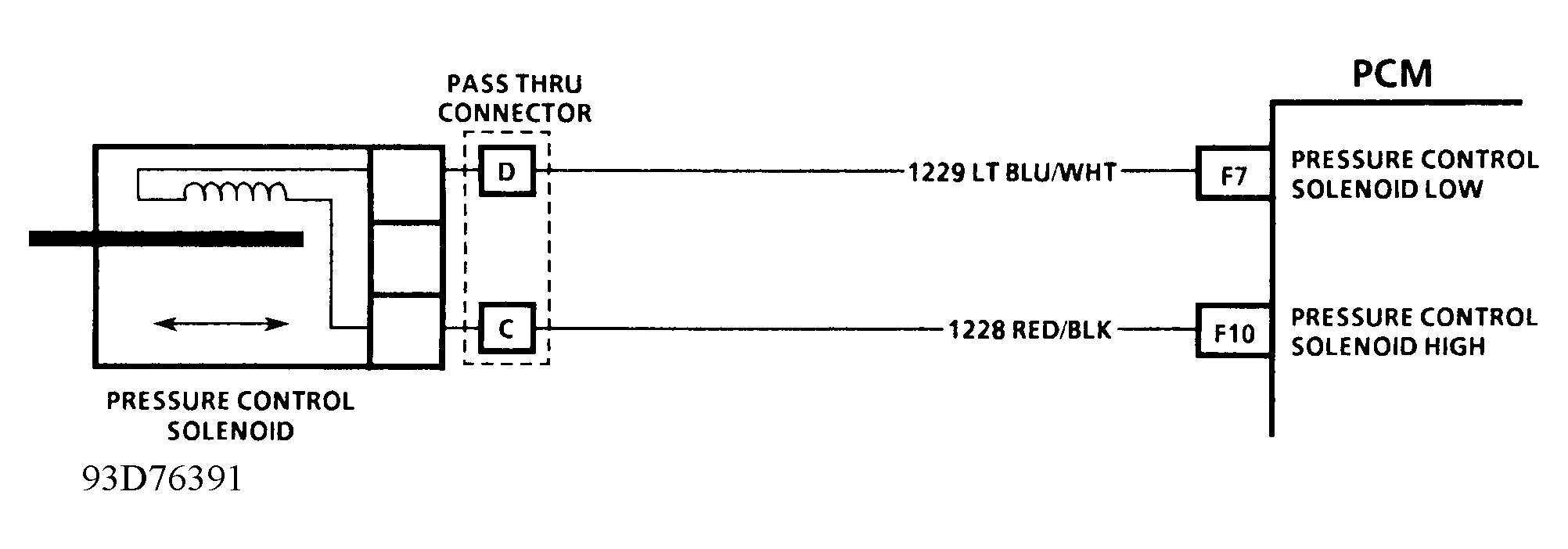

Fig 1: CODE 73, Schematic, Pressure Control Solenoid (Current Error)

Courtesy of GENERAL MOTORS CORP.

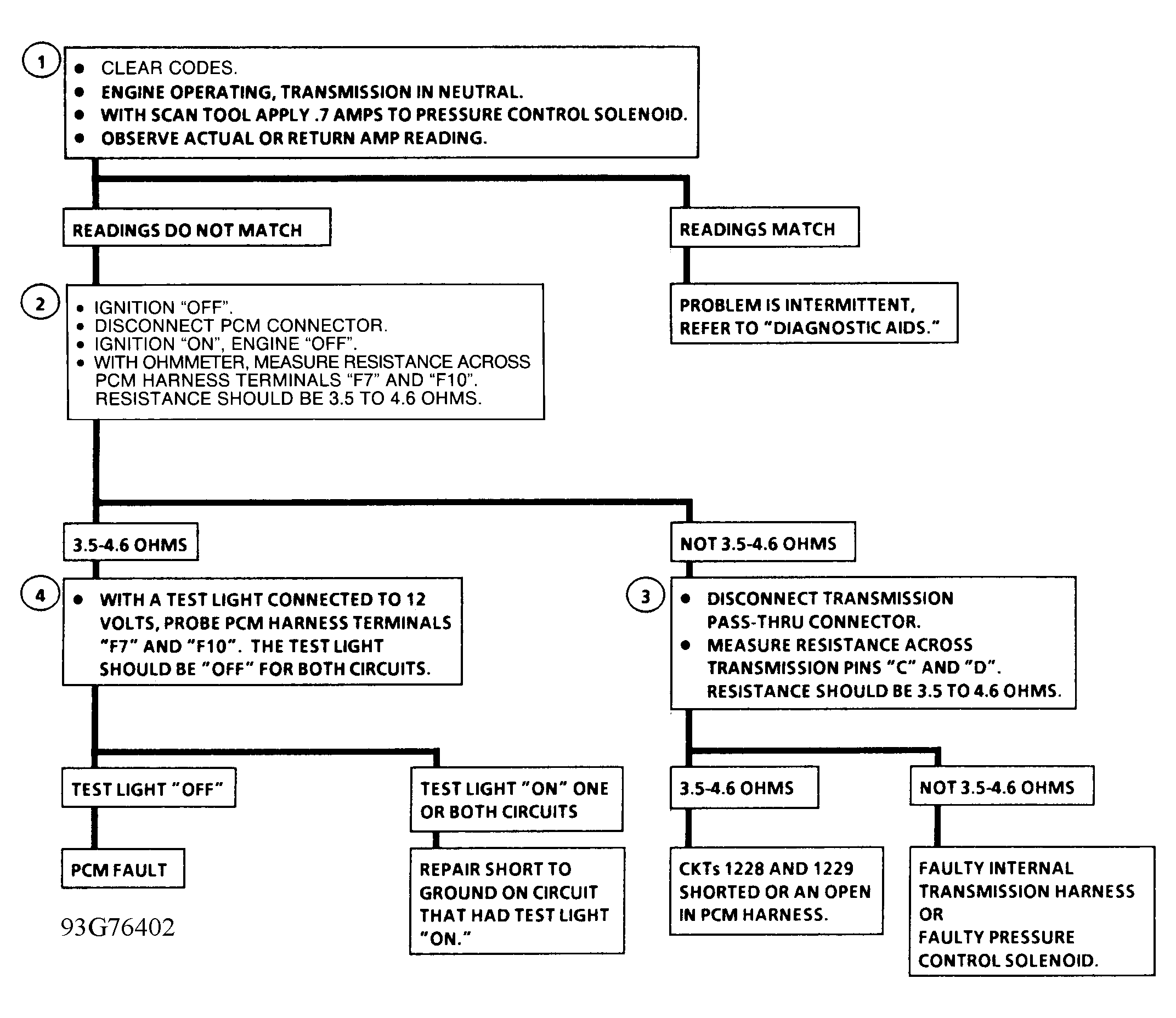

Fig 2: CODE 73, Flowchart, Pressure Control Solenoid (Current Error)

Courtesy of GENERAL MOTORS CORP.
