Connector Identification

WARNING: This page is about a different car, the 1993 GMC Safari and 1993 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: To identify SIR wiring connector terminals, see appropriate Figs. Terminal identification for Eldorado and Seville is not available.
Fig 1: DERM Face View
G93J75423Courtesy of GENERAL MOTORS CORP.

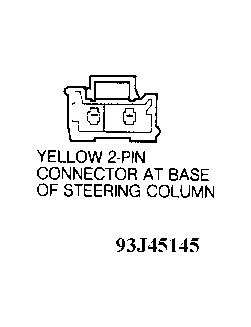

Fig 2: Yellow 2- Pin Connector
G93J45145Courtesy of GENERAL MOTORS CORP.

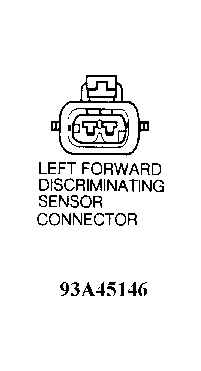

Fig 3: Left Forward Discriminating Sensor
G93A45146Courtesy of GENERAL MOTORS CORP.

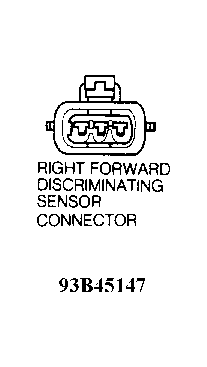

Fig 4: Right Forward Discriminating Sensor
G93B45147Courtesy of GENERAL MOTORS CORP.

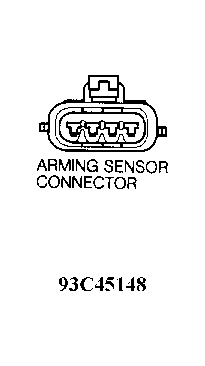

Fig 5: Arming Sensor Connector
G93C45148Courtesy of GENERAL MOTORS CORP.
