Disassembly (Model "P")

  1. Using Puller (J-29785-A), remove pulley from shaft if not previously removed. Remove union fitting and "O" ring. Remove reservoir retaining bolts. Remove reservoir and "O" rings from housing.

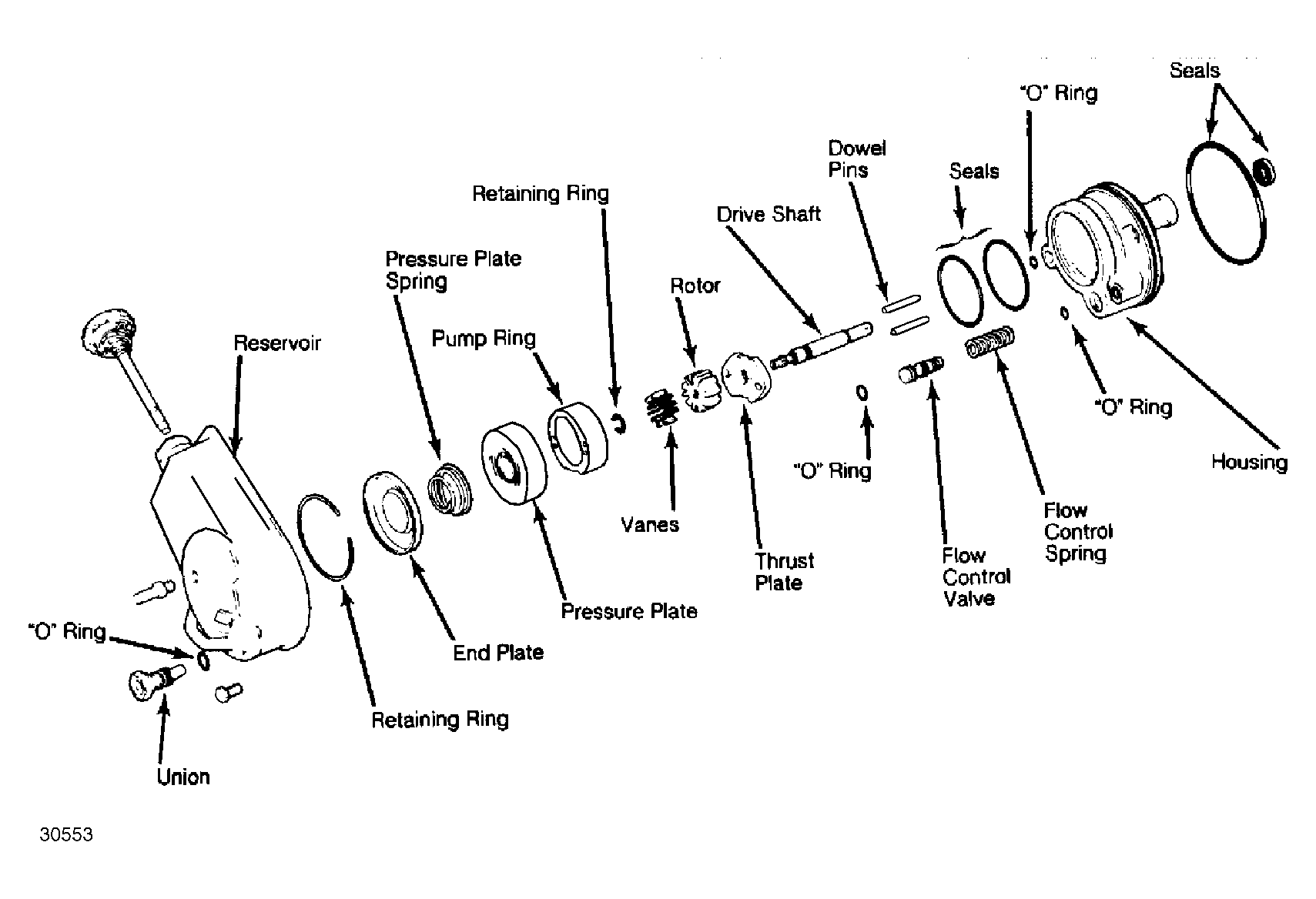

  2. Using punch and screwdriver, remove end plate retaining ring. Remove end plate and pressure plate spring. See Figure . Remove "O" ring, flow control valve, and spring. Using soft-faced hammer, tap end of drive shaft to loosen pressure plate.
  3. Remove pressure plate, pump ring, vanes, retaining ring, rotor, and thrust plate assembly from housing. Remove drive shaft. Pry drive shaft seal from housing. Remove dowel pins and seals.
