Fuel Line Disconnect Fittings: Notes

WARNING: This page is about a different car, the 1995 Dodge Pickup and 1995 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Fuel lines may contain single tab, dual tab or plastic retainer ring disconnect fittings. See Fig 1. Determine type of disconnect fitting used and use proper procedure for proper disconnect fitting.

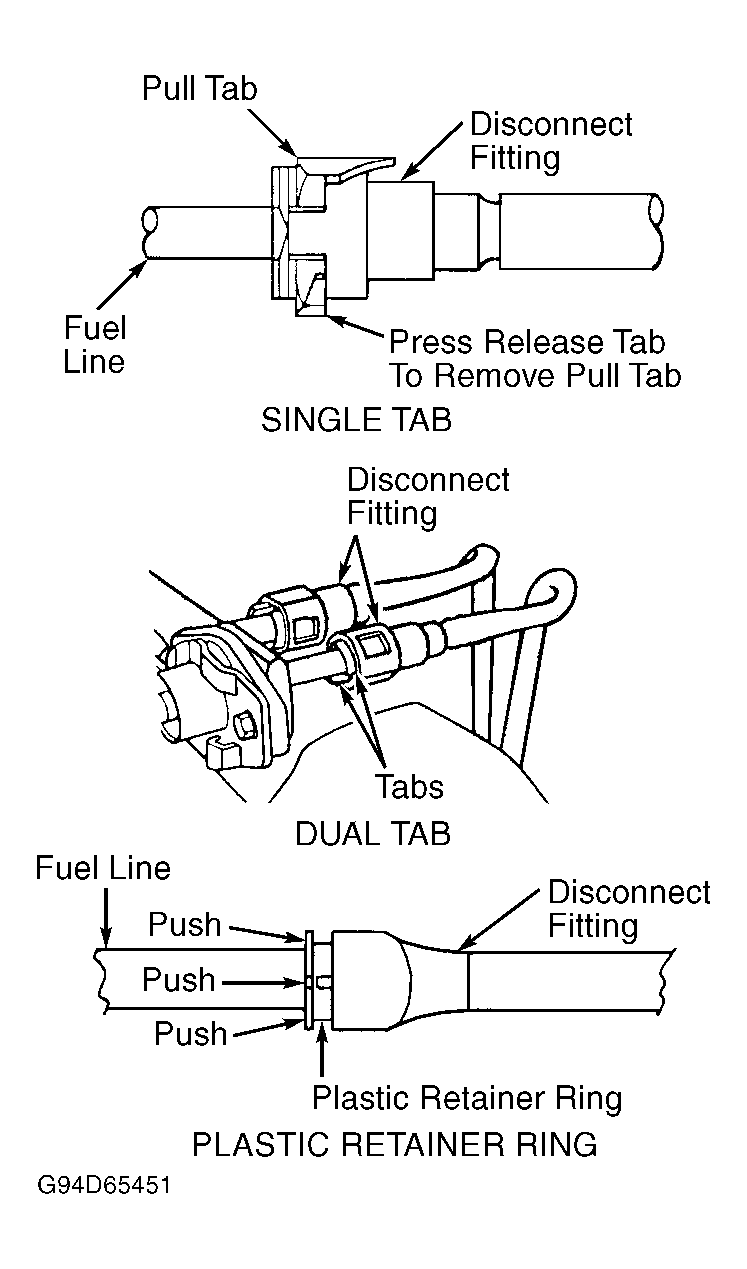

Fig 1: Identifying Fuel Line Disconnect Fitting
G94D65451Courtesy of CHRYSLER CORP.
