Home
>>
GMC
>>
1992
>>
Magnavan 7.4 N
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Mirrors
>>
System Tests
>>
Test A: Right Power Mirror Does Not Operate
Test A: Right Power Mirror Does Not Operate
NOTE:
If the right power mirror does not operate, see
Fig 1
.

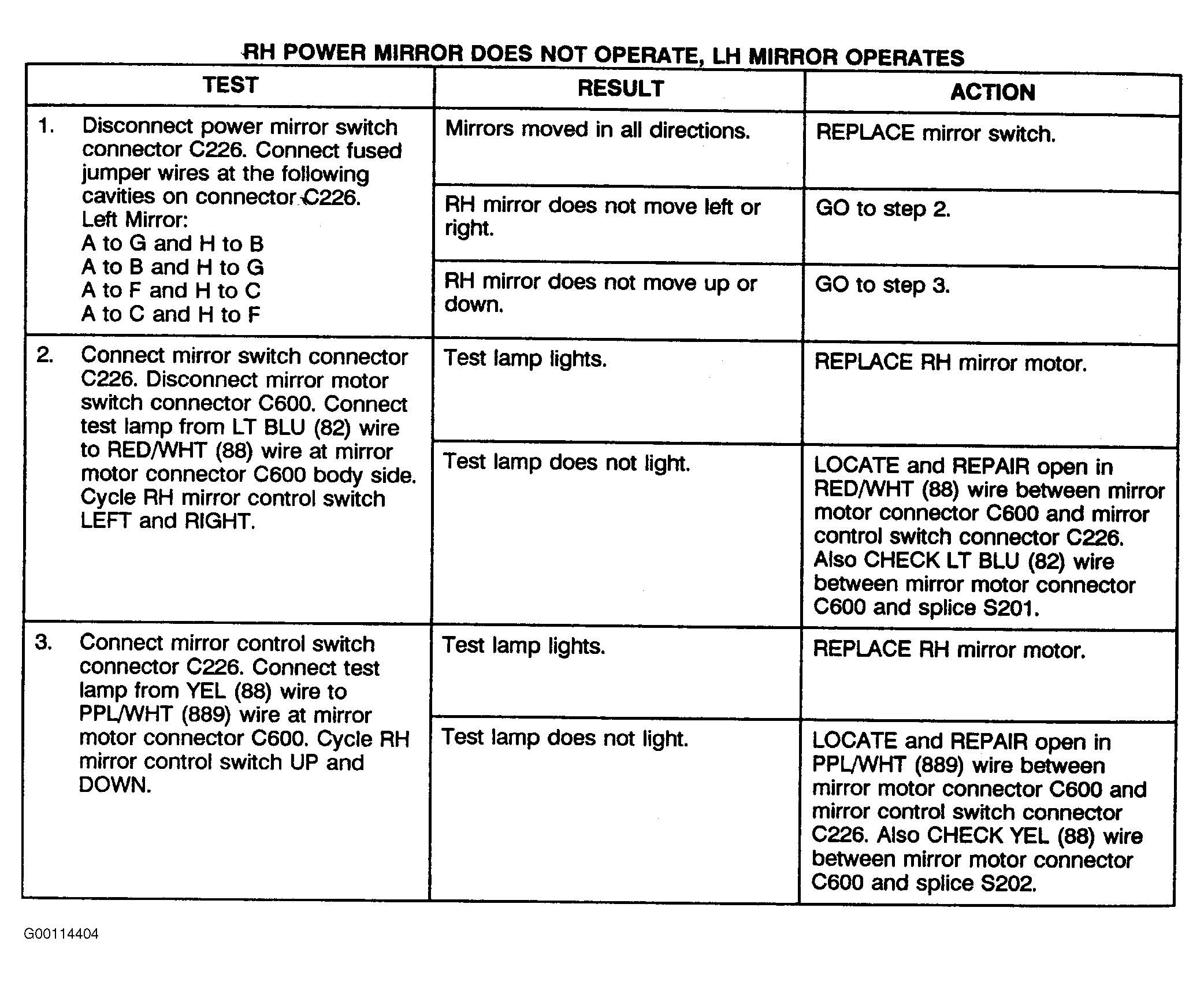

Fig 1: Test A: Right Power Mirror Does Not Operate
Courtesy of GENERAL MOTORS CORP.
