Code 81 - Brake Switch Circuit Open Or Shorted

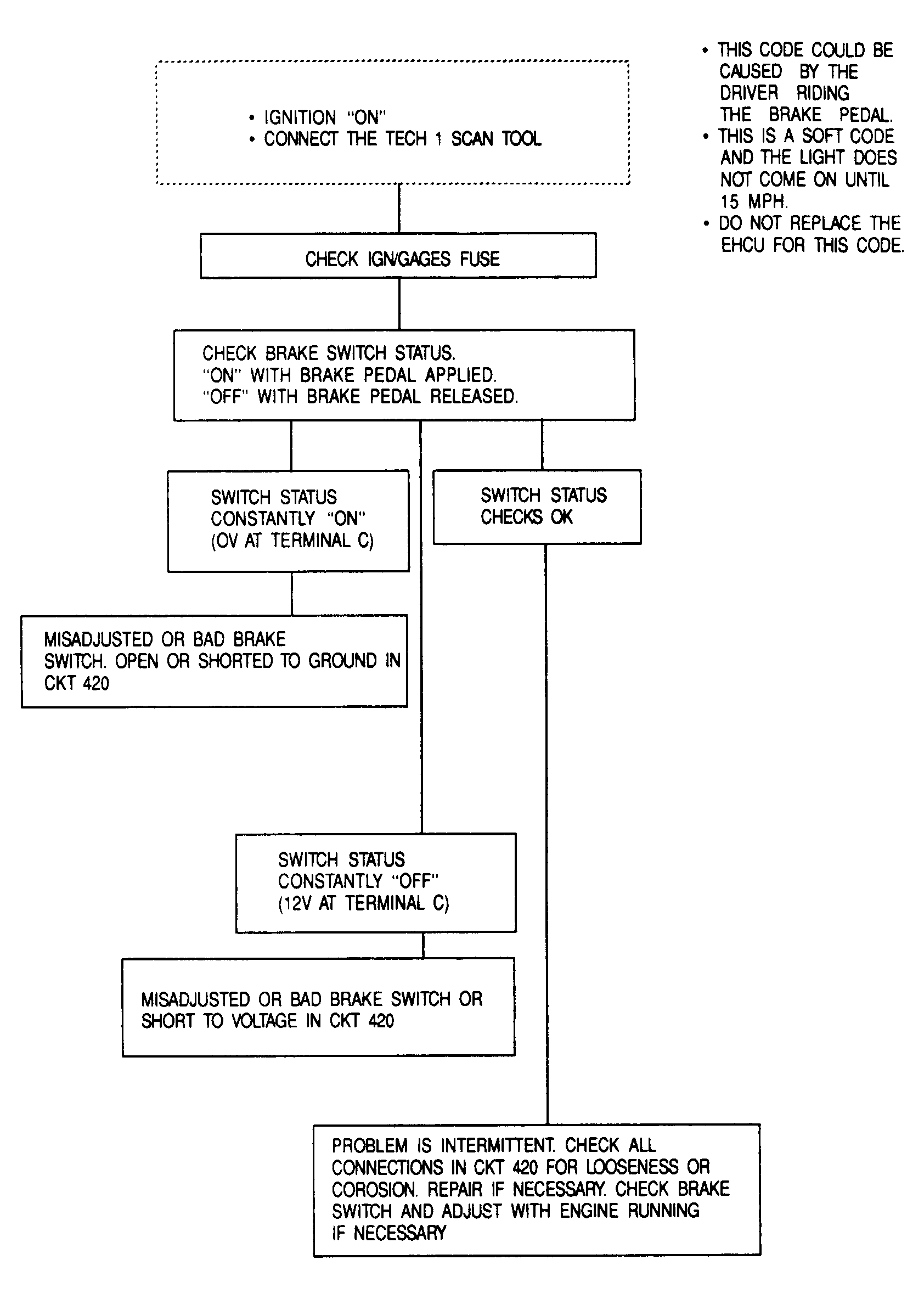

Fig 1: Code 81 - Brake Switch Circuit Open Or Shorted

G92H22142

Courtesy of GENERAL MOTORS CORP.
