Wiring Diagrams

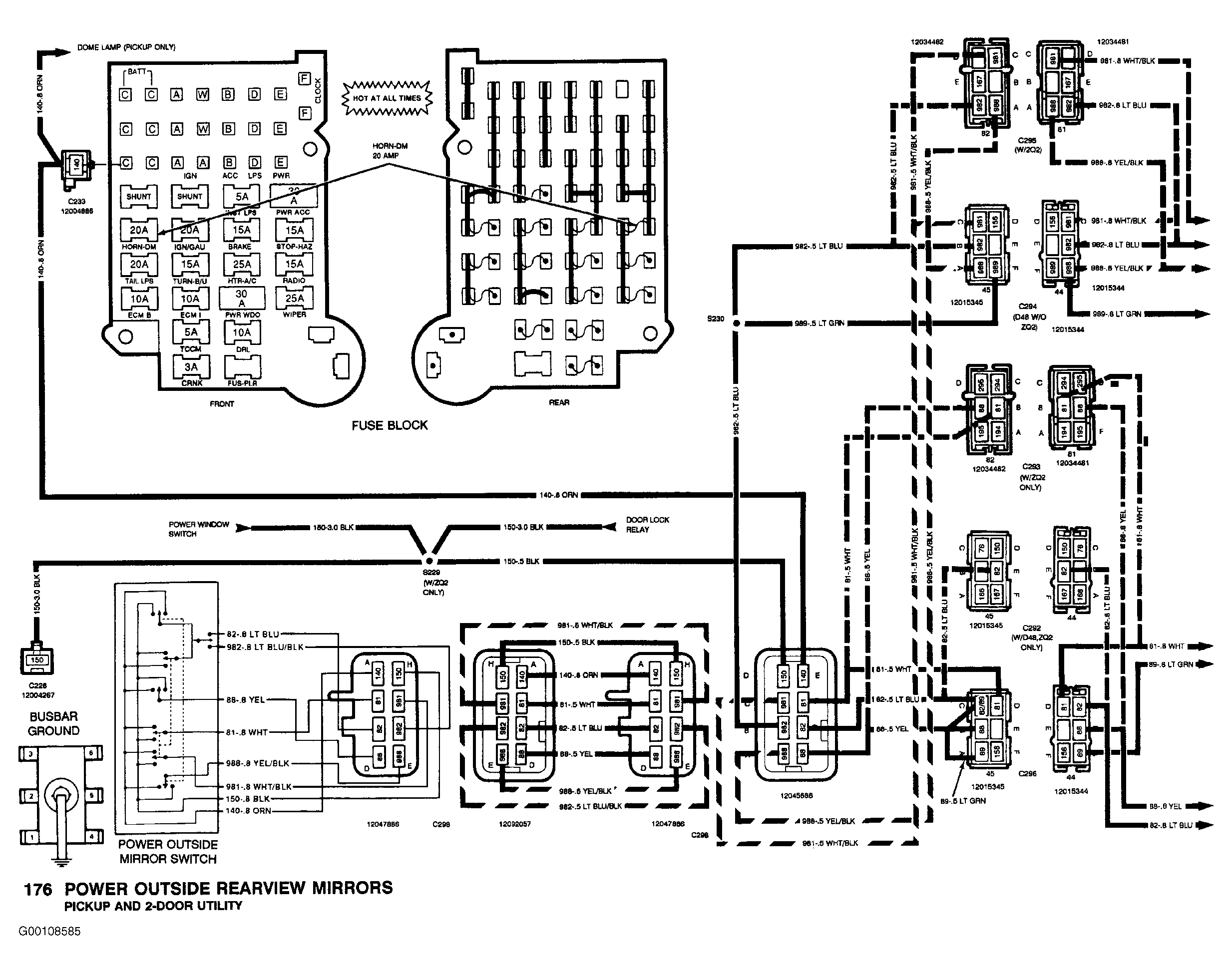

Fig 1: Power Outside Rearview Mirror Wiring Diagram (Pickup & 2-Door Utility - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

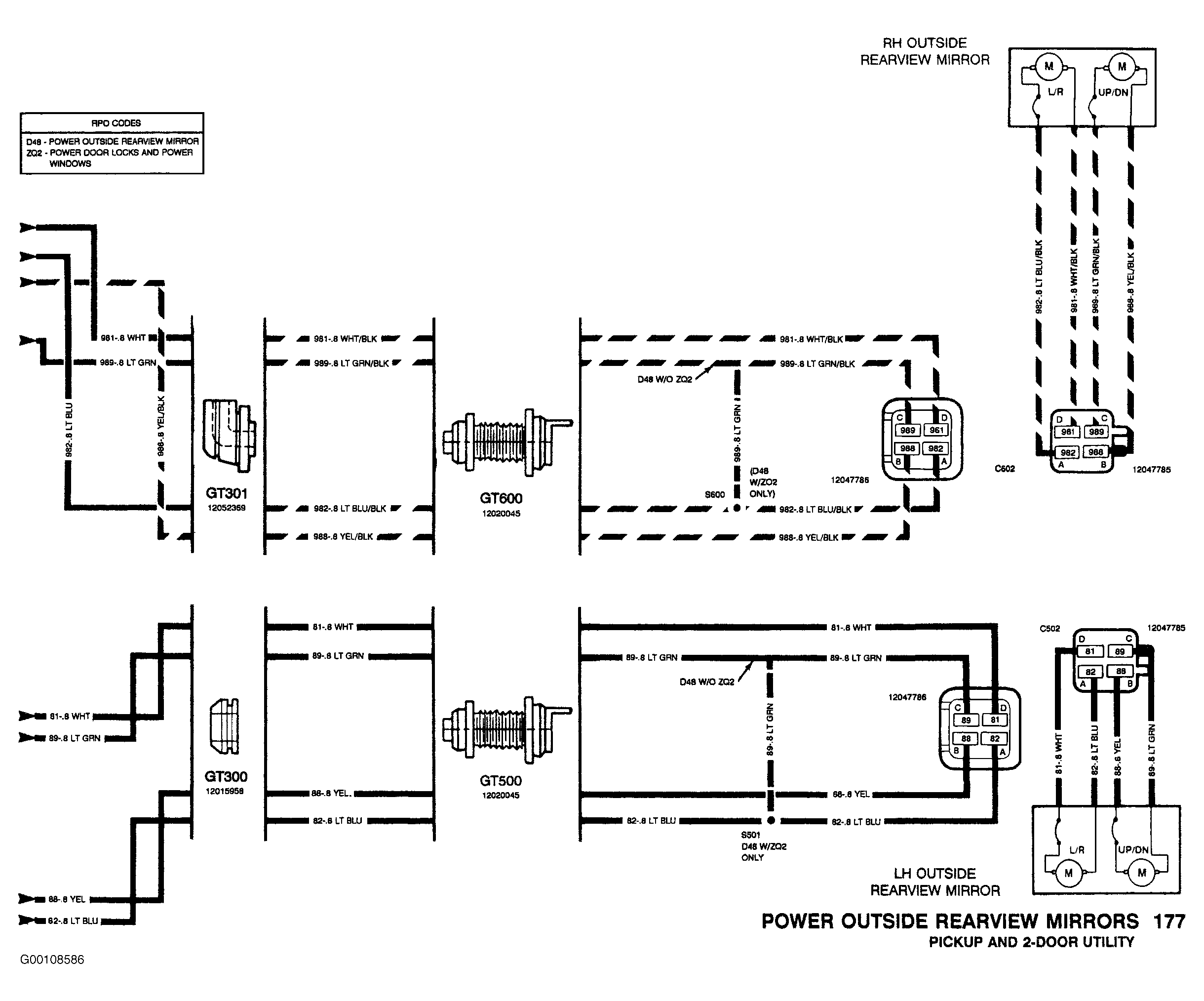

Fig 2: Power Outside Rearview Mirror Wiring Diagram (Pickup & 2-Door Utility - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

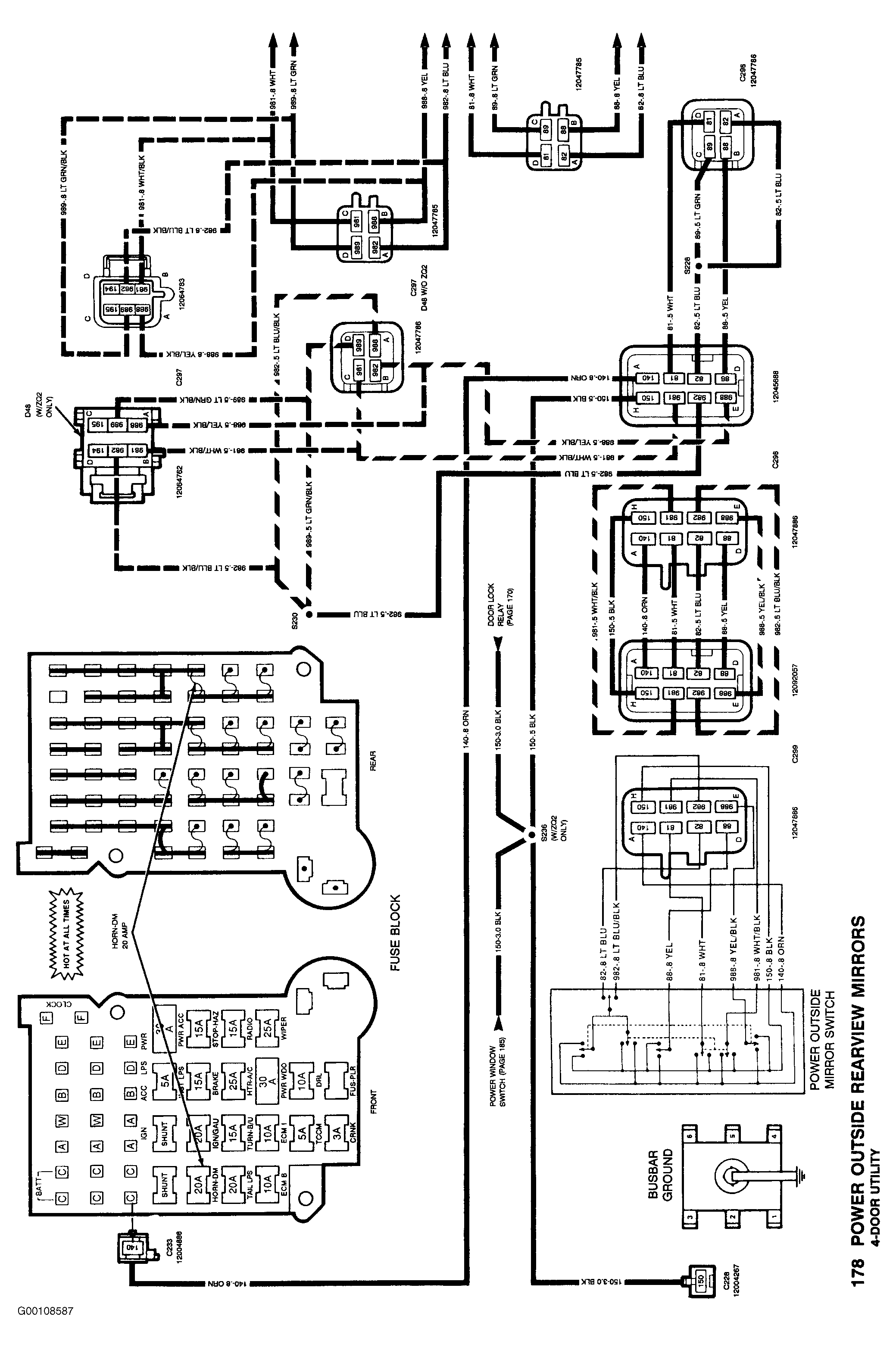

Fig 3: Power Outside Rearview Mirrors Wiring Diagram (4-Door Utility - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

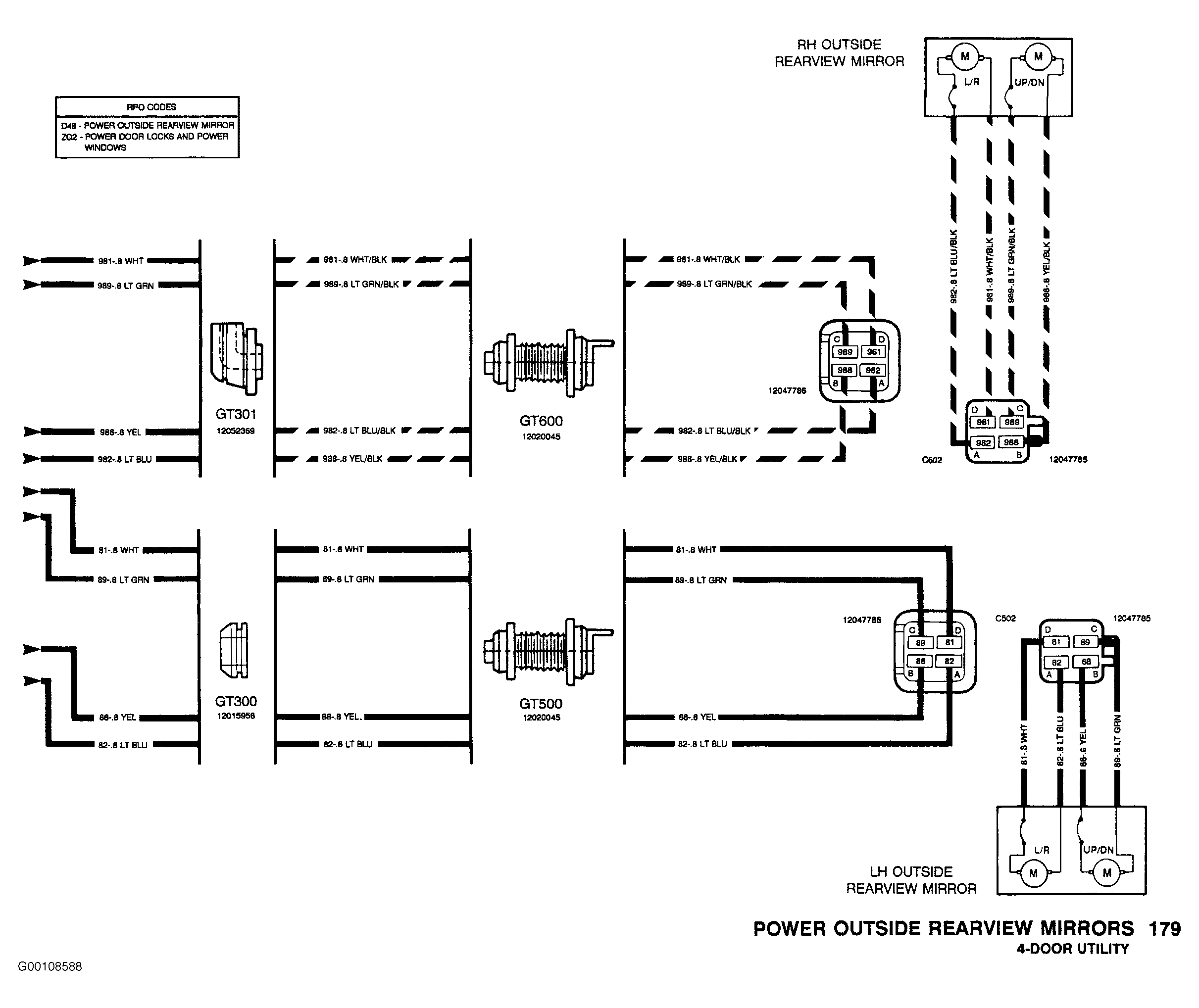

Fig 4: Power Outside Rearview Mirrors Wiring Diagram (4-Door Utility - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.
