Test C: Left Power Mirror Does Not Move Up & Down
Test C: Left Power Mirror Does Not Move Up & Down
If left power mirror does not move up and down, see
Fig 1
.

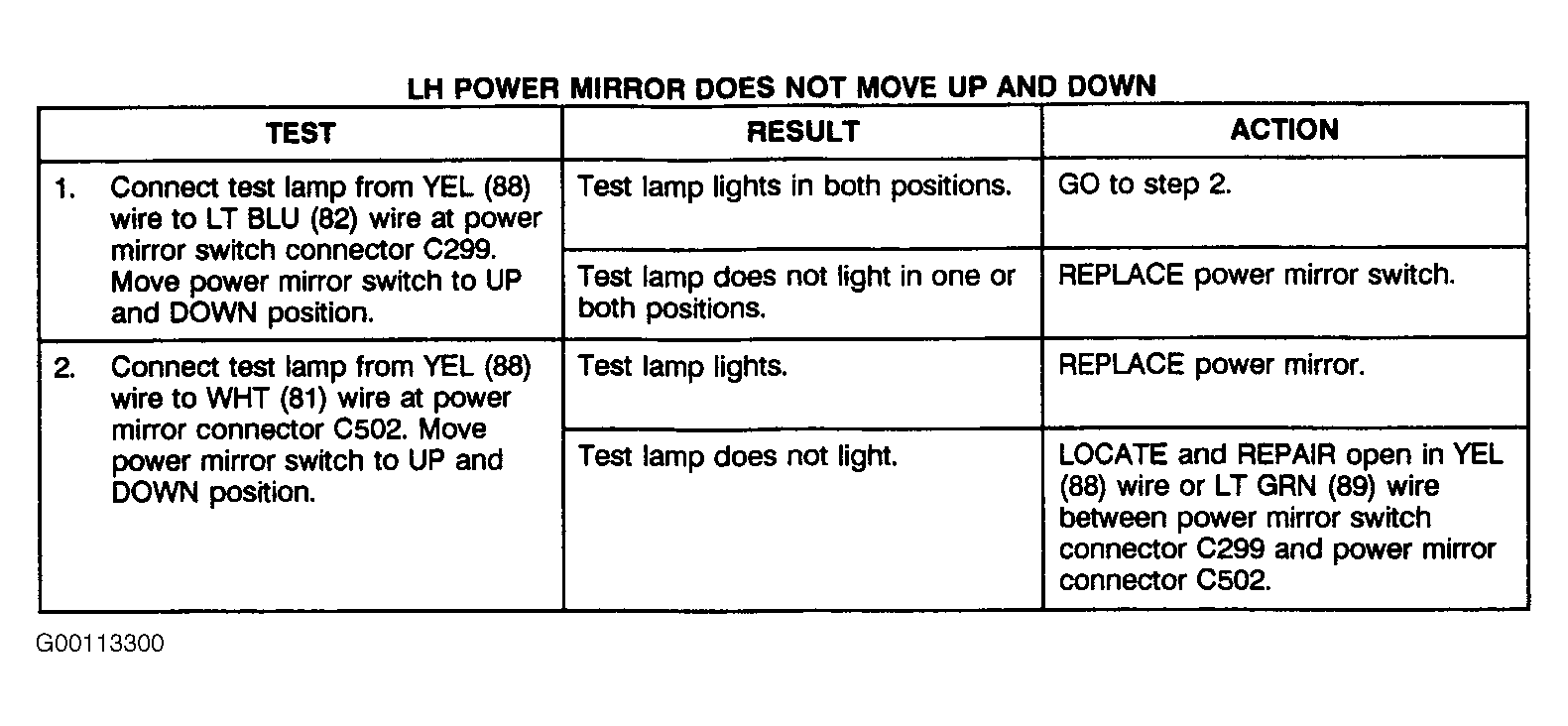

Fig 1: Left Mirror Does Not Move Up & Down
Courtesy of GENERAL MOTORS CORP.
