Component Locations

COMPONENT LOCATIONS

Component Location
Busbar Ground Behind Left Side Of Instrument Panel, On Instrument Panel Bracket. See Fig 1 .
Door Lock Motors In Lower Center Of Each Door. See Fig 2 .
Fuse Block Behind Left Side Of Instrument Panel. See Fig 3 .
C333 (6 Cavities) Behind Right Side Of Instrument Panel. See Fig 1 .
C334 (6 Cavities) Below Right Side Of Instrument Panel. See Fig 1 .
C335 (6 Cavities) Behind Left Side Of Instrument Panel. See Fig 1 .
C356 (2 Cavities) Right Cowl Side Panel. See Fig 5 .
C527 (6 Cavities) At Left "B" Pillar. See Fig 4 .
C627 (6 Cavities) At Right "B" Pillar. See Fig 4 .
Grommet 304 Front Of Left Door. See Fig 1 .
Grommet 305 Front Of Right Door. See Fig 1 .
Grommet 500 At Left Door. See Fig 2 .
Grommet 502 In Left "B" Pillar. See Fig 4 .
Grommet 600 At Right Door. See Fig 2 .
Grommet 602 In Right "B" Pillar. See Fig 4 .
S311 Cross Body Harness. See Fig 1 .
S500 Left Door Harness. See Fig 2 .
S600 Right Door Harness. See Fig 2 .
S601 Right Door Harness. See Fig 2 .

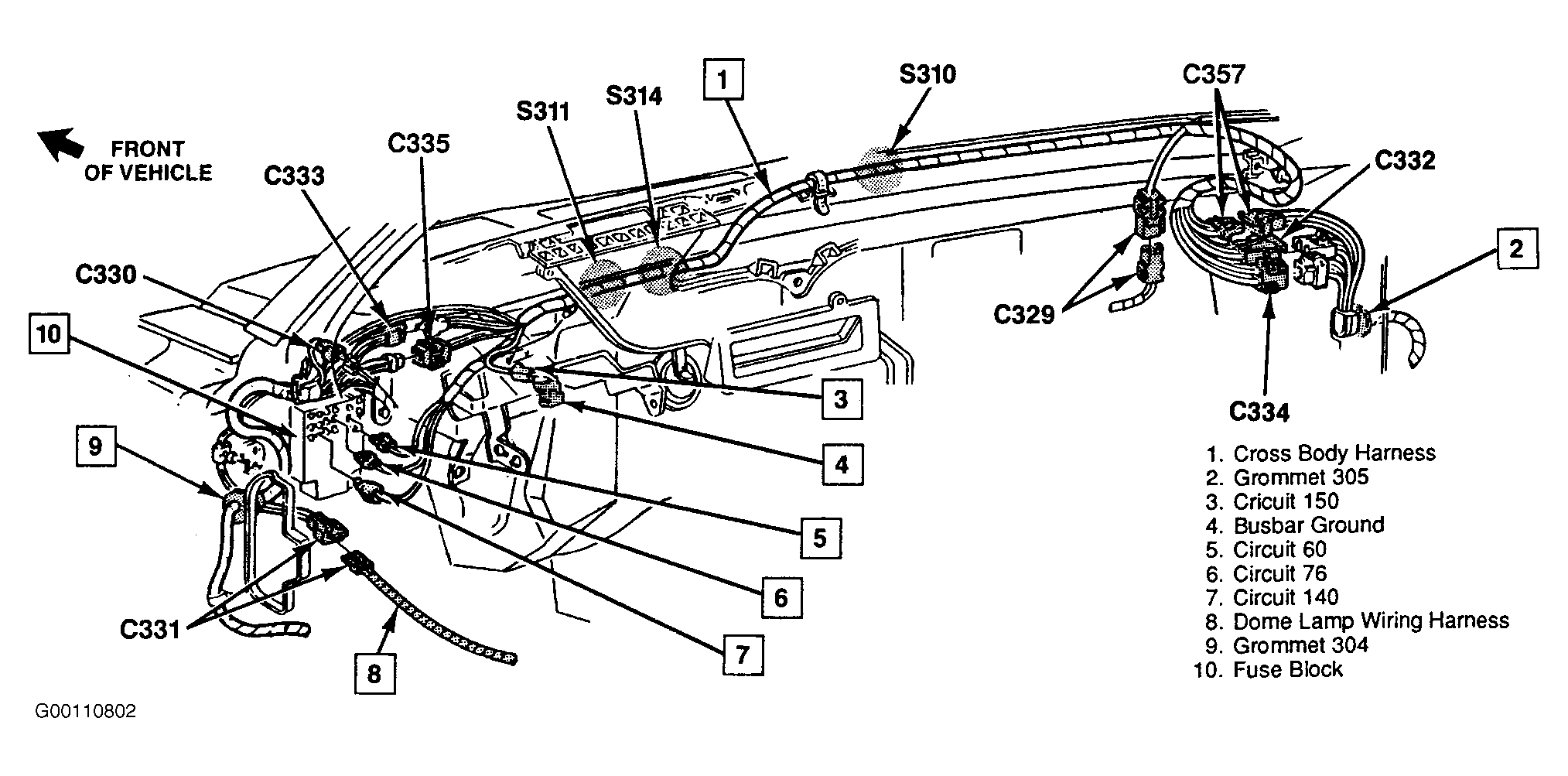

Fig 1: Locating Power Door Lock Body Wiring Components (W/O Power Mirrors, Except 4-Door Utility)
G00110802Courtesy of GENERAL MOTORS CORP.

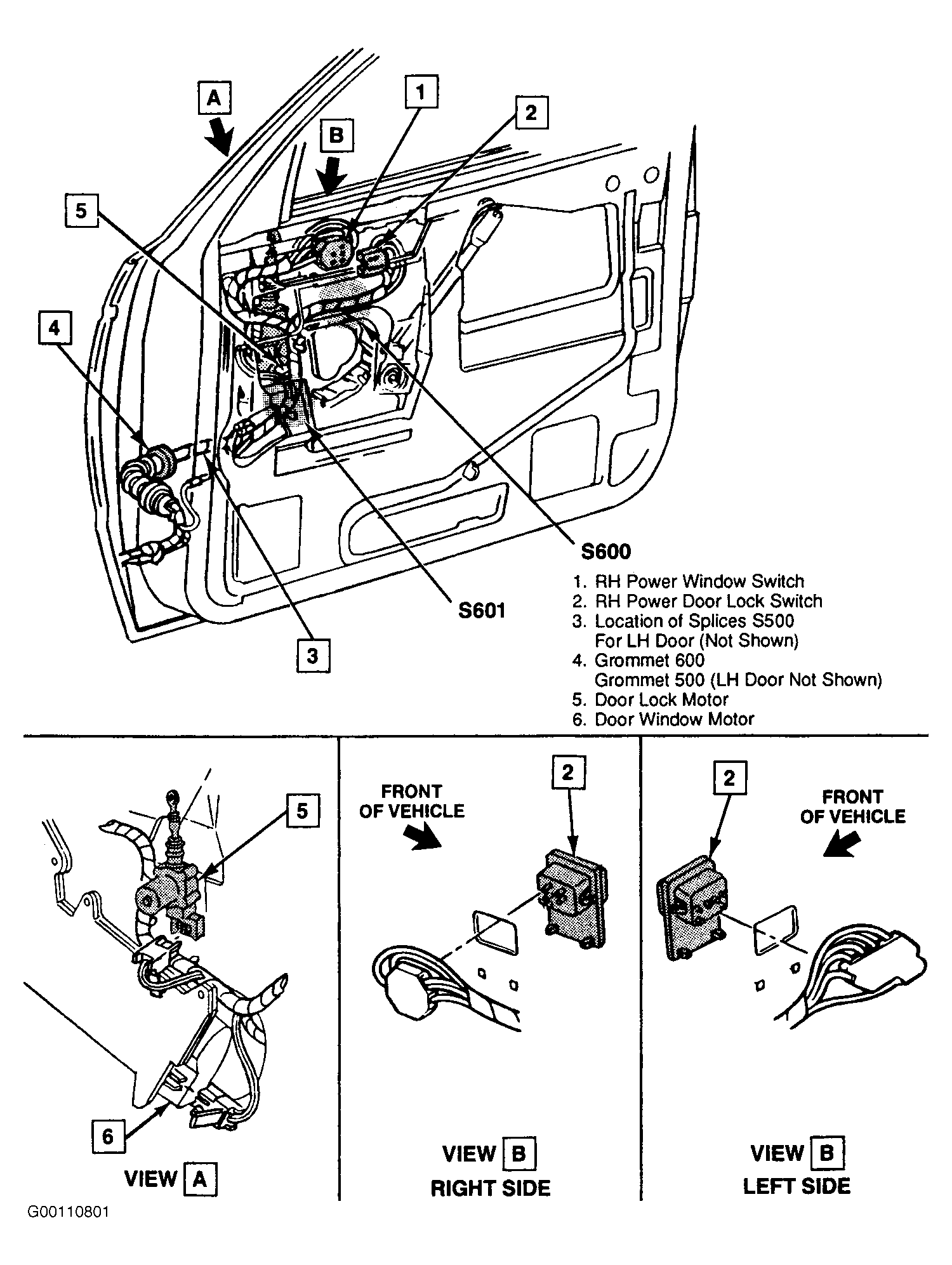

Fig 2: Locating Right Door Harness Components
G00110801Courtesy of GENERAL MOTORS CORP.

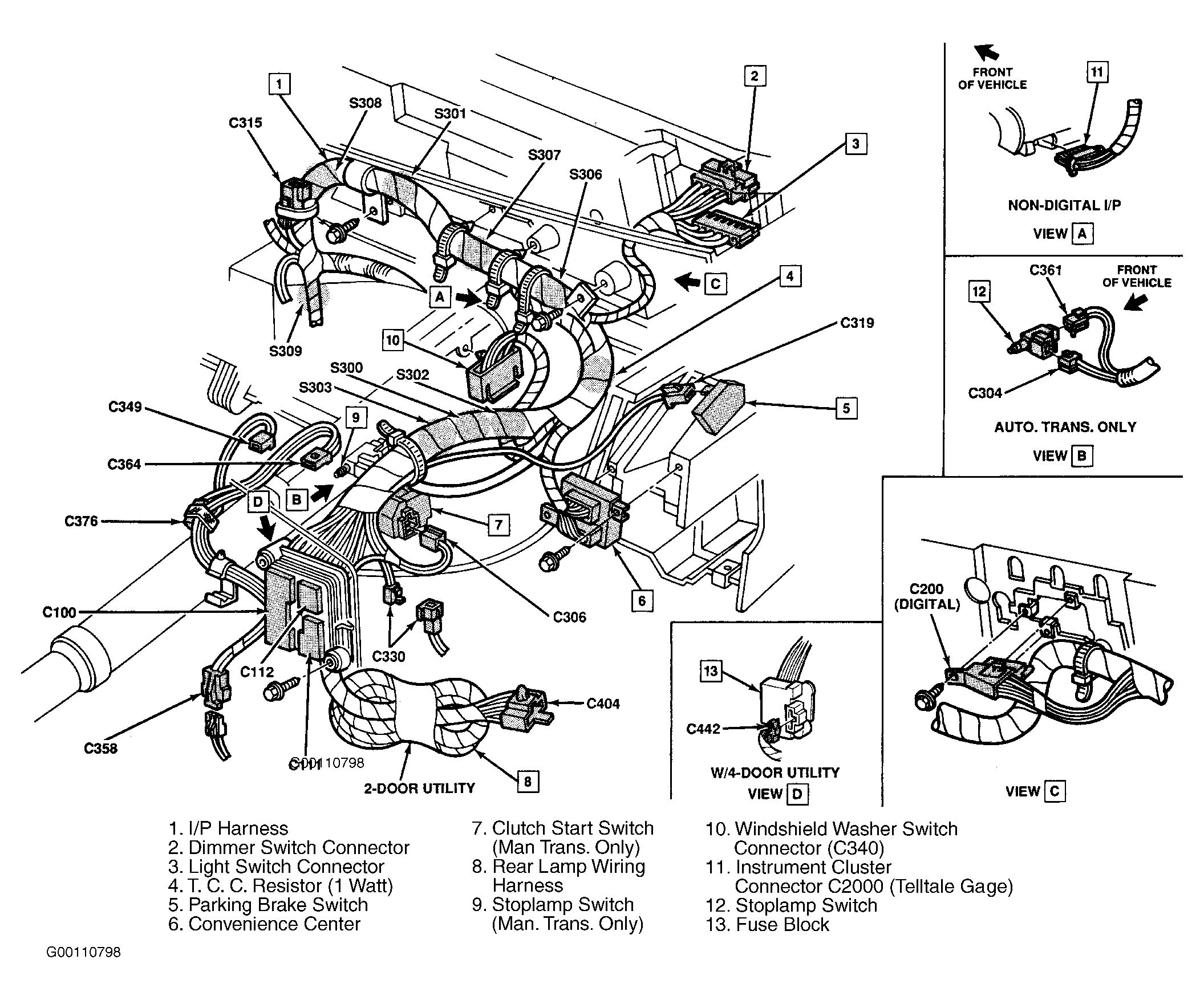

Fig 3: Locating Fuse Block
G00110798Courtesy of GENERAL MOTORS CORP.

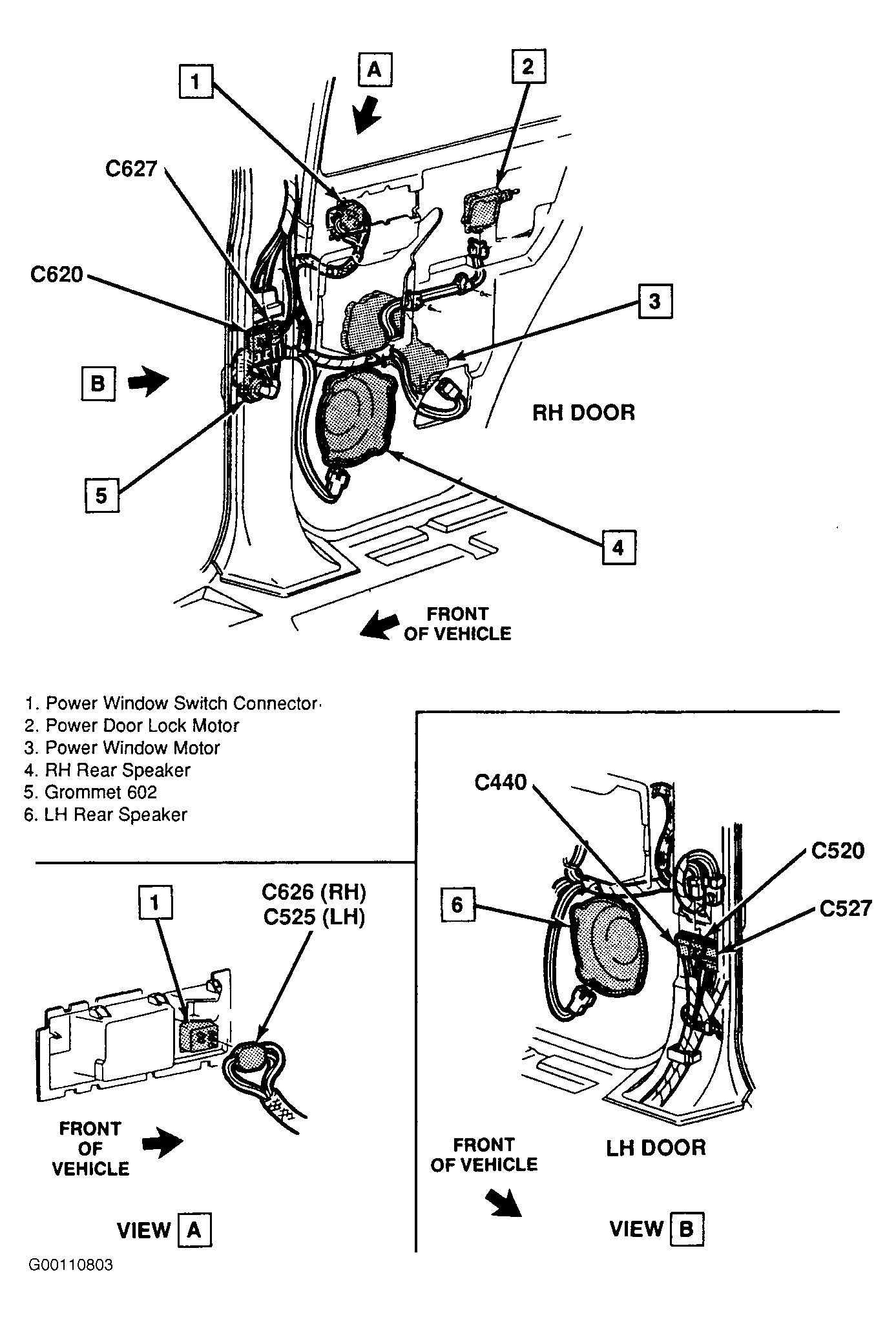

Fig 4: Locating Rear Door Components
G00110803Courtesy of GENERAL MOTORS CORP.

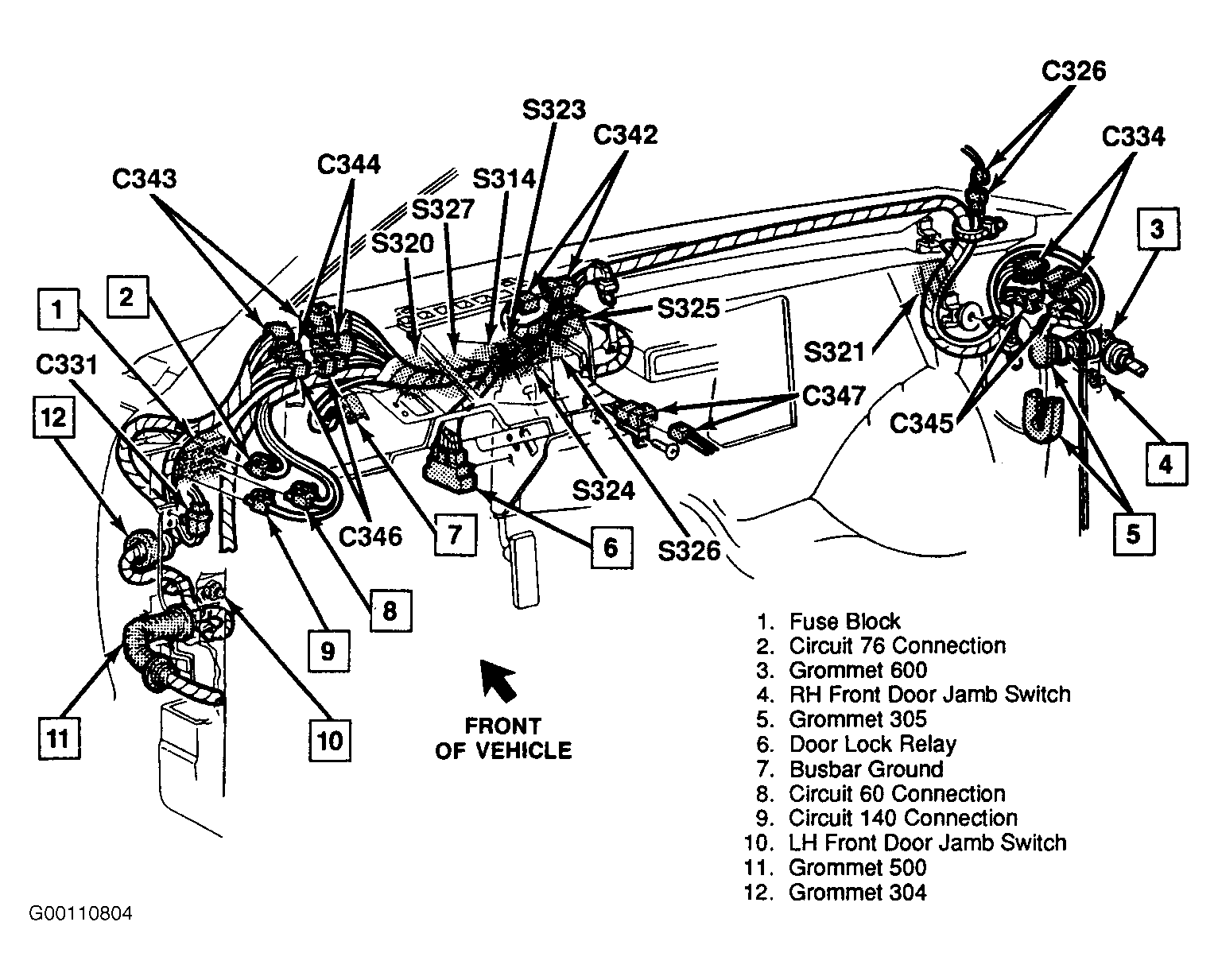

Fig 5: Locating Connector C356 (4-Door Utility W/Power Mirrors)
G00110804Courtesy of GENERAL MOTORS CORP.

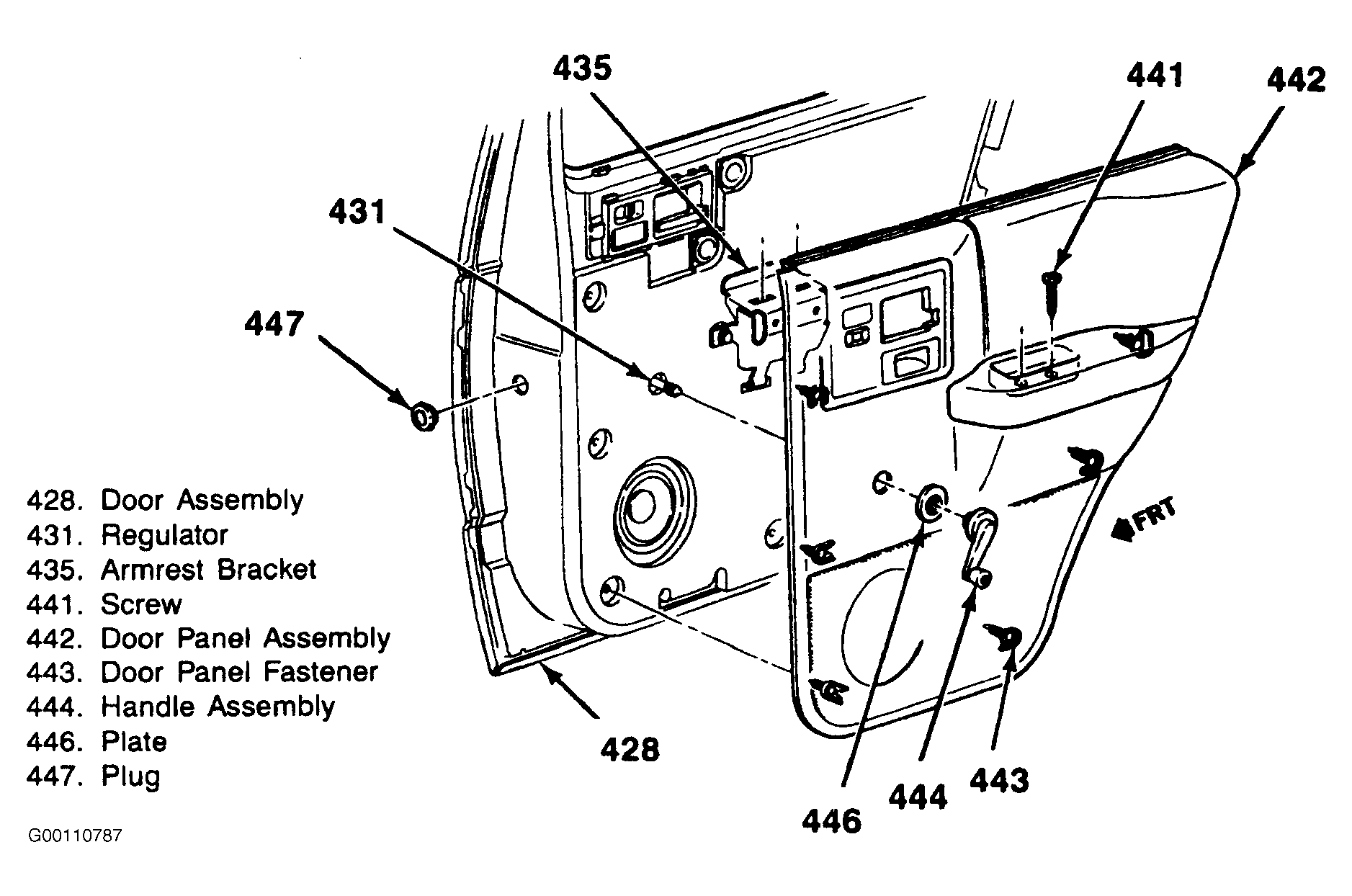

Fig 6: Locating Rear Door Trim Components
G00110787Courtesy of GENERAL MOTORS CORP.
