Idle Air Control - Vehicles Without 4L80-E Transmission
>>
Idle Air Control System Check Chart
>>
Notes
Idle Air Control System Check Chart: Notes
NOTE:
If a repair has been made refer to IAC RESET PROCEDURE before retesting.

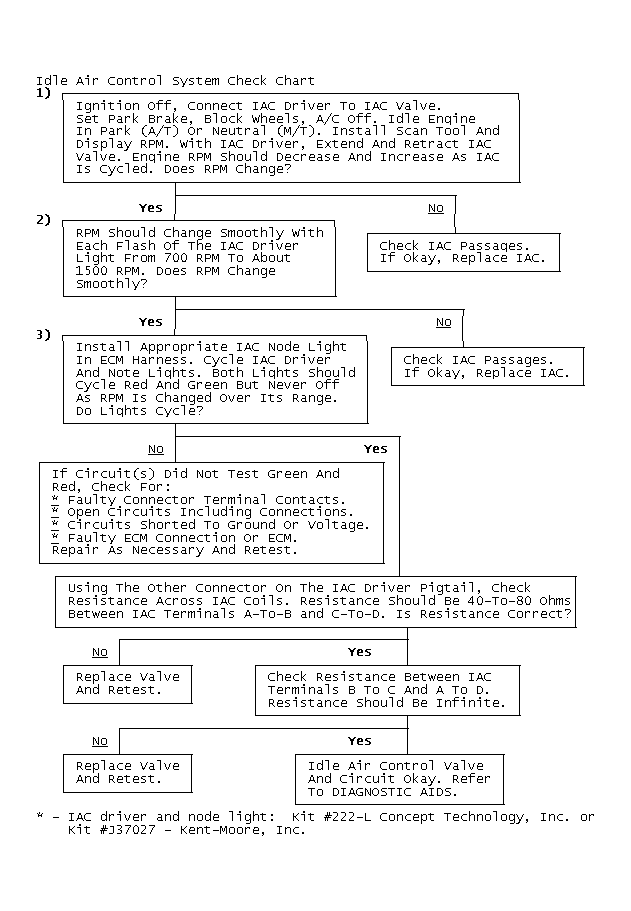

Fig 1: Idle Air Control System Check Chart
