Diagnostic Aids

If code is intermittent, see INTERMITTENTS in TESTS W/O CODES article. Check customer driving habits and/or unusual traffic conditions (i.e. stop and go expressway traffic).

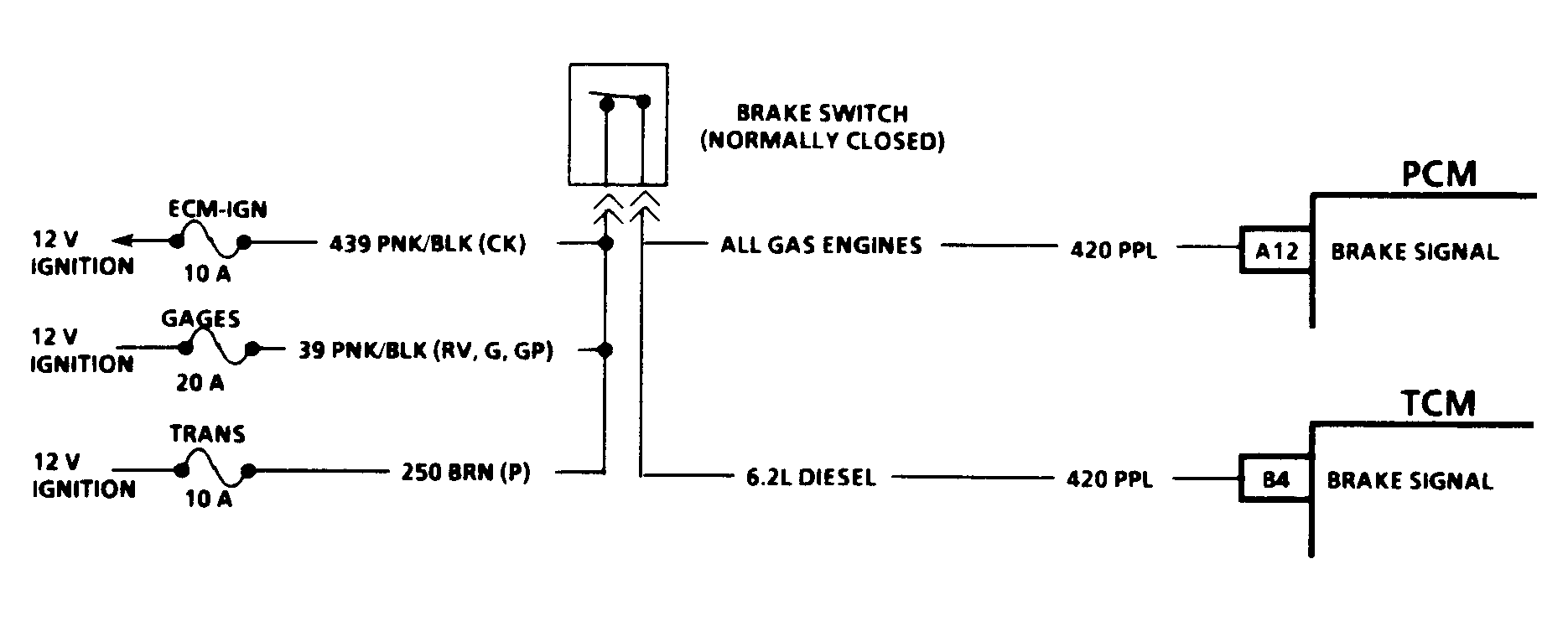

Fig 1: Brake Signal Circuit Check, Schematic

Courtesy of GENERAL MOTORS CORP.

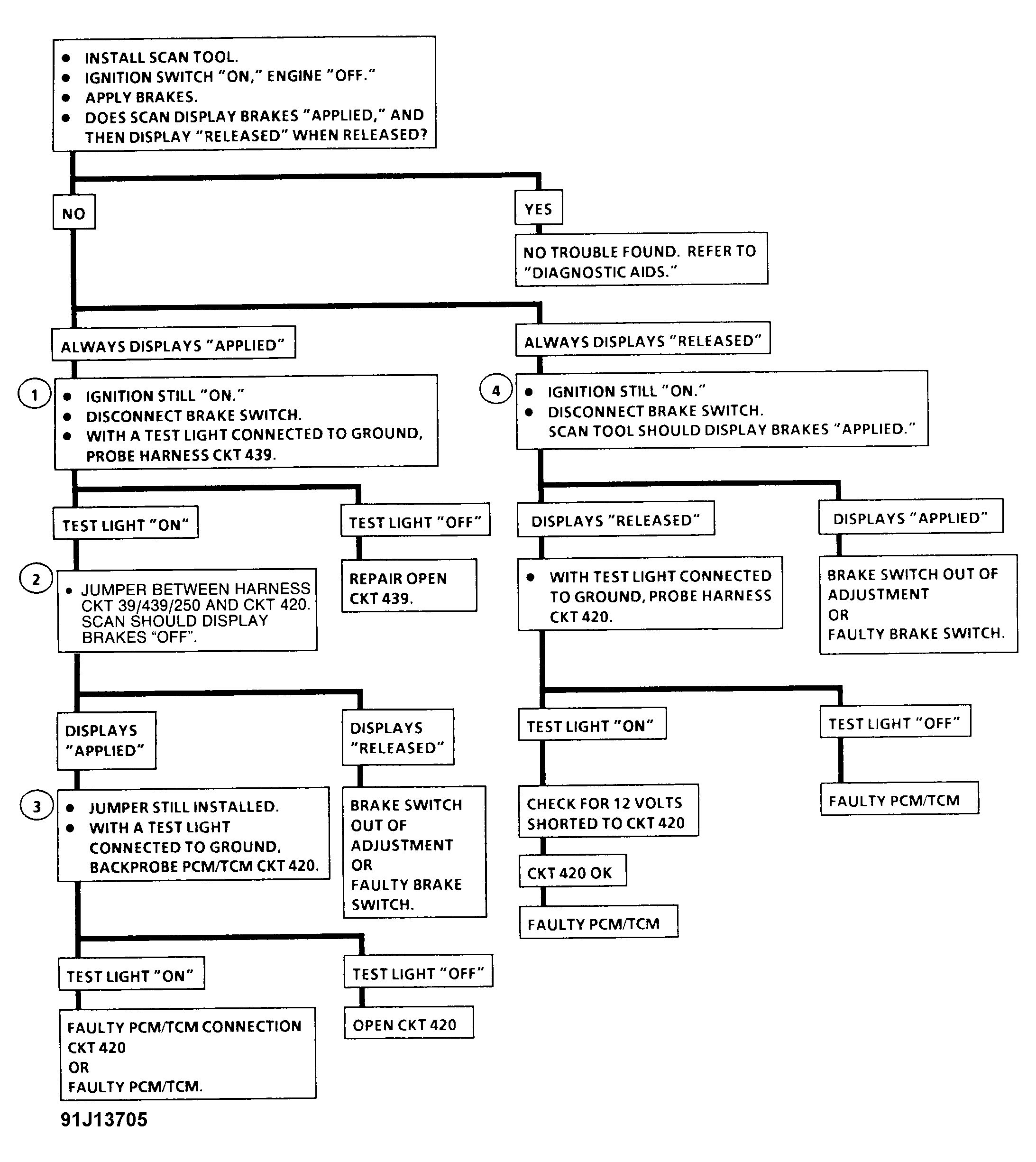

Fig 2: Brake Signal Circuit Check, Flow Chart

Courtesy of GENERAL MOTORS CORP.
