Wiring Diagrams

Fig 1: Power Window Wiring Diagram (2-Door & Extended Cab)

Courtesy of GENERAL MOTORS CORP.

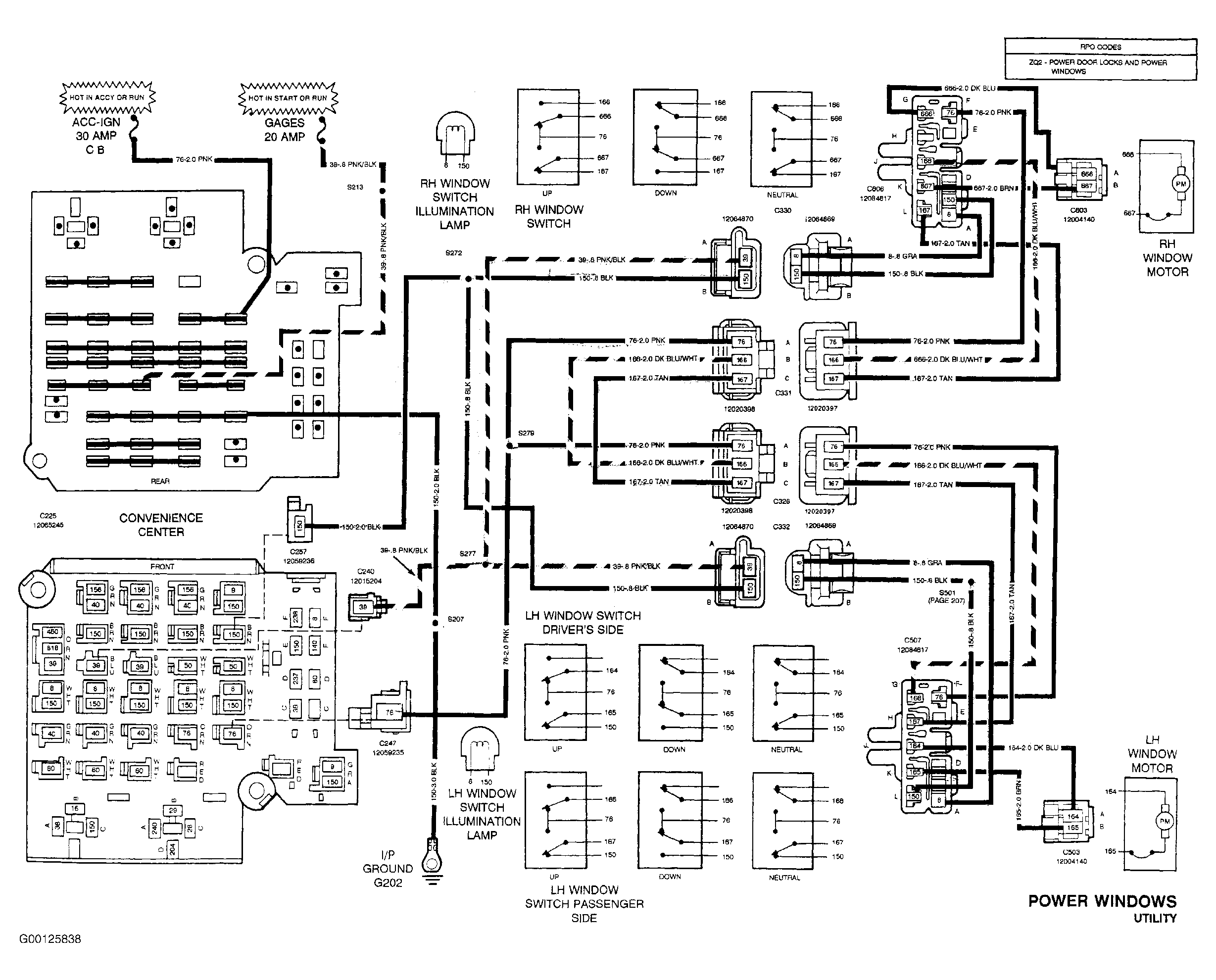

Fig 2: Power Window Wiring Diagram (Utility)

Courtesy of GENERAL MOTORS CORP.

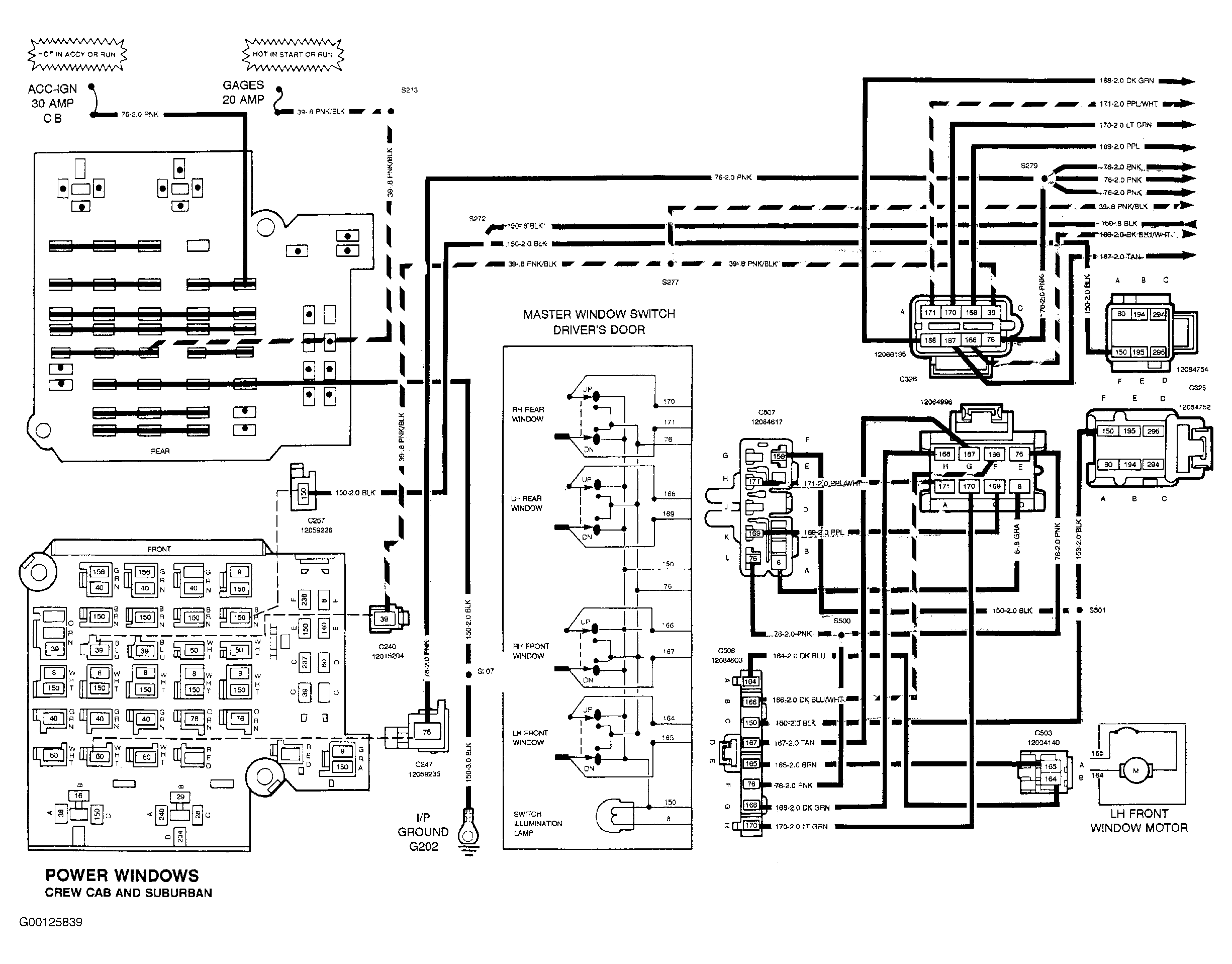

Fig 3: Power Window Wiring Diagram (Crew Cab & Suburban - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

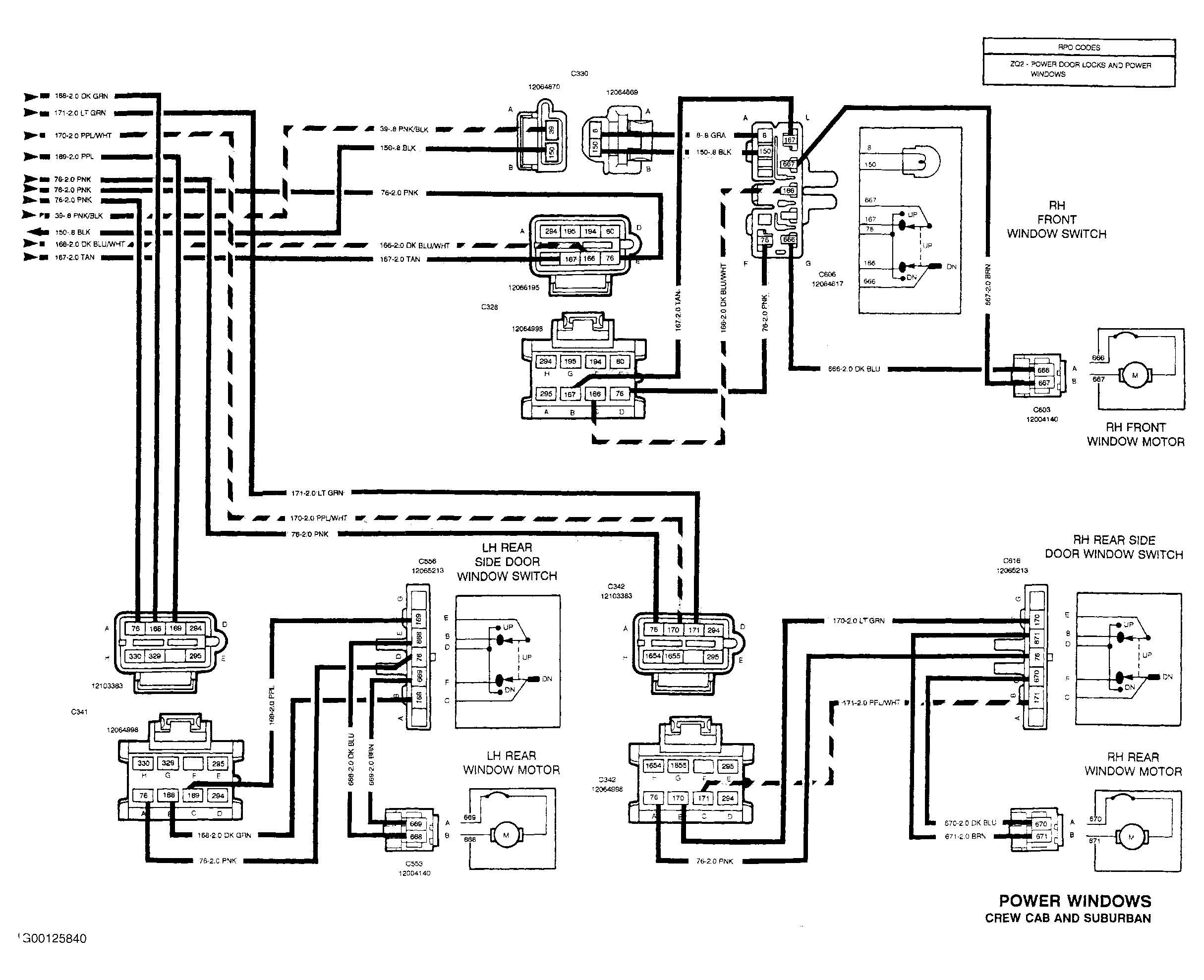

Fig 4: Power Window Wiring Diagram (Crew Cab & Suburban - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.
