Component Locations

NOTE: Door lock actuators may also be referred to as motors.

For aid in locating components, see Fig 1 -Fig 3 .

COMPONENT LOCATIONS

Component	Location
Convenience Center	Behind Left Side of Instrument Panel, Left Of Steering Column
Instrument Panel Ground G202	Behind Left Side Of Instrument Panel, On Assembly Line Diagnostic Link Bracket. See Fig 2 .
Left Lock Motor	Upper Rear Of Left Door. See Fig 3 .
Left Lock Switch	Center Front Of Left Door
Right Lock Motor	Upper Rear Of Right Door. See Fig 3 .
Right Lock Switch	Center of Right Door

Fig 1: Identifying Convenience Center Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 2: Locating Instrument Panel Ground G202

Courtesy of GENERAL MOTORS CORP.

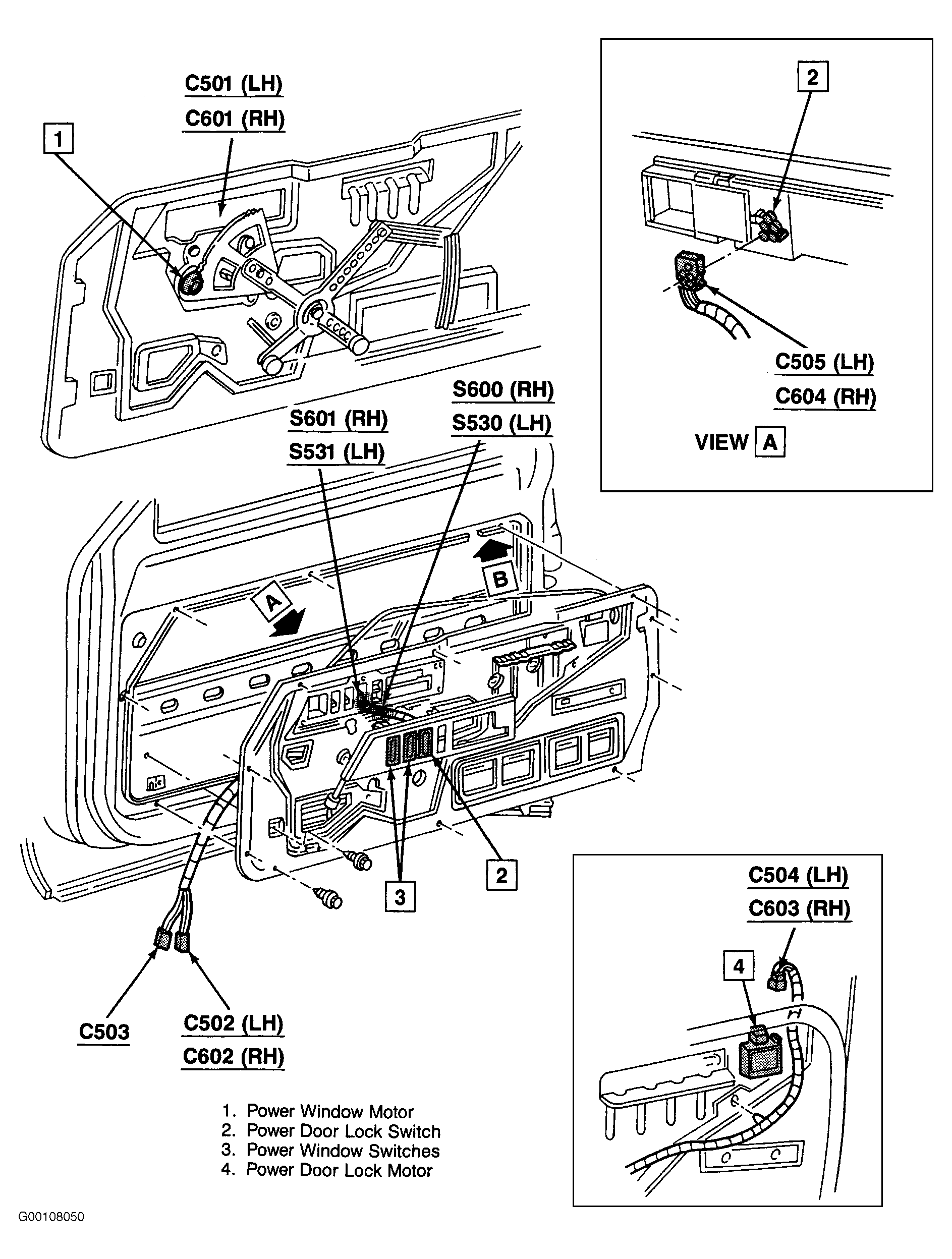

Fig 3: Identifying/Locating Door Lock Motors & Switches

Courtesy of GENERAL MOTORS CORP.
