Washer Inoperative

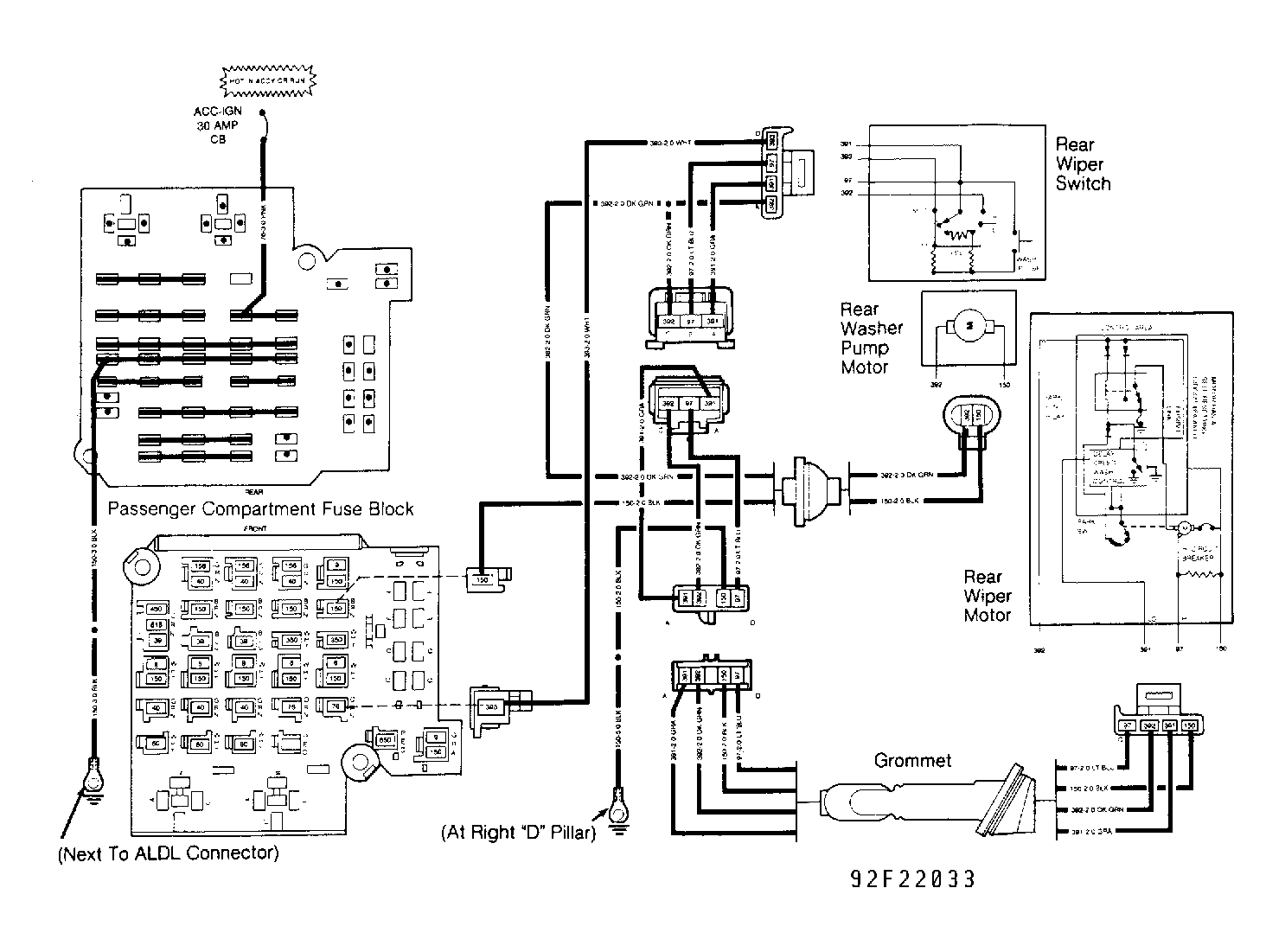

- Turn ignition switch to ACC or RUN position. Turn wiper switch to WASH position. Connect test light between ground and Dark Green wire terminal of wiper switch. See Figure . If test light does not come on, replace wiper switch.
- If test light comes on, disconnect washer pump motor connector. Connect test light between ground and Dark Green wire terminal of washer pump motor connector. If test light does not come on, repair open in Dark Green wire between washer pump motor and wiper switch.
- If test light comes on, connect test light between Dark Green and Black wire terminals of washer pump motor connector. If test light comes on, replace washer pump motor. If test light does not come on, repair open in Black wire between washer pump motor and ground.
