Diagnostic Aids

Check for poor connections at PCM/TCM and transmission pass-thru connector.

Fig 1: Code 73 Schematic - Force Motor Current (Current Error)
G91E13684

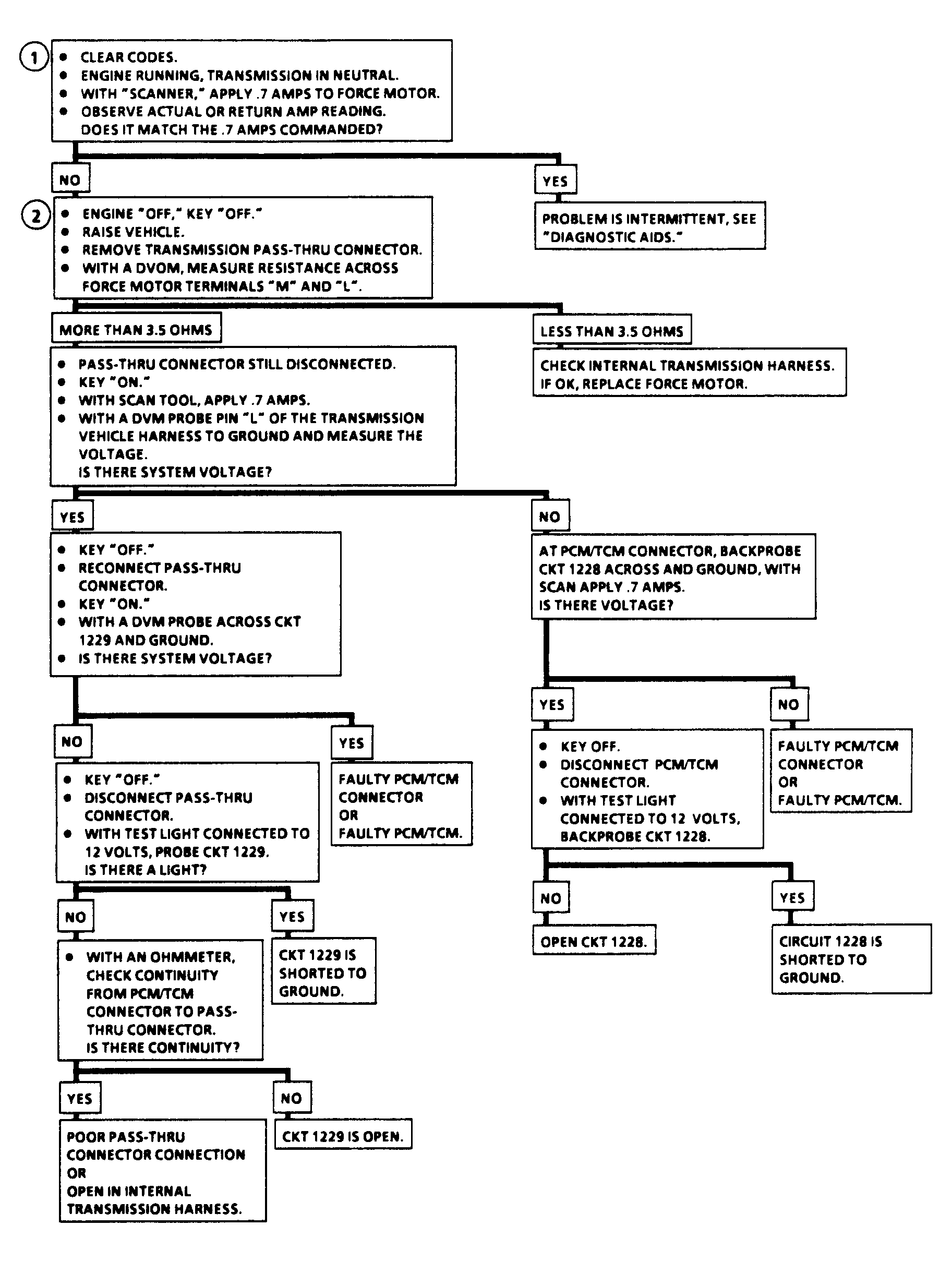

Fig 2: Code 73 Flow Chart - Force Motor Current (Current Error)
G91F13685
