Test E: Tailgate Window Does Not Operate From Key-Operated Tailgate Window Switch

For test procedure, refer to illustration. See Fig 1 .

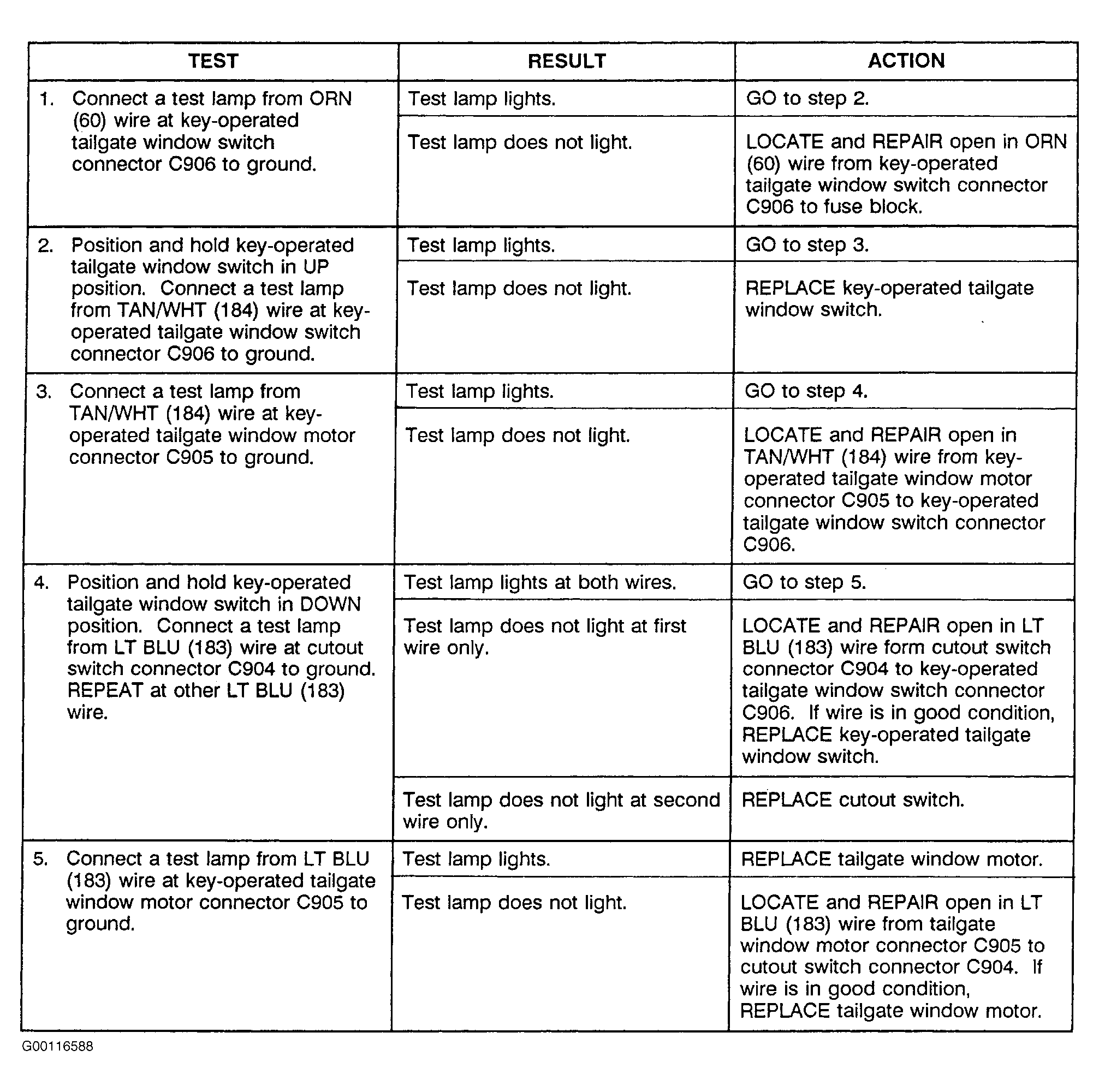

Fig 1: Test E: Tailgate Window Does Not Operate From Key-Operated Tailgate Window Switch
G00116588Courtesy of GENERAL MOTORS CORP.
