Test C: Power Windows Do Not Operate From Driver's Side Window Switch

For test procedure, refer to illustration. See Fig 1 .

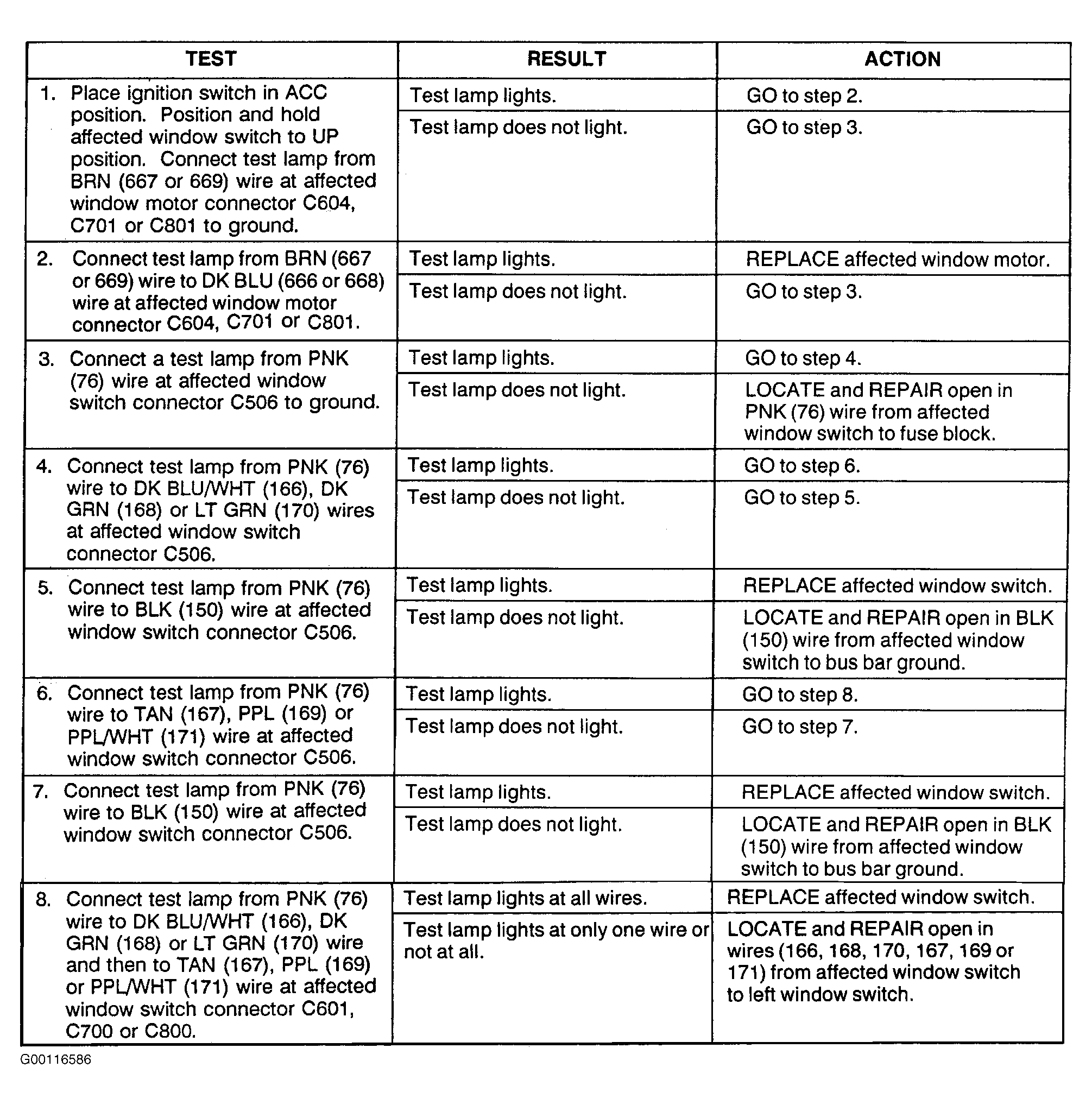

Fig 1: Test C: Power Windows Do Not Operate From Driver's Side Window Switch
G00116586Courtesy of GENERAL MOTORS CORP.
