Test B: Power Windows Only Operate From Driver's Side Window Switch

For test procedure, refer to illustration. See Fig 1 .

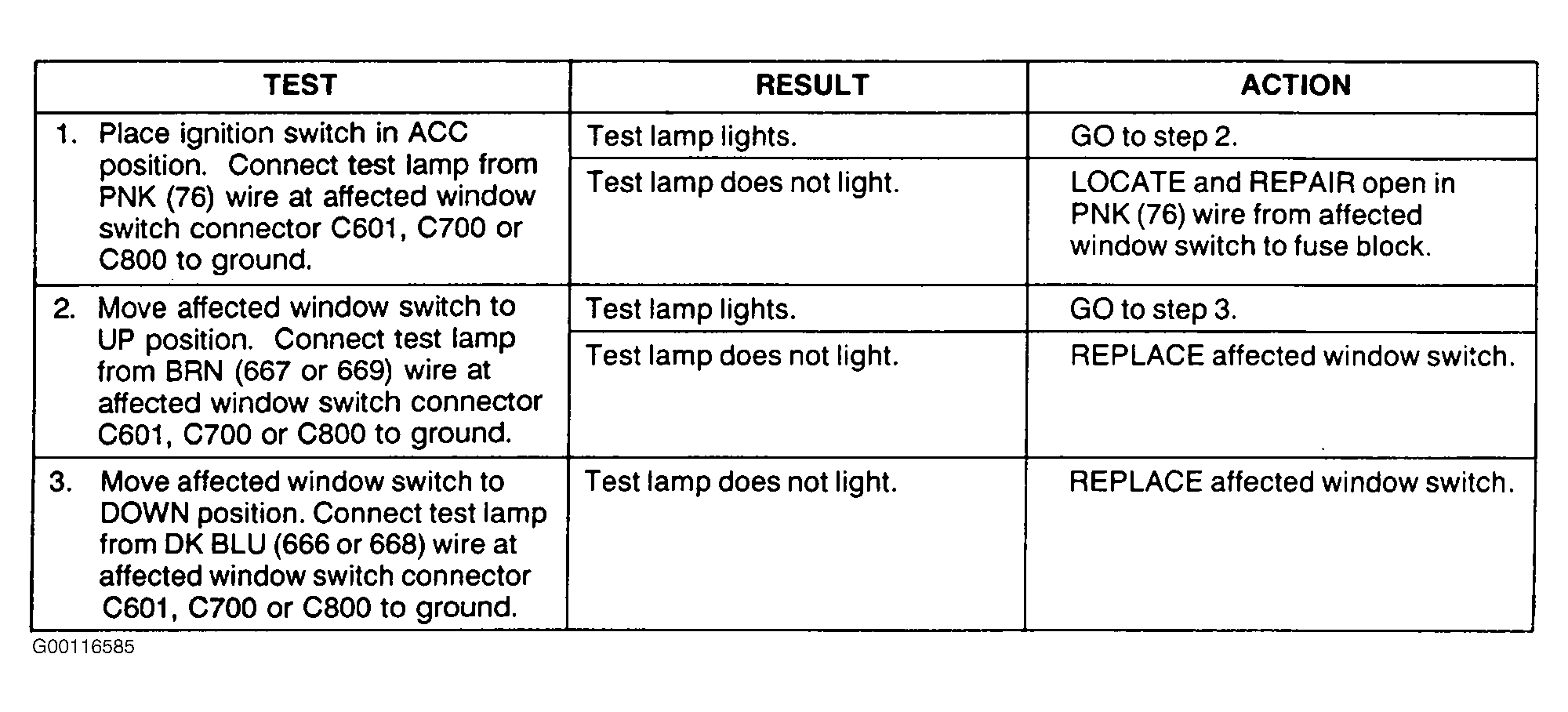

Fig 1: Test B: Power Windows Only Operate From Driver's Side Window Switch

Courtesy of GENERAL MOTORS CORP.
