Diagnostic Aids

Check all connections, especially at the transmission pass-thru connector. If code is intermittent, see INTERMITTENTS in the TESTS W/O CODES article in this section.

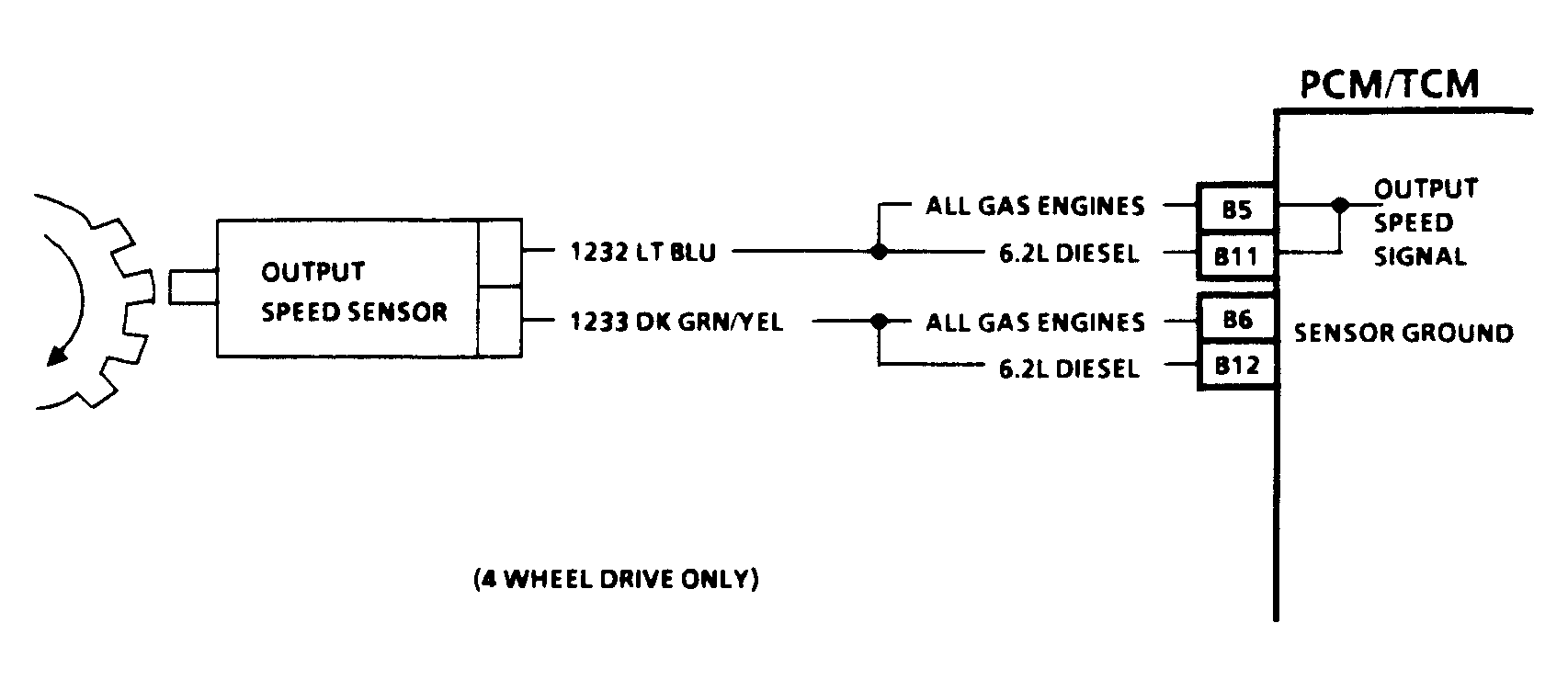

Fig 1: Output Speed Sensor Ckt. Schematic (4WD Vehicles)
G91E13700

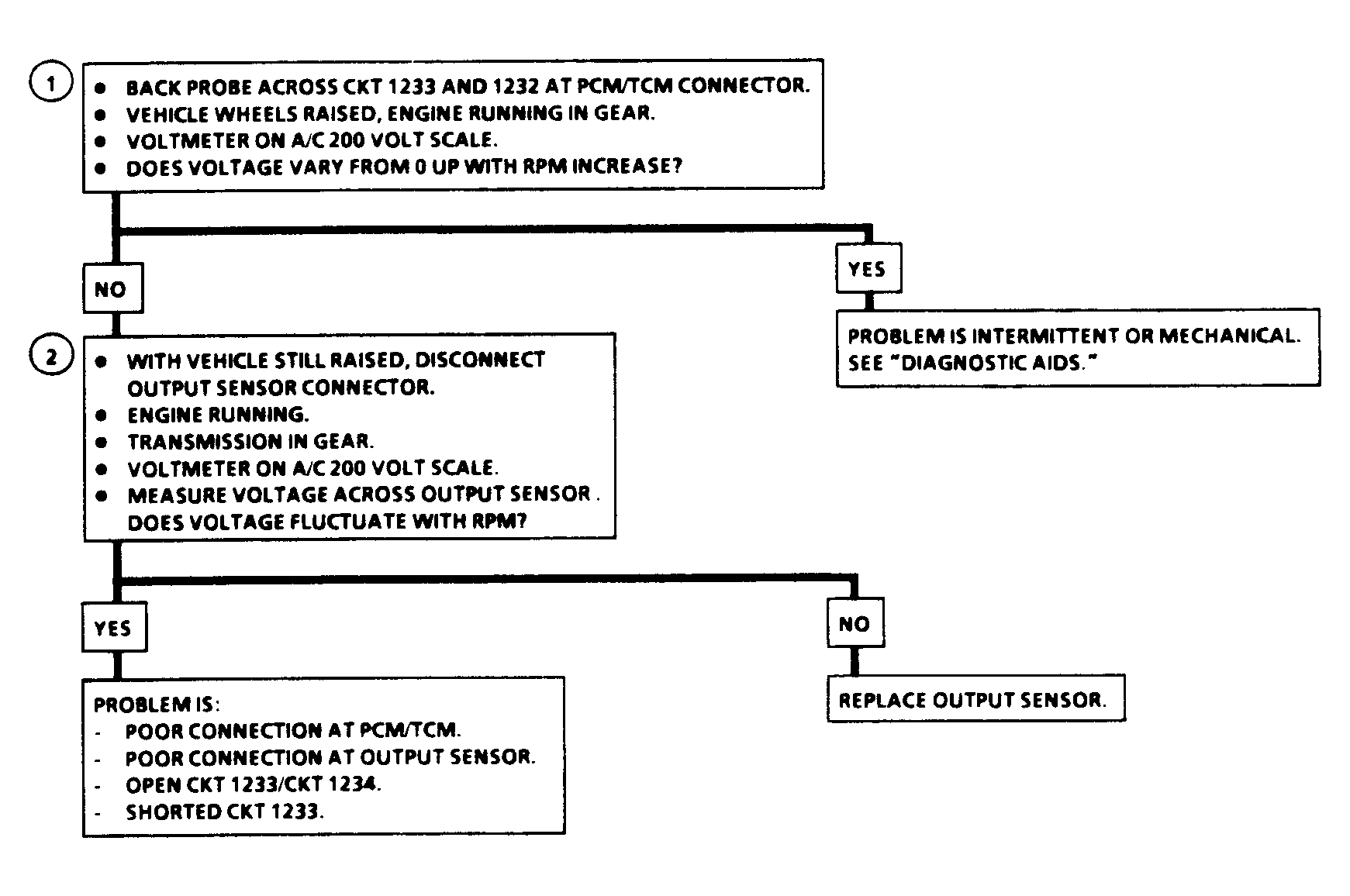

Fig 2: Output Speed Sensor Ckt. Flow Chart (4WD Vehicles)
G91F13701
