Test A: Neither Mirror Is Operational

To perform Test A, see Fig 1 .

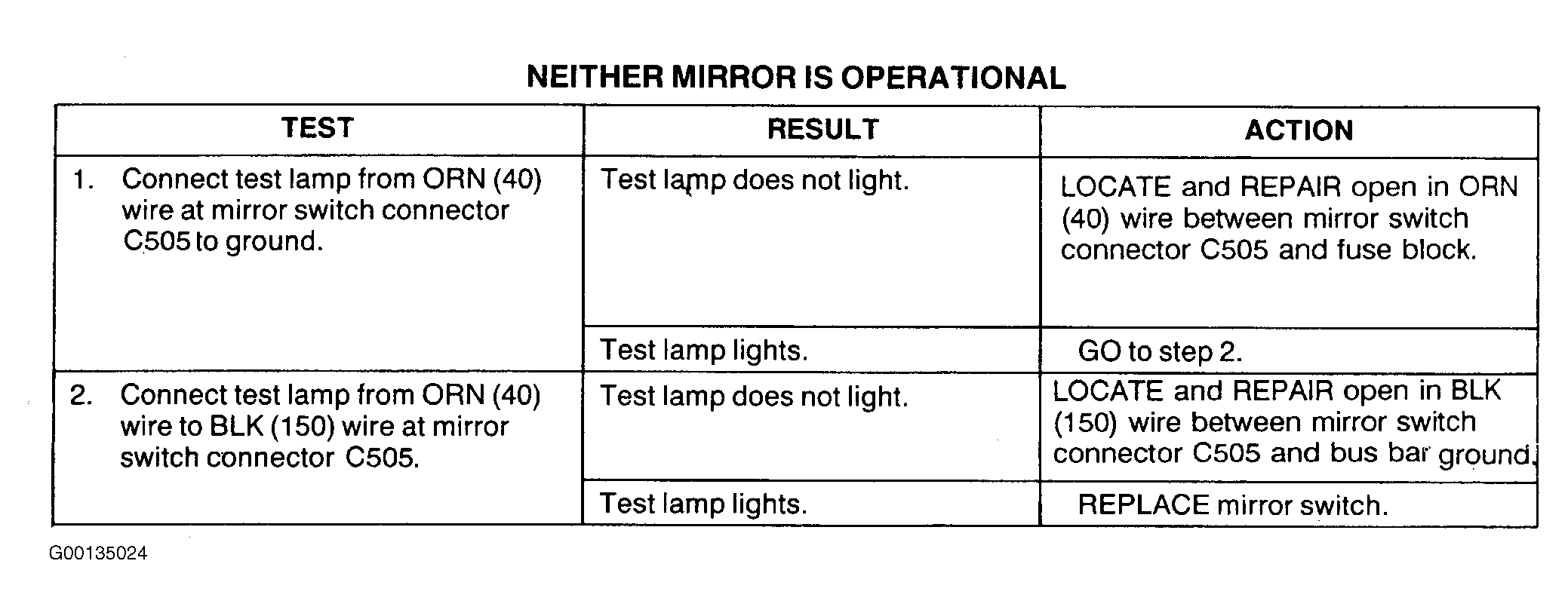

Fig 1: Test A: Neither Mirror Is Operational

G00135024

Courtesy of GENERAL MOTORS CORP.
