Test F: One Door Lock Will Not Work
Test F: One Door Lock Will Not Work
If one door lock will not work, see
Fig 1
.

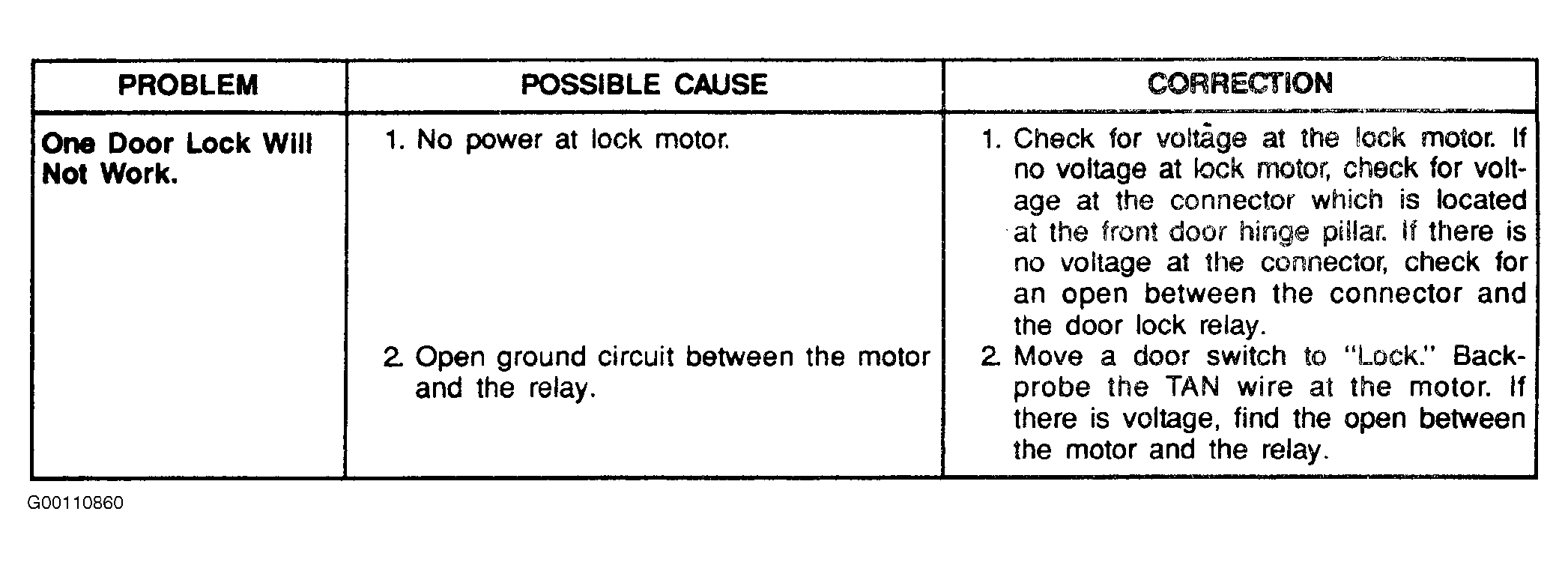

Fig 1: Test F: One Door Lock Will Not Work
Courtesy of GENERAL MOTORS CORP.
