Component Locations

COMPONENT LOCATIONS

Component	Location

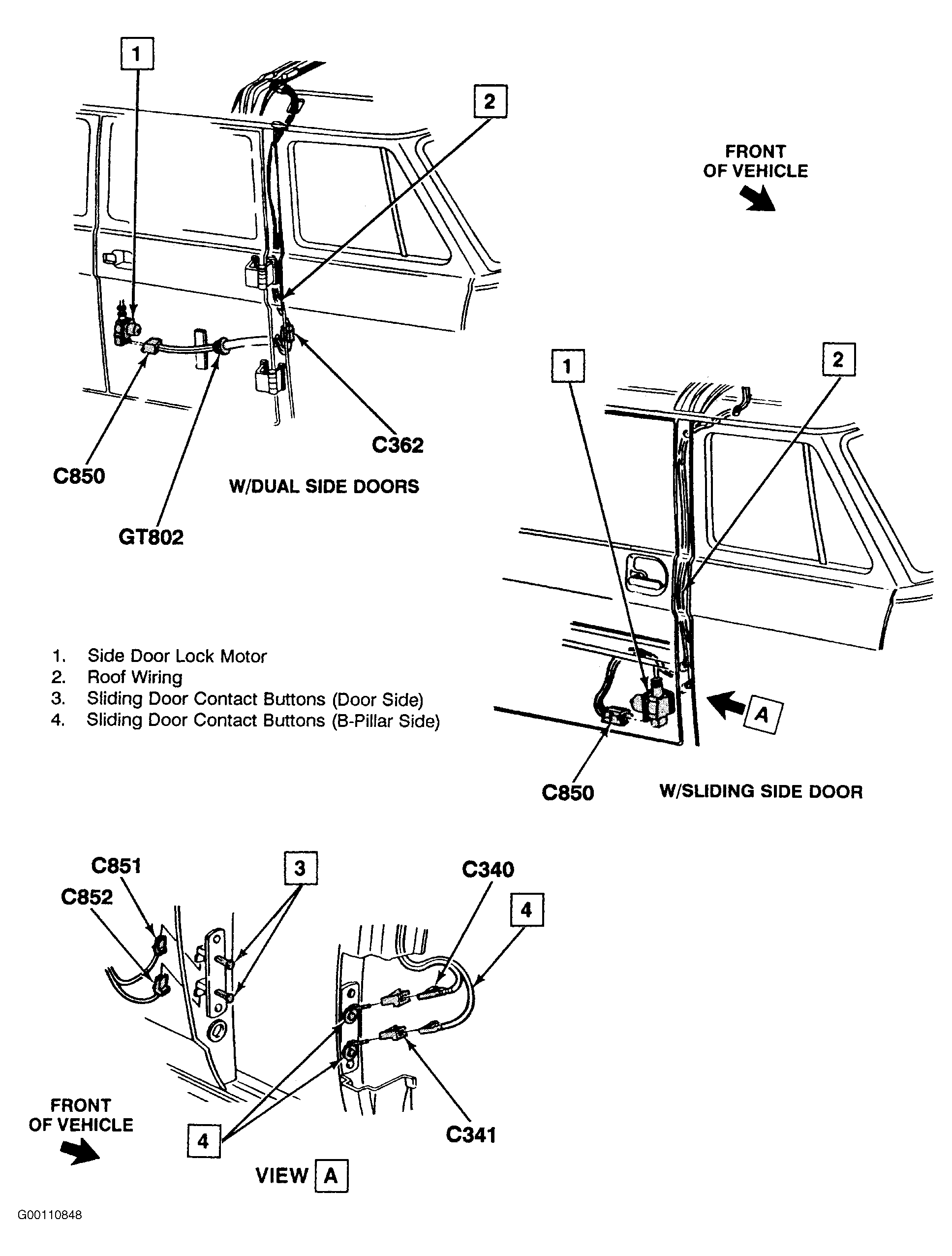

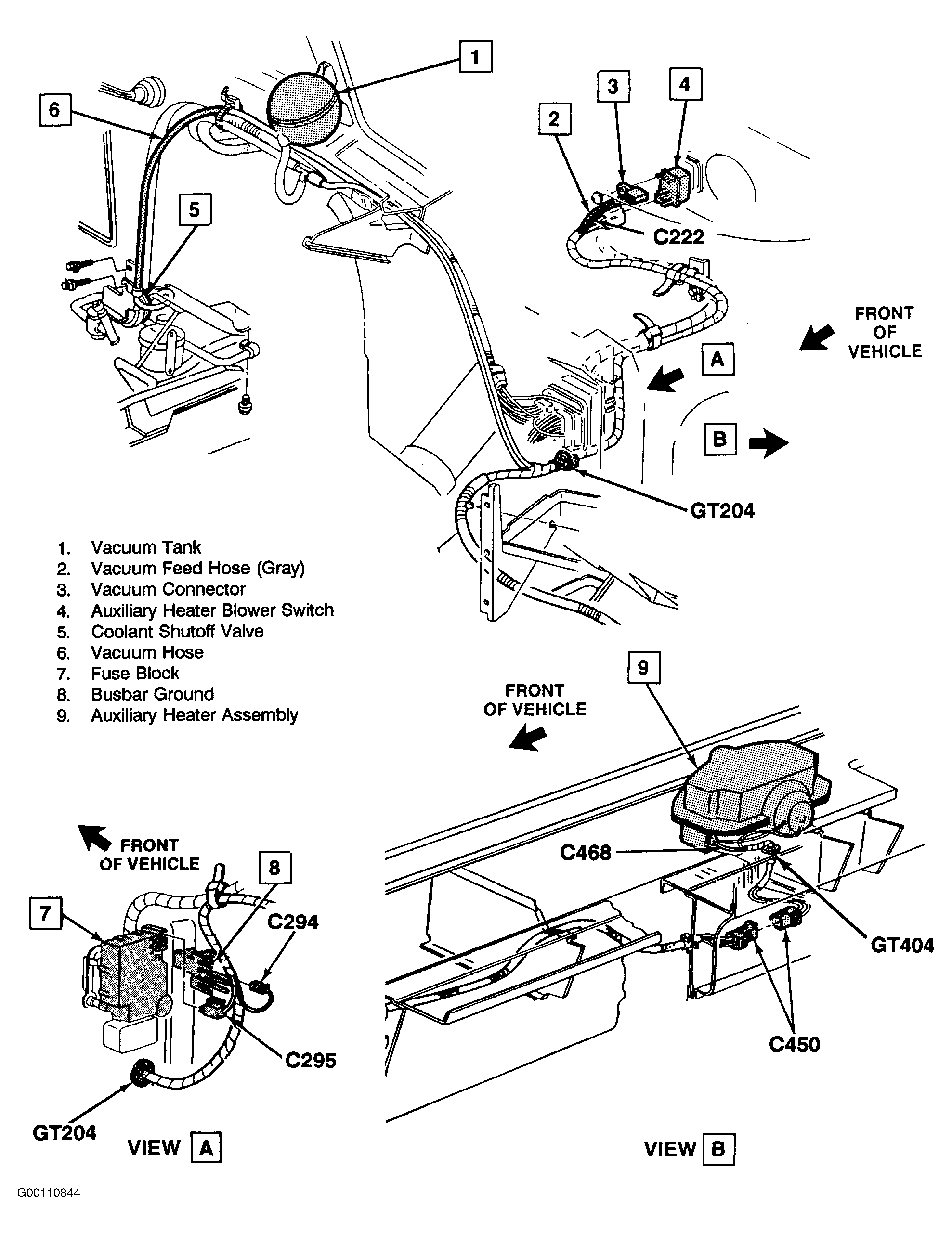

Busbar Ground	Near Fuse Block. See Fig 1 .

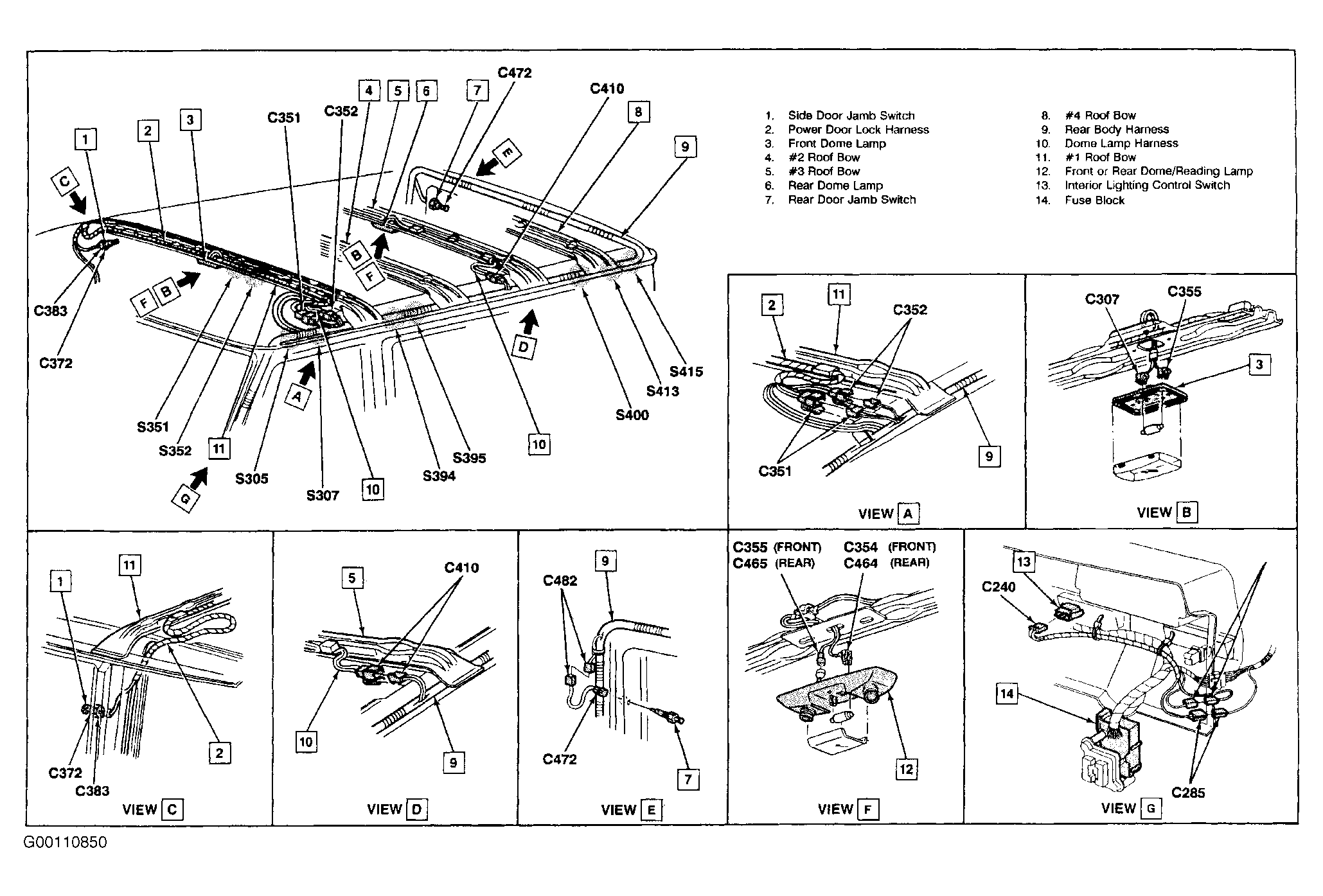

Contact Buttons	At Rear Of Right B-Pillar. See Fig 2 .
Door Lock Delay Module	Behind Instrument Panel, Right Side Of Steering Column. See Fig 3 .
Door Lock Delay Relay	Behind Left Side Of Instrument Panel. See Fig 3 .

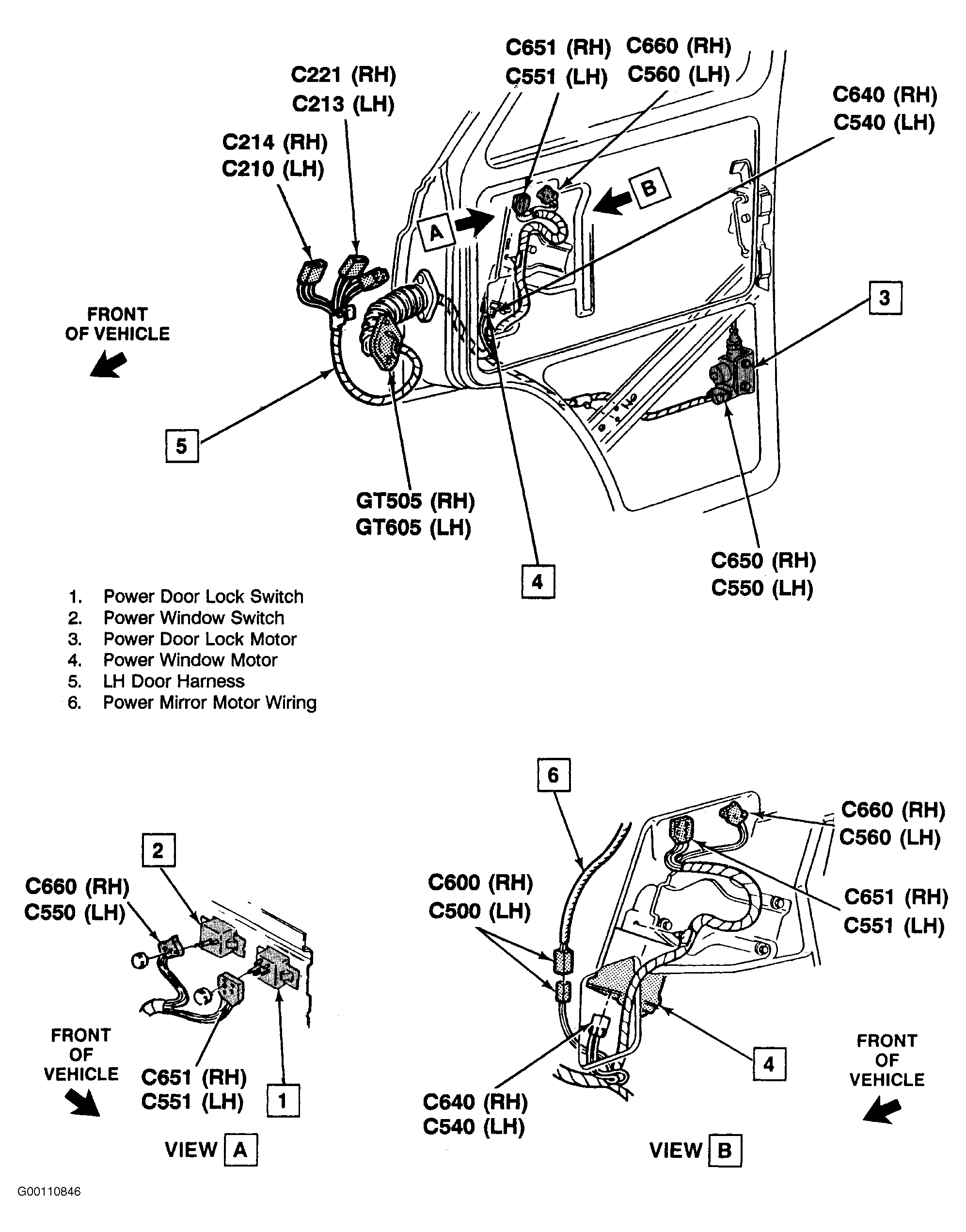

Door Lock Motor, Left Front	In Left Door. See Fig 4 .
Door Lock Motor, Right Front	In Right Door. See Fig 4 .

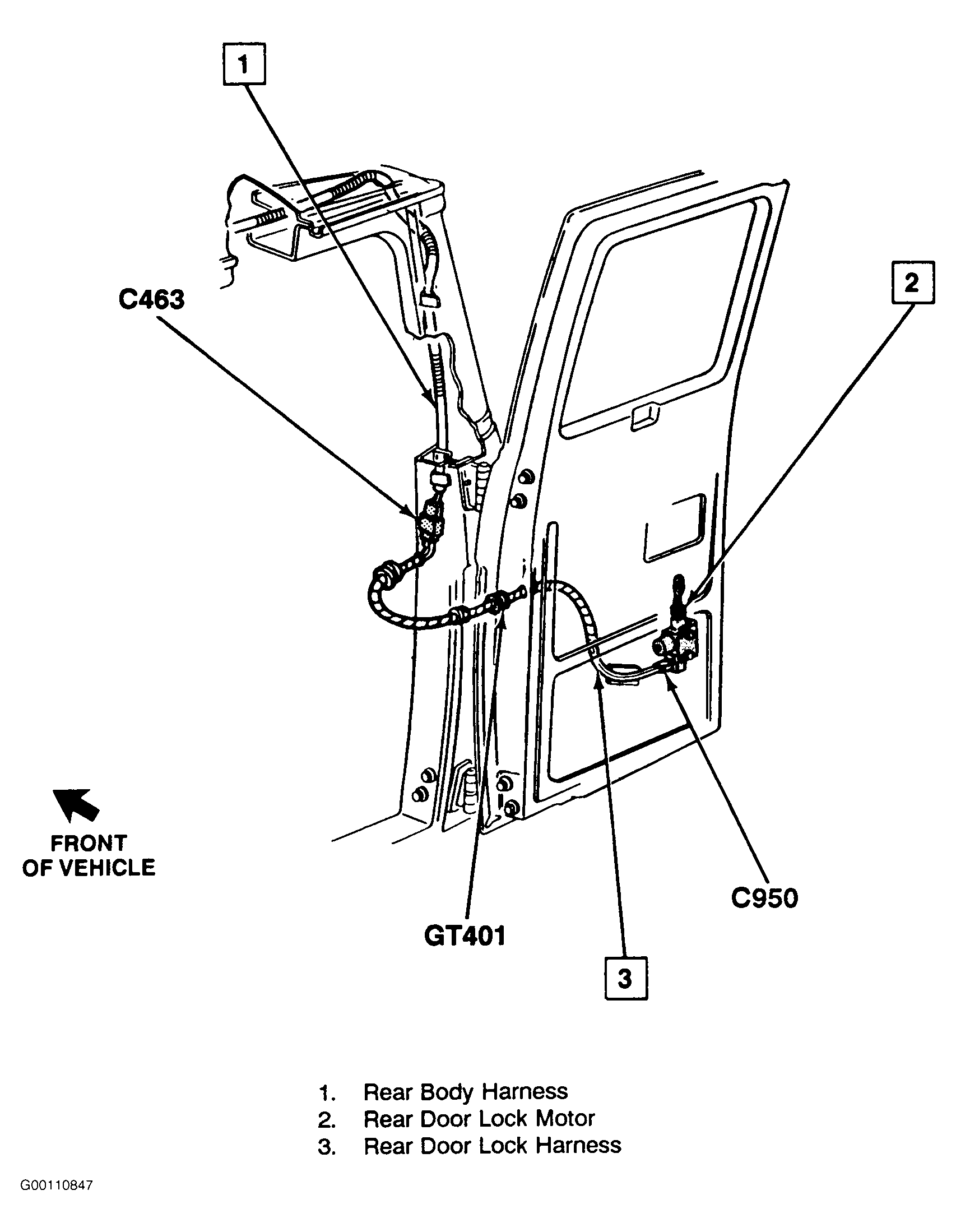

Door Lock Motor, Rear	In Rear Door. See Fig 5 .
Door Lock Motor, Side	In Side Door. See Fig 2 .
Door Lock Relay	Behind Left Side Of Instrument Panel. See Fig 3 .
Door Lock Switch	In Door Trim Panel. See Fig 4 .

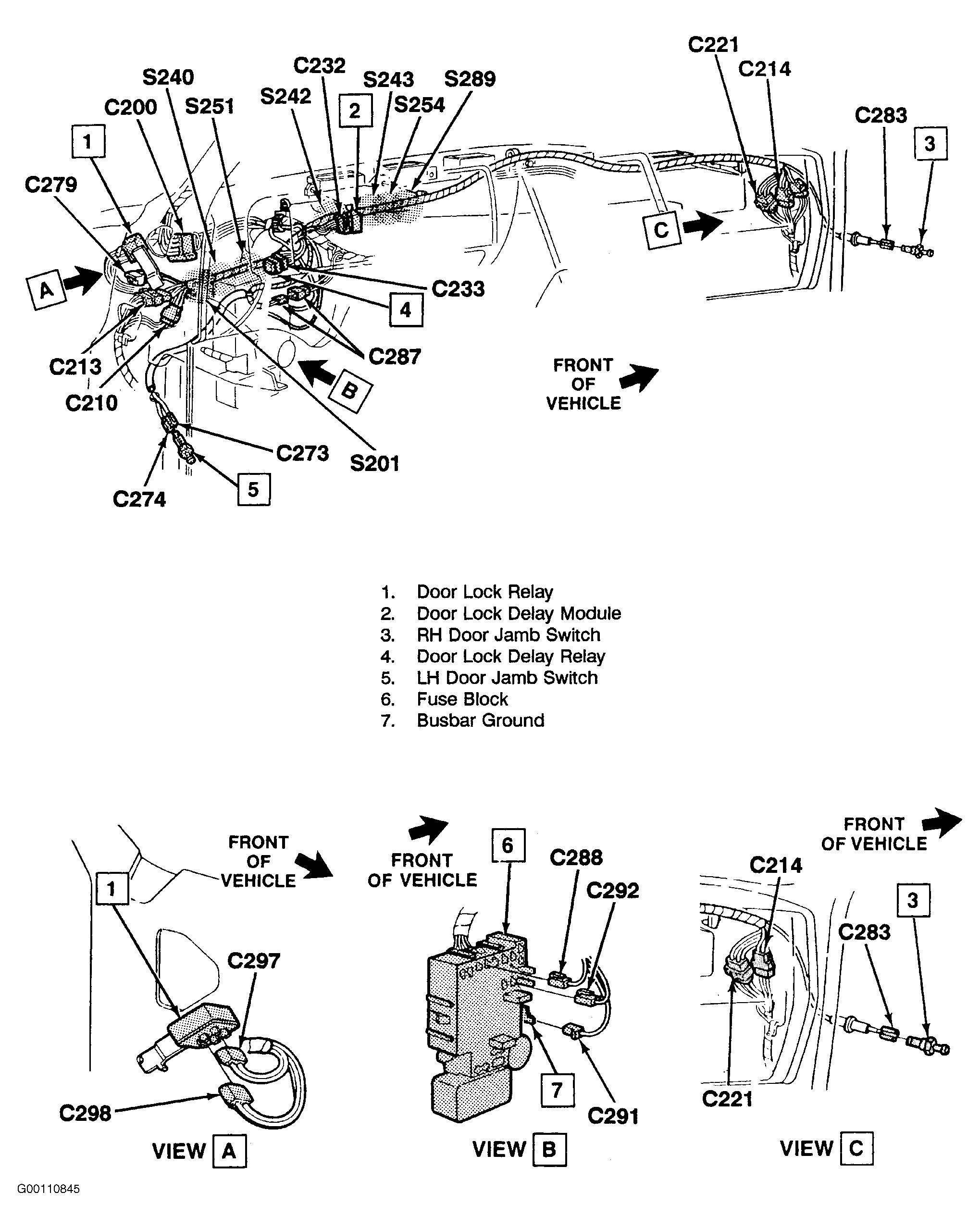

Fuse Block	Behind Left Side Of Instrument Panel. See Fig 6 .
C213	Inside Left Side Of Cowl Panel. See Fig 3 .
C221	Inside Right Side Of Cowl Panel. See Fig 3 .
C232	At Power Door Lock Delay Module. See Fig 3 .
C233	At Power Door Lock Delay Module. See Fig 3 .
C279	Inside Left Side Of Cowl. See Fig 3 .
C291	At Busbar Ground. See Fig 3 .
C292	At Fuse Block. See Fig 3 .
C298	At Power Door Lock Relay. See Fig 3 .
C340	At Sliding Door Jamb Contact Switch. See Fig 2 .
C341	At Sliding Door Jamb Contact Switch. See Fig 2 .

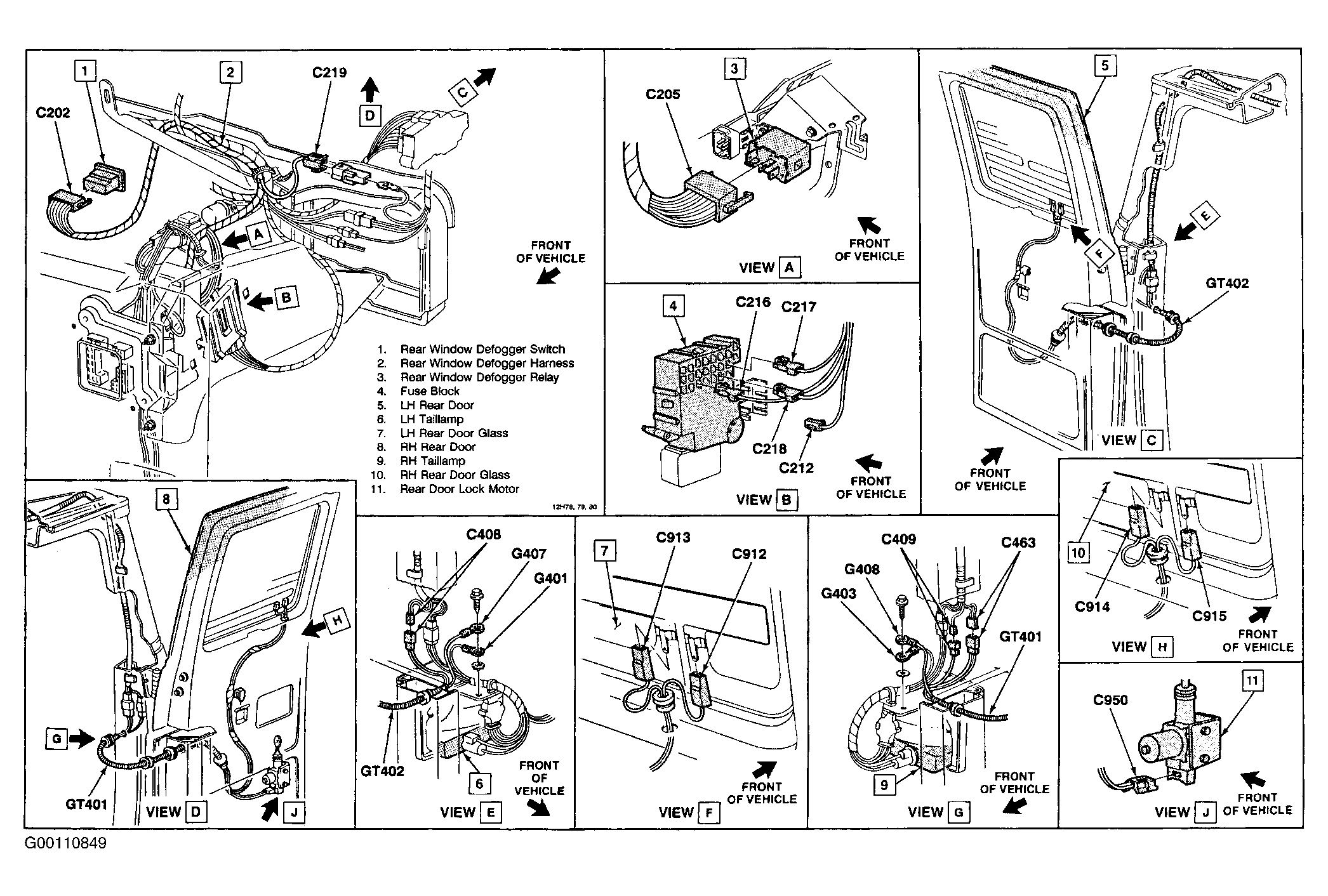

C351	Left Side Of Roof Panel, Near No. 1 Roof Bow. See Fig 7 .
C362	Inside Lower Right B-Pillar. See Fig 2 .
C463	Behind Right Rear Door Jamb. See Fig 5 .
C851	Inside Sliding Door. See Fig 2 .
C852	Inside Sliding Door. See Fig 2 .

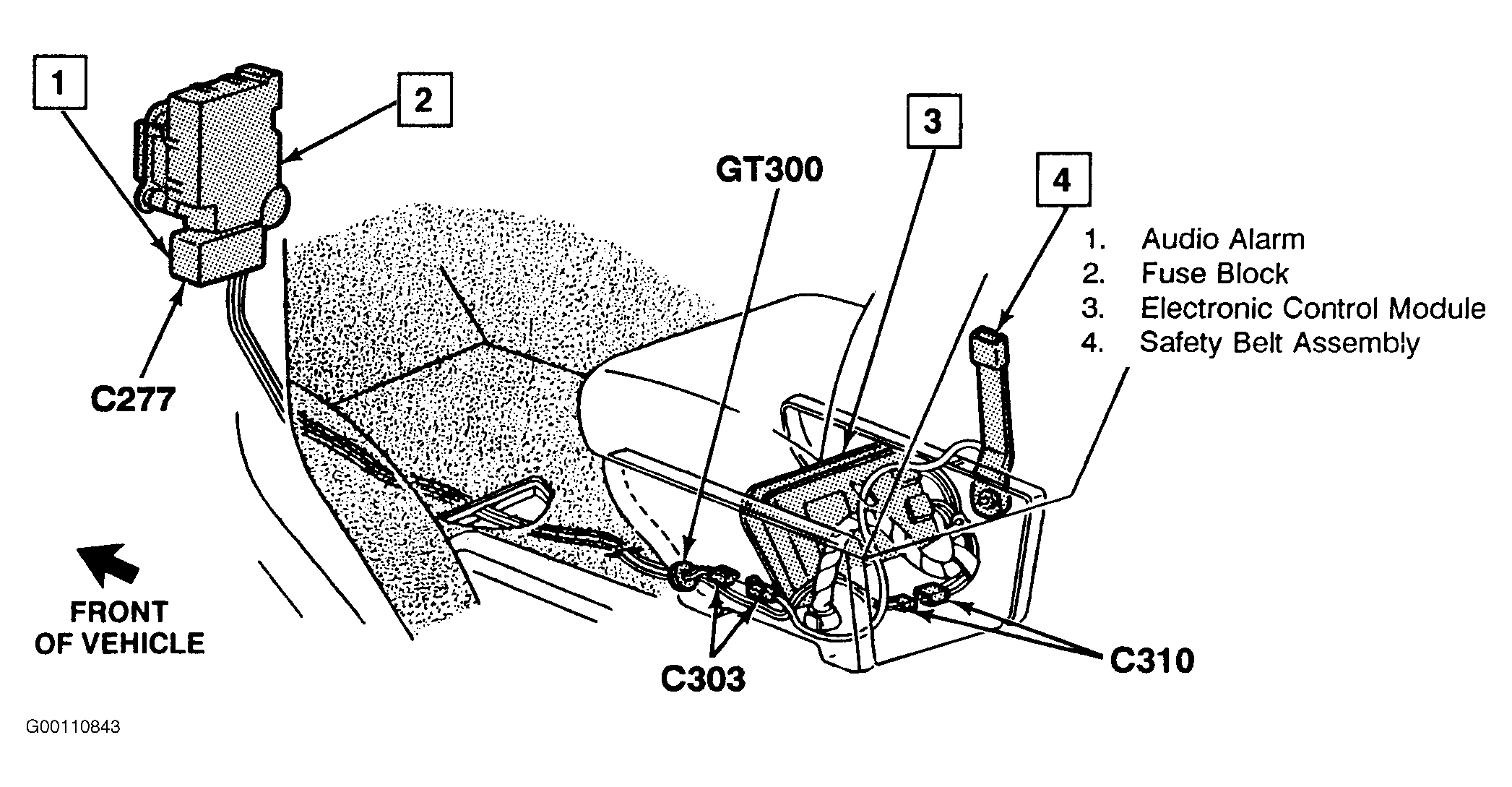

GT402	At Left Rear Door. See Fig 8 .
GT505	On Left Front Door. See Fig 4 .
GT605	On Right Front Door. See Fig 4 .
GT903	At Right Rear Door.
S240	Left Side Of Instrument Panel, Above Fuse Block. See Fig 3 .
S242	Right Side Of Steering Column, Near Power Door Lock Delay Module. See Fig 3 .
S243	Right Side Of Steering Column, Near Power Door Lock Delay Module. See Fig 3 .
S251	Left Side Of Instrument Panel, Above Fuse Block. See Fig 3 .
S394	In Body Wiring Harness, Near No. 2 Roof Bow. See Fig 7 .
S395	In Body Wiring Harness, Near No. 2 Roof Bow. See Fig 7 .
