Test A: Neither Mirror Is Operational

NOTE: If neither mirror is operational, see Fig 1 .

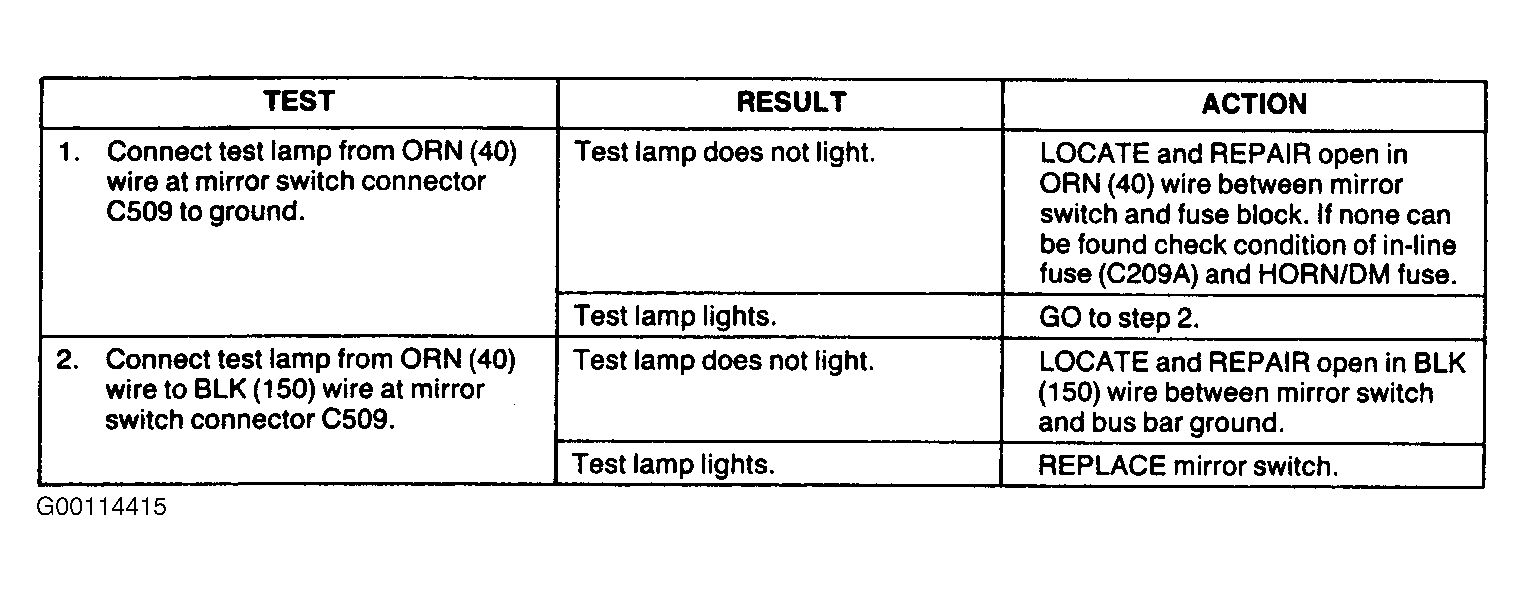

Fig 1: Test A: Neither Mirror Is Operational

G00114415

Courtesy of GENERAL MOTORS CORP.
