Home >> GMC >> 1989 >> Magnavan 6.2 J, 400/M40 >> Repair and Diagnosis >> Engine Performance >> System >> CCC TBI Tests W/Codes >> Diagnostic Charts >> ECM QDR (Quad-Driver) Check

ECM QDR (Quad-Driver) Check

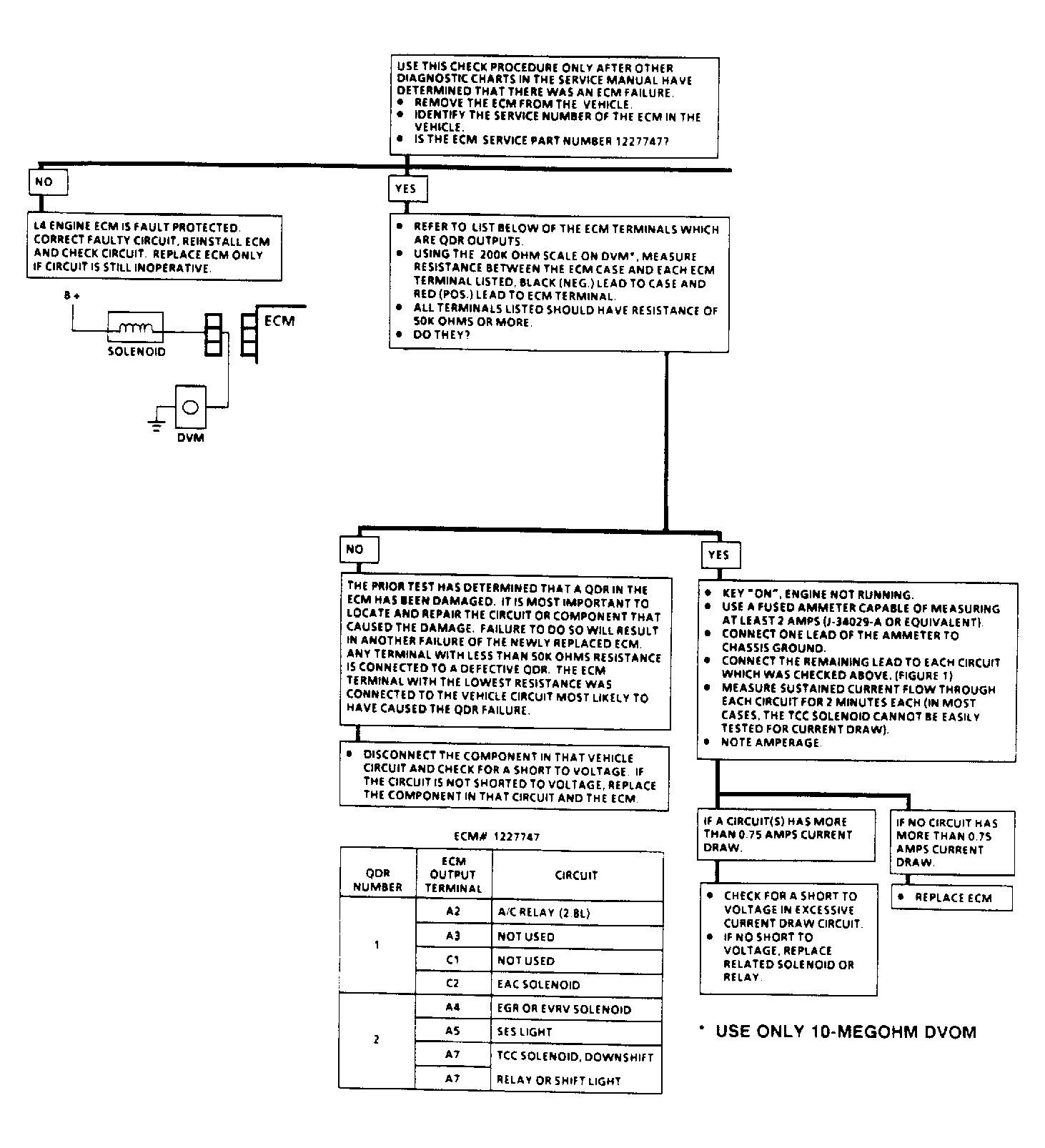

Fig 1: ECM QDR (Quad-Driver) Check

G120837
