7.4L "Service Engine Soon" Light Illuminated Flow Chart

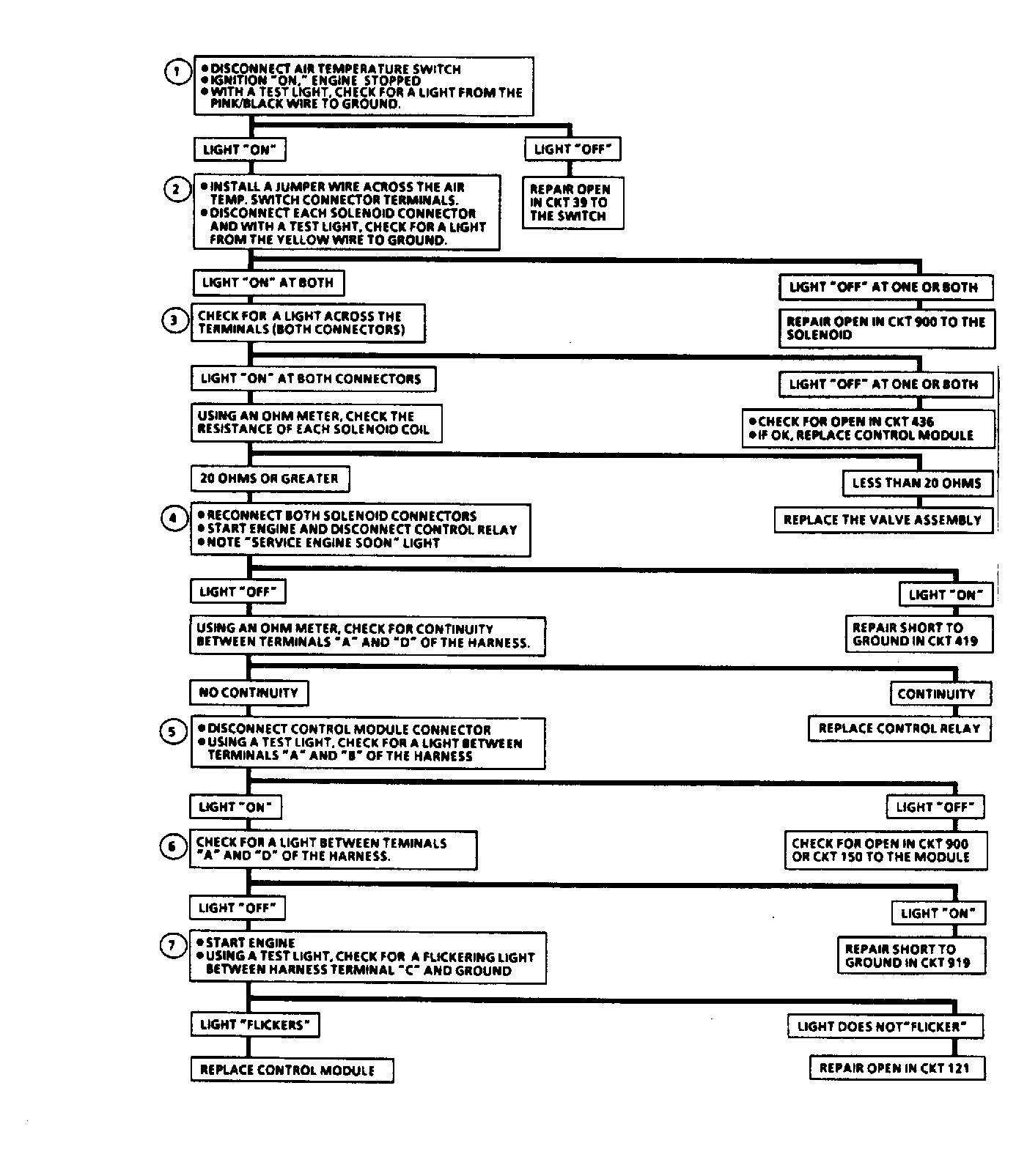

Fig 1: "SERVICE ENGINE SOON" Light Illuminated 7.4L Flow Chart

G12661

Courtesy of GENERAL MOTORS CORP.
