GMC
>>
1989
>>
Forward Control 4.8 T, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System - HEI/Est/ESC
>>
Wiring Diagrams
Wiring Diagrams

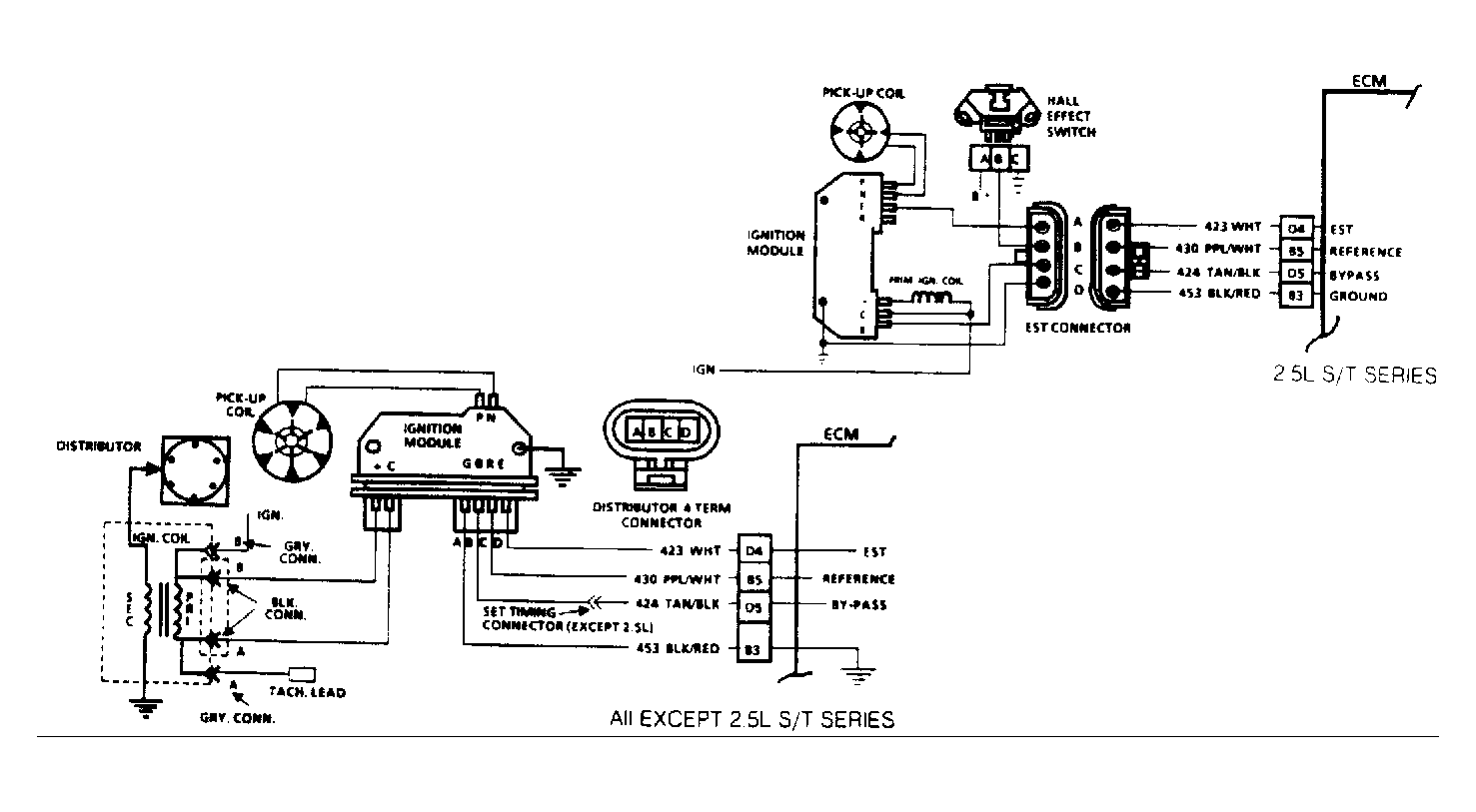

Fig 1: HEI/EST Ignition System Wiring Diagram (Includes Hall Effect Variant On 2.5L)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
