Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|

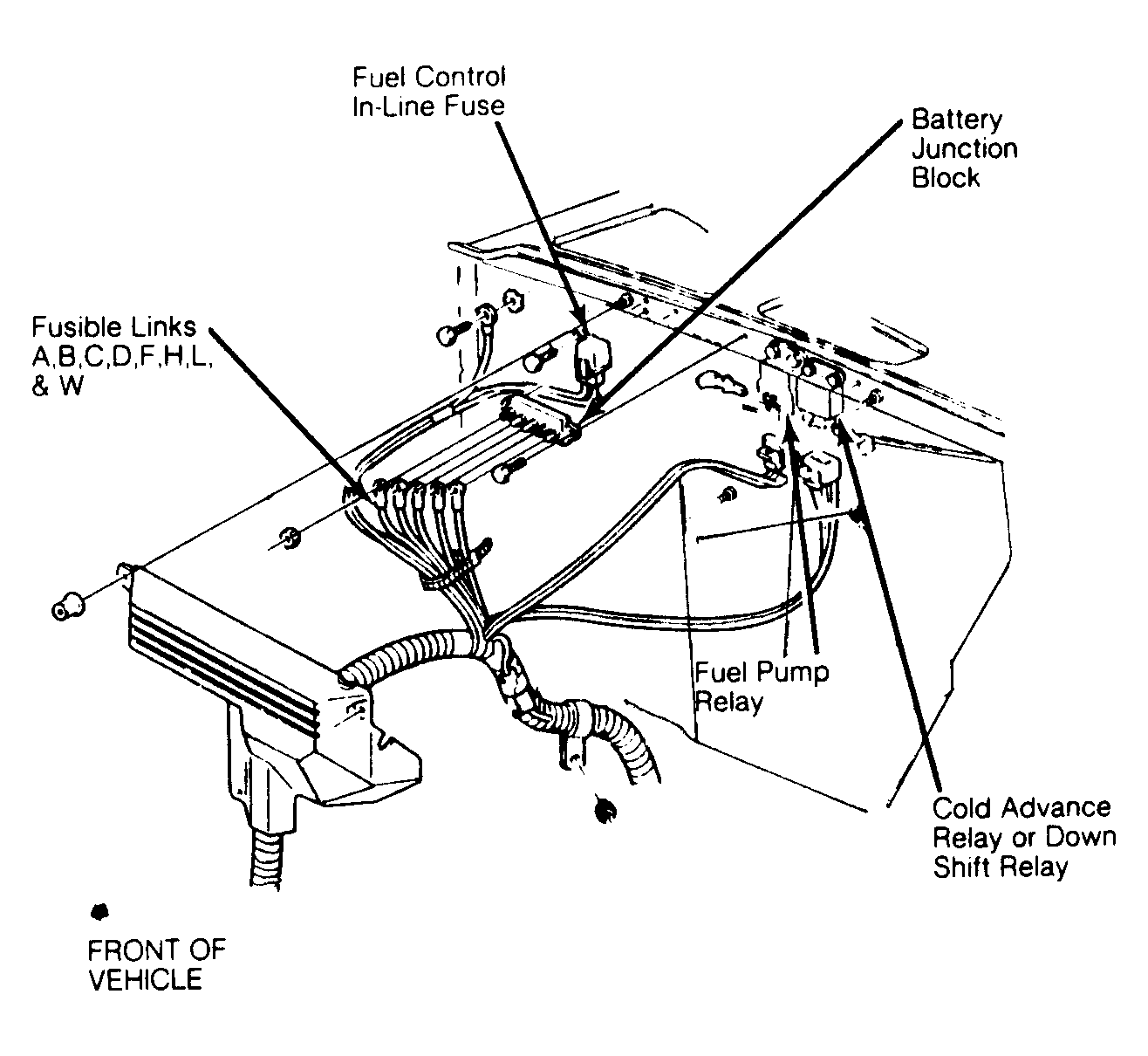

| Fuel Control In-Line Fuse | On right side of firewall, behind battery junction block cover. See Figure . | |
| Fuse Block | Under left side of dash, above kick panel. | |
| Fusible Links | ||
| A (Blue) Charging System | On battery junction block, on right side of firewall. See Figure . | |
| B (Blue) A/C Controls | On battery junction block, on right side of firewall. See Figure . | |
| C (Black) Fuse Block | On battery junction block, on right side of firewall. See Figure . | |
| D (Black) Ignition Switch | On battery junction block, on right side of firewall. See Figure . | |
| E (Blue) Glow Plug Controller Relay | On glow plug controller relay, on top of engine, at right rear. | |
| F (Gray) ECM | On battery junction block, on right side of firewall. See Figure . | |
| H (Gray) Coolant Fan Relay | On battery junction block, on right side of firewall. See Figure . | |
| K (Blue) Downshift Relay | On battery junction block, on right side of firewall. | |
| L (Rust) Auxiliary Battery | On battery junction block, on right side of firewall. | |
| M (Rust) Auxiliary Battery | On left side battery positive terminal. | |
| N (Blue) Right Side Battery (Diesel Engine) | On right side battery positive terminal. | |
| Power Door Lock Circuit Breaker | On fuse block. | |
| Power Window Circuit Breaker | On fuse block. | |
