EXPERTEC TSB (88-T-109)

Publication date: 1988-06-02
Reference number: 88-T-109

EXPERTEC TSB

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 88-T-109, Date of Issue:  06/02/88

REVISED PROMS/DRIVEABILITY FALSE SERVICE ENGINE SOON

GMC 88-T-109

06/02/1988

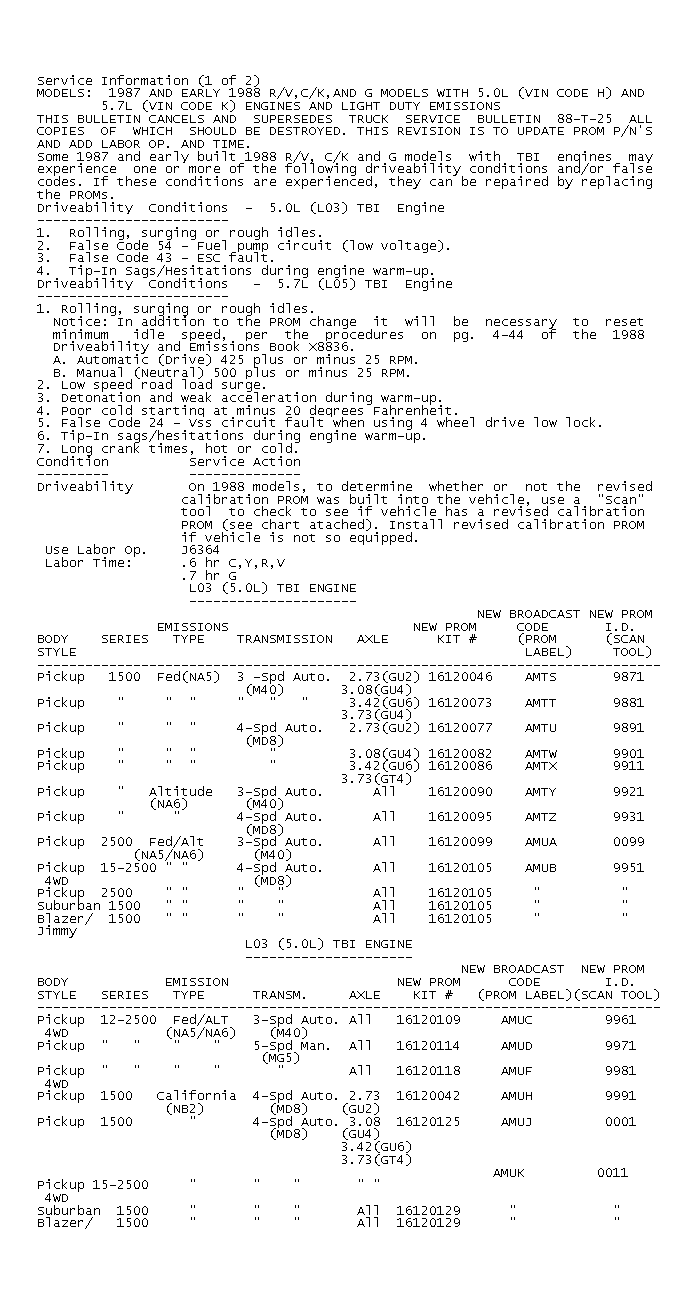

Fig 1: Service Information (1 of 2)
GB0038684

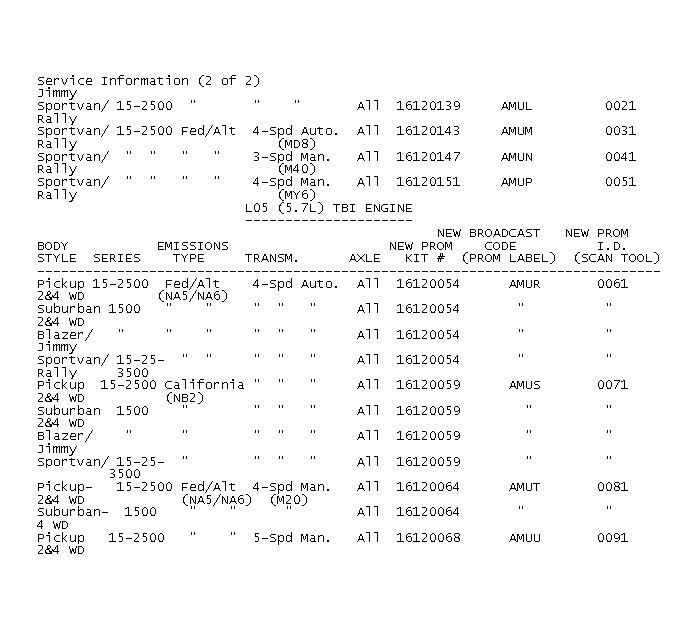

Fig 2: Service Information (2 of 2)
GB0038685
