ECM Terminal Identification

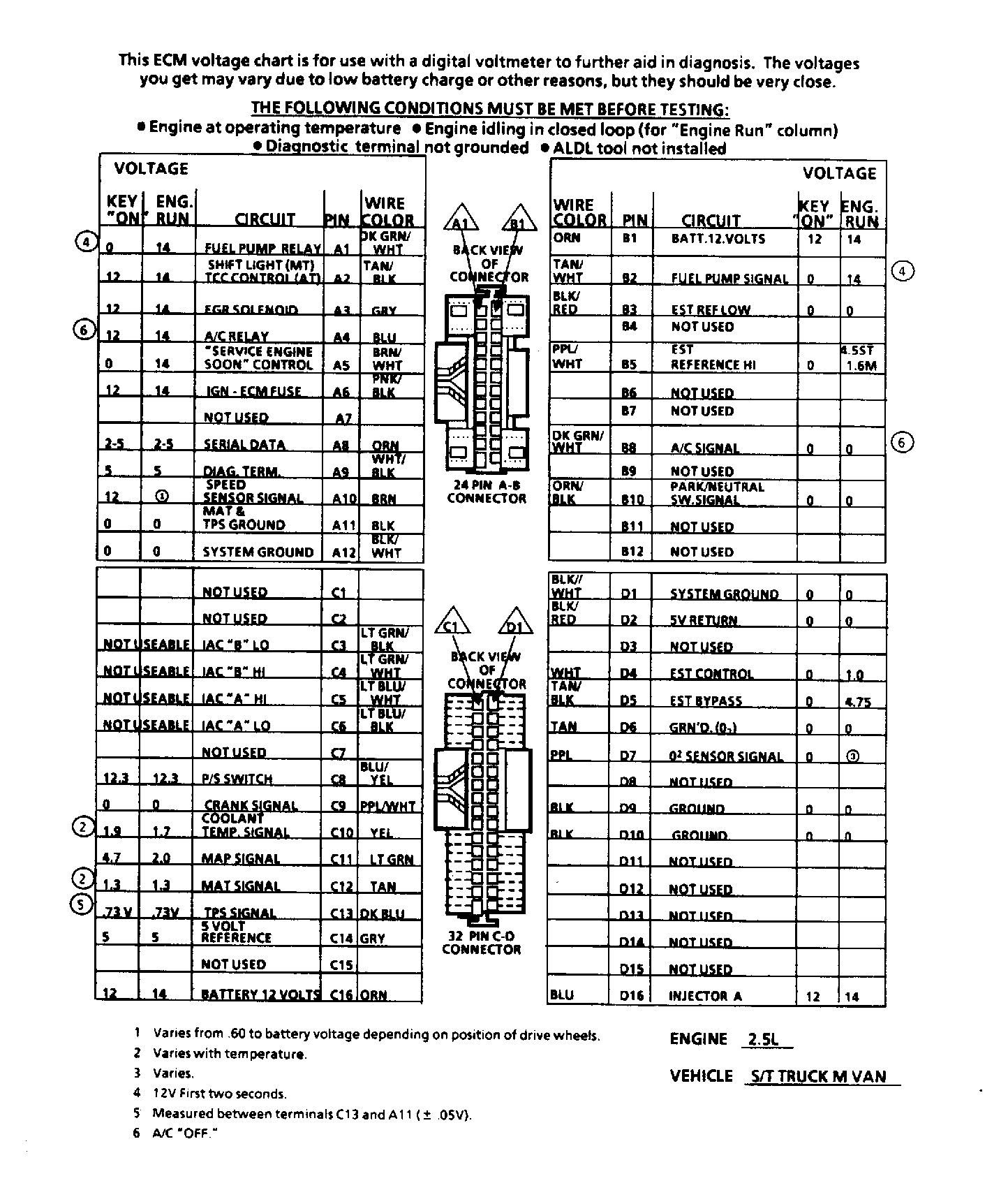

Fig 1: ECM Terminal ID & Voltage Values (2.5L)

G120867

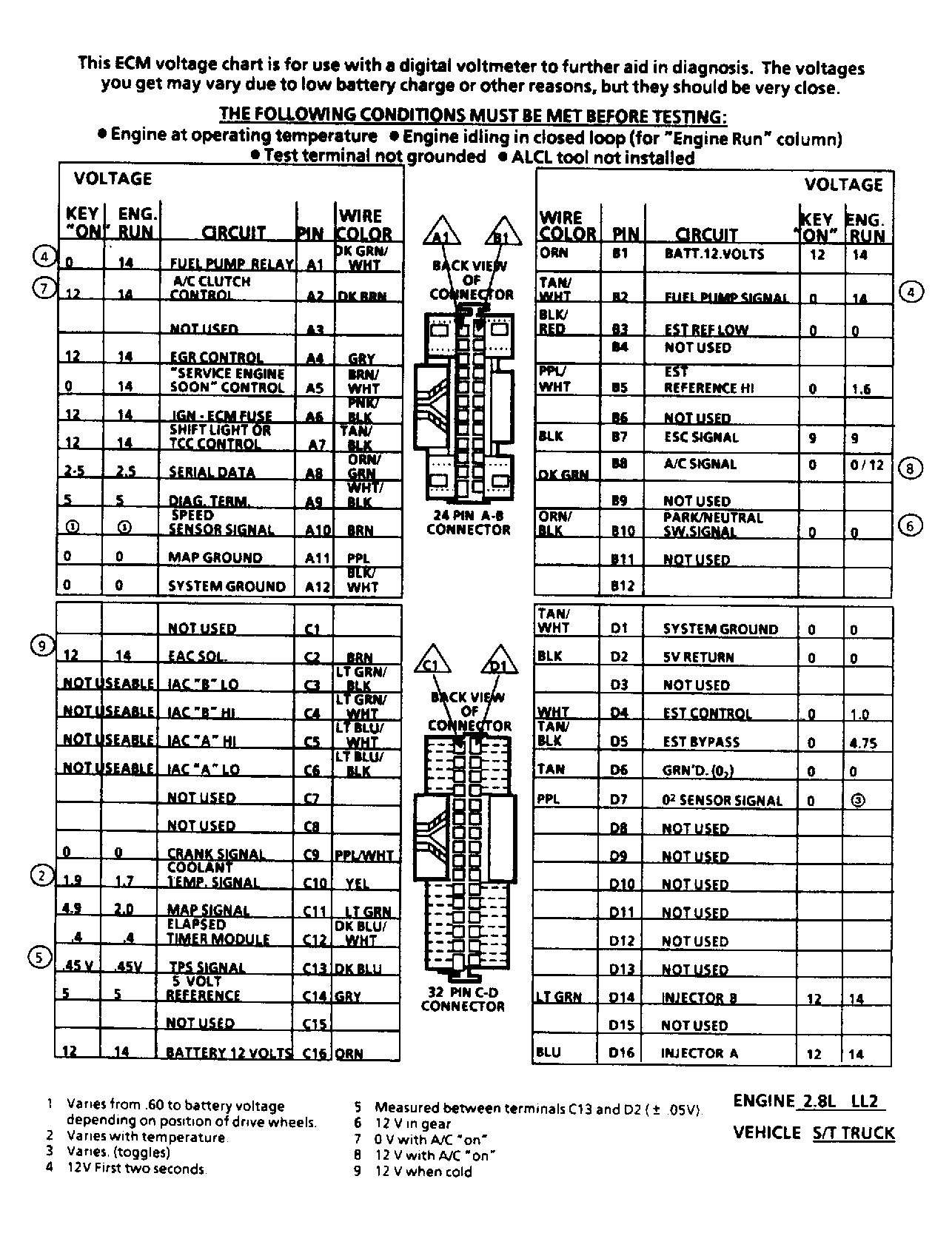

Fig 2: ECM Terminal ID & Voltage Values (2.8L)

G120868

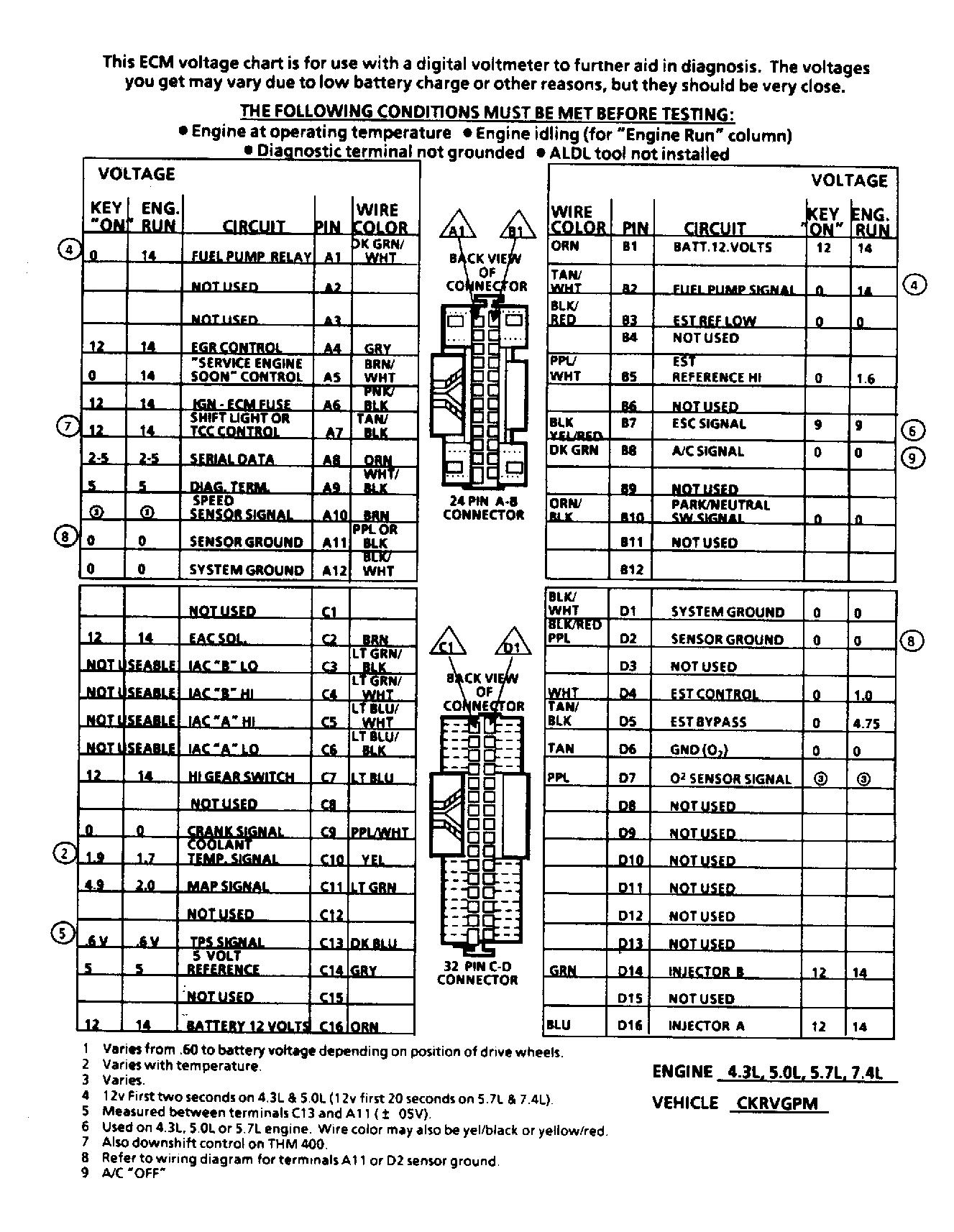

Fig 3: ECM Terminal ID & Voltage Values (4.3L, 5.0L, 5.7L & 7.4L)

G120869
