EXPERTEC TSB (86-B-101)

WARNING: This page is about the Magnavan 5.7 M, 400/M40, which is a different variant/trim than selected.
Publication date: 1986-07-17
Reference number: 86-B-101

EXPERTEC TSB

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 86-B-101, Date of Issue:  07/17/86

DIAGNOSTIC EQUIPMENT FOR - DRIVEABILITY DIAGNOSIS

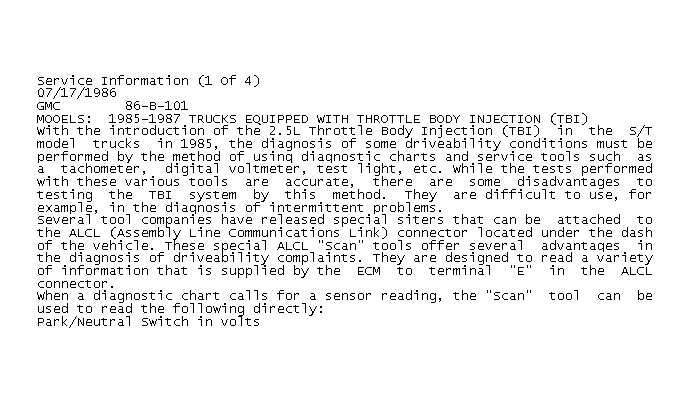

Fig 1: Service Information (1 Of 4)
GB0038543

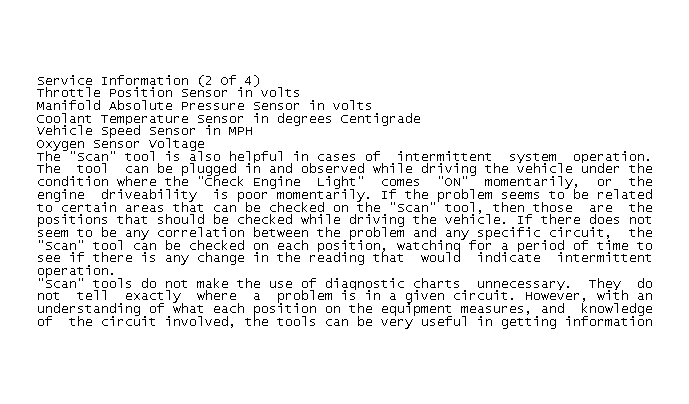

Fig 2: Service Information (2 Of 4)
GB0038544

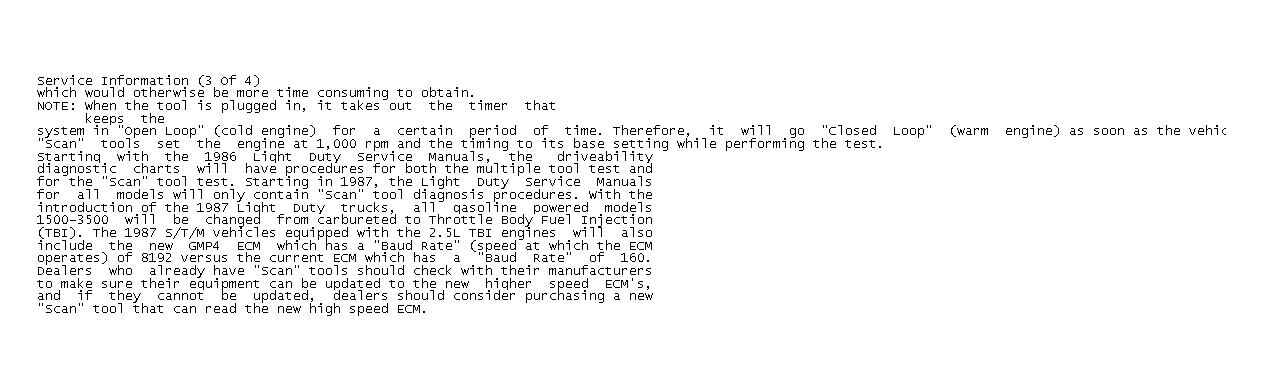

Fig 3: Service Information (3 Of 4)
GB0038545

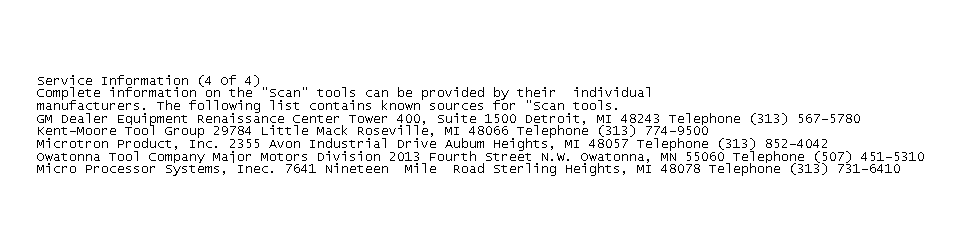

Fig 4: Service Information (4 Of 4)
GB0038546
