Chart C9C: EFE System Check-With TVS
Chart C9C: EFE System Check-With TVS

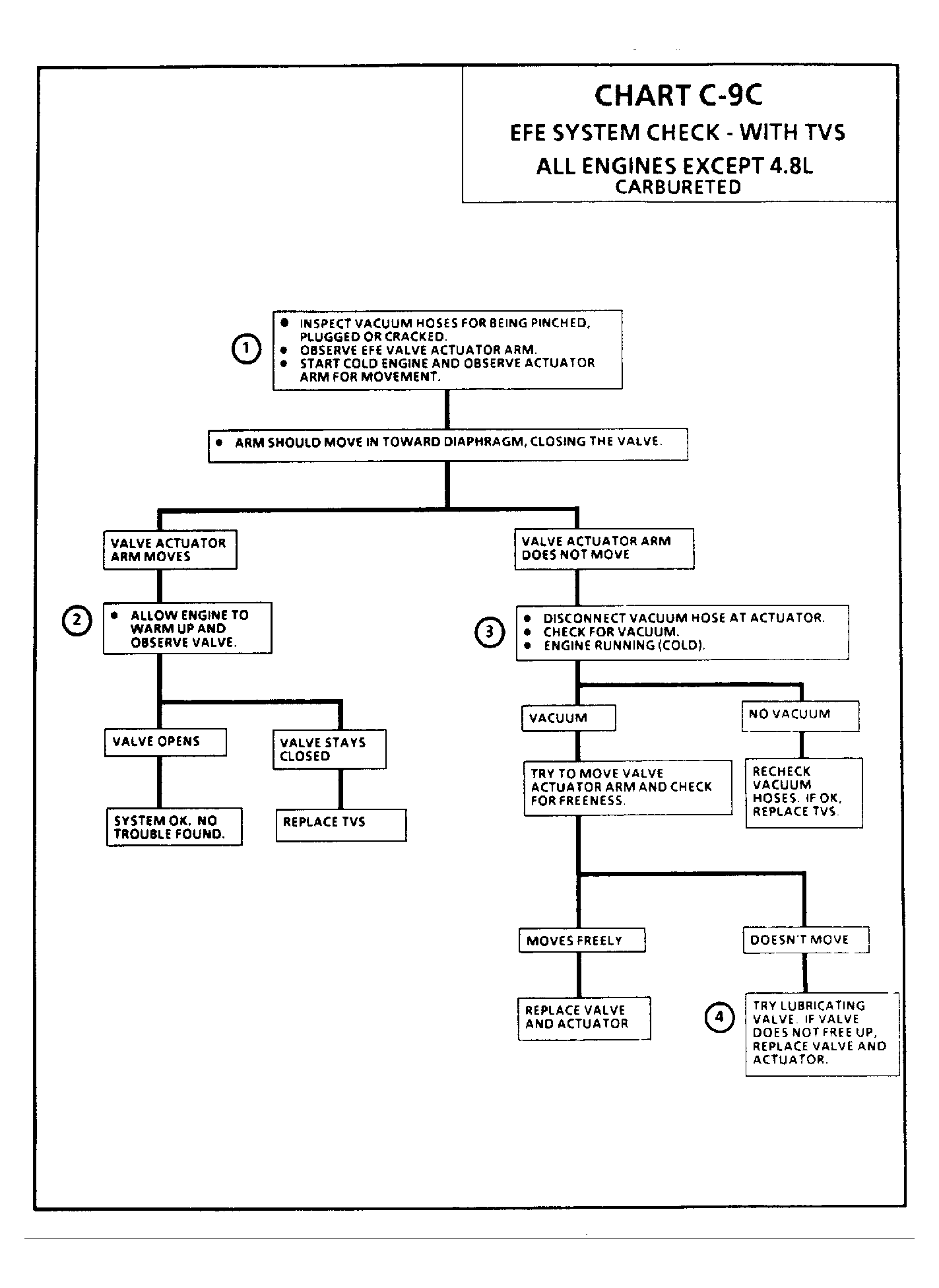

Fig 1: Chart C9C, EFE System Check-With TVS
